3: Functions and features Model 2461 Interactive SourceMeterĀ® Instrument
3-12 2461-901-01 A/November 2015
Using the front panel to set fill mode:
1. Press the MENU key.
2. Under Measure, select Reading Buffers. The MANAGE READING BUFFERS window is
displayed.

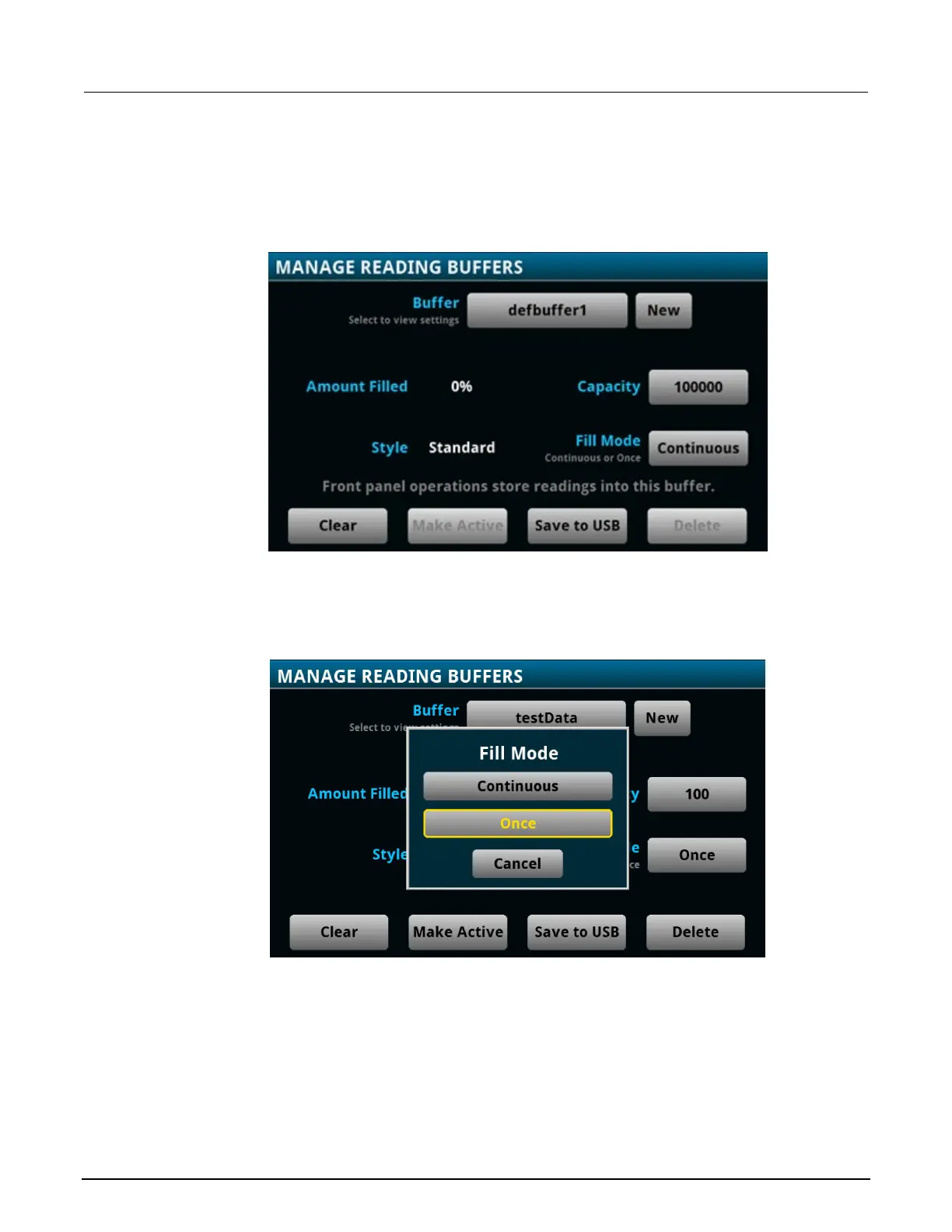

Figure 94: MANAGE READING BUFFERS window
3. Select a reading buffer from the list. For example, select testData. The settings for testData
are displayed.
4. Select the Fill Mode option.
Figure 95: Fill Mode menu
5. Press the HOME key to return to the Home screen.
