Keithley 2461 Reference Manual

Model 2461
Interactive SourceMeter® Instrument Reference Manual Section 7:
Introduction to TSP operation
2461-901-01 A/November 2015 7-31

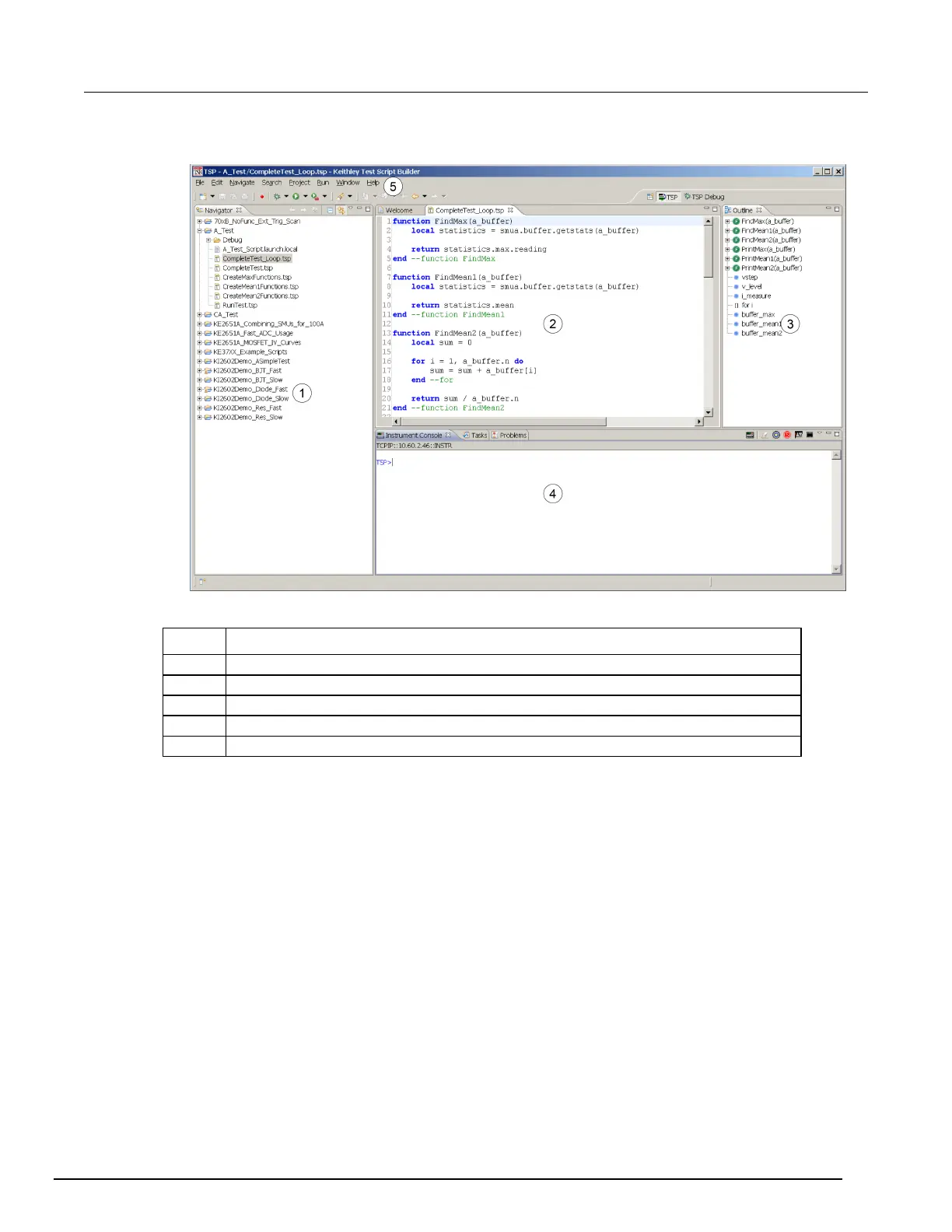

Figure 162: Example of the Test Script Builder workspace
Item Description
1
Project navigator
2
Script editor; right-click to run the script that is displayed
3
Outline view
4
Programming interaction
5
Help; includes detailed information on using Test Script Builder
Project navigator
The project navigator consists of project folders and the script files (.tsp) created for each project.
Each project folder can have one or more script files.
To view the script files in a project folder, click the plus (+) next to the project folder. To hide the folder
contents, click the minus (−) next to the project folder.
You can download a TSP project to the instrument and run it, or you can run it from the TSB
interface.
