Keithley 2461 Reference Manual

Section
4: Source-measure considerations Model 2461 Interactive SourceMeter® Instrument
Reference Manual
4-12 2461-901-01 A/November 2015
Safety shielding
Use #16 AWG wire or larger for connections to safety earth ground and chassis.

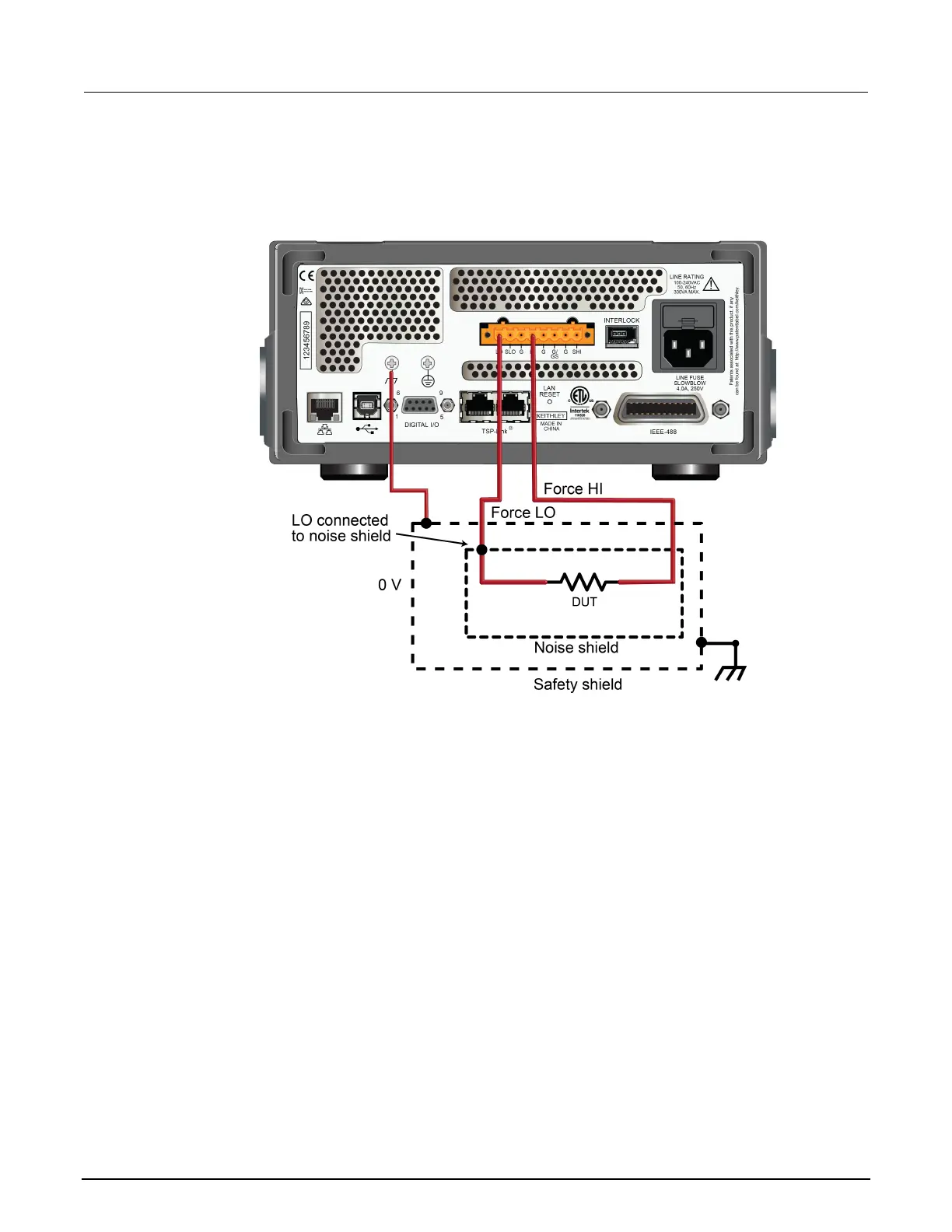

Figure 152: Model 2461 rear-panel safety shield
Grounding
Noise and chassis ground
Using the chassis as a ground point for signal connections to the Model 2461 chassis may result in
different levels of noise, depending on your setup. If the Model 2461 common-mode current is
channeled to the chassis instead of the device, the tie point to the chassis can help quiet
measurements. However, if other equipment is connected to the chassis, you may have more noise
because of other connected equipment.
If you choose to use the chassis as a ground point for signal connections, use the Model 2461
chassis screw as a connection point.

Keithley 2461 Specifications

General

Maximum Current	7 A
Power	100 W
Resolution	6.5 digits
Source Measure Unit (SMU)	Yes
DC Voltage	100 V
Maximum Voltage	100 V
Display	5-inch capacitive touchscreen
Connectivity	USB, GPIB
Software	TSP
DC Current	7 A
Current Source Range	0 to 7 A
Voltage Measurement Range	100 mV to 100 V
Current Measurement Range	10 nA to 7 A
Voltage Measurement Resolution	100 nV
