Keithley 2461 Reference Manual

Model 2461
Interactive SourceMeter® Instrument Reference Manual Section 2:
General operation
2461-901-01 A/November 2015 2-13
Screen descriptions
The following topics describe the screens and options that you can view on the Model 2461
front-panel display.
Home screen
This is the default screen that you see whenever you turn the Model 2461 on or when you press the
HOME key. The options available on the Home screen are described in the following topics.

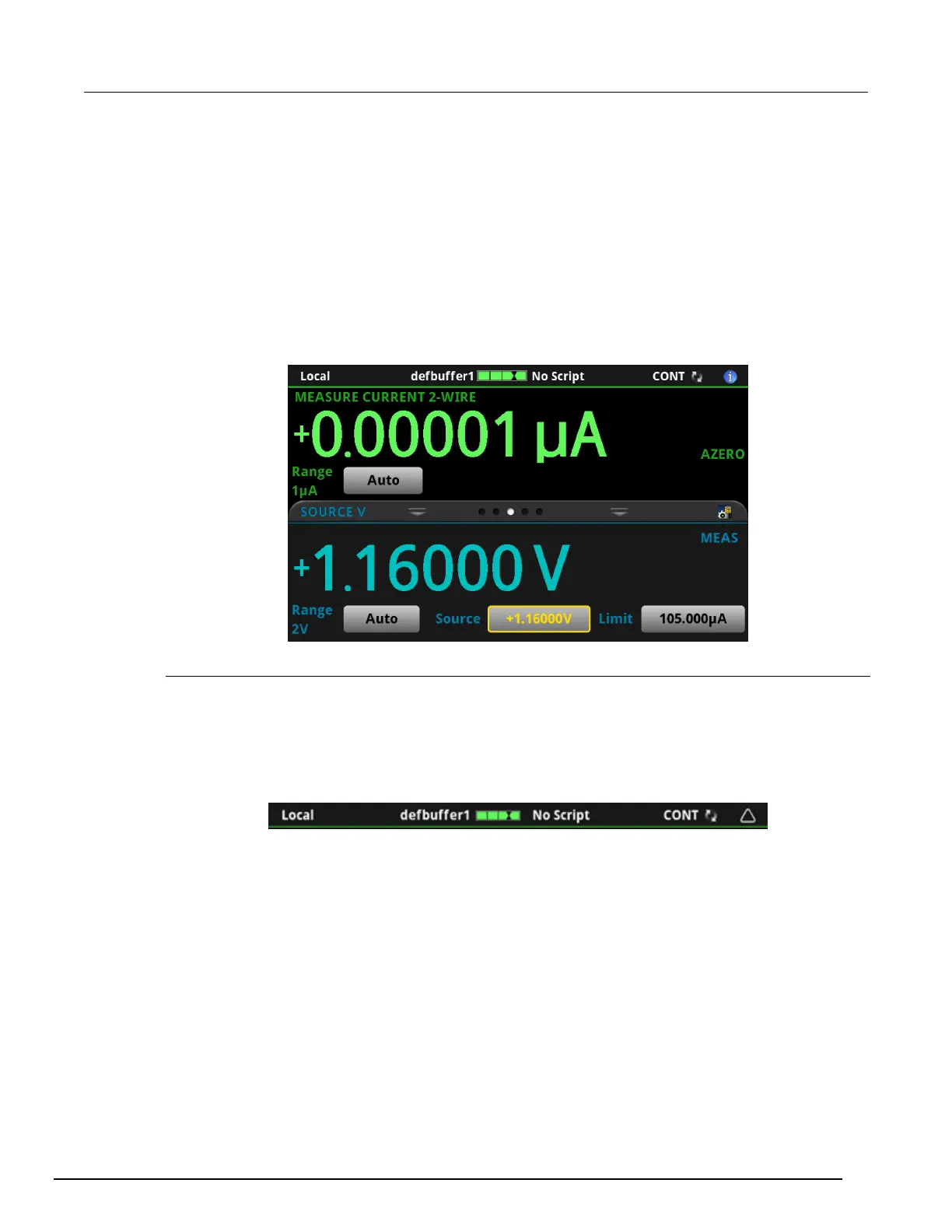

Figure 7: Model 2461 Home screen
Status and event indicators
The indicators at the top of the Home screen contain information about instrument settings and
states. Some of the indicators also provide access to instrument settings.
Press an indicator to get more information about the present state of the instrument. You can also
select the indicators by turning the navigation control to select an indicator and then pressing ENTER.
Figure 8: Home screen status bar

Keithley 2461 Specifications

General

Maximum Current	7 A
Power	100 W
Resolution	6.5 digits
Source Measure Unit (SMU)	Yes
DC Voltage	100 V
Maximum Voltage	100 V
Display	5-inch capacitive touchscreen
Connectivity	USB, GPIB
Software	TSP
DC Current	7 A
Current Source Range	0 to 7 A
Voltage Measurement Range	100 mV to 100 V
Current Measurement Range	10 nA to 7 A
Voltage Measurement Resolution	100 nV
