Keithley 2461 Reference Manual

Section
3: Functions and features Model 2461 Interactive SourceMeter® Instrument
Reference Manual
3-68 2461-901-01 A/November 2015
Pulse rise and fall times
The pulse rise time is the time it takes a pulse to go from 10 percent to 90 percent of the maximum
value of the pulse. Pulse fall time is similar but on the trailing edge of the pulse. Pulse rise and fall
times can vary depending on the following factors:
• Cable specifications and connection configuration
• Range and pulse settling
• Load and operating mode
• Limits

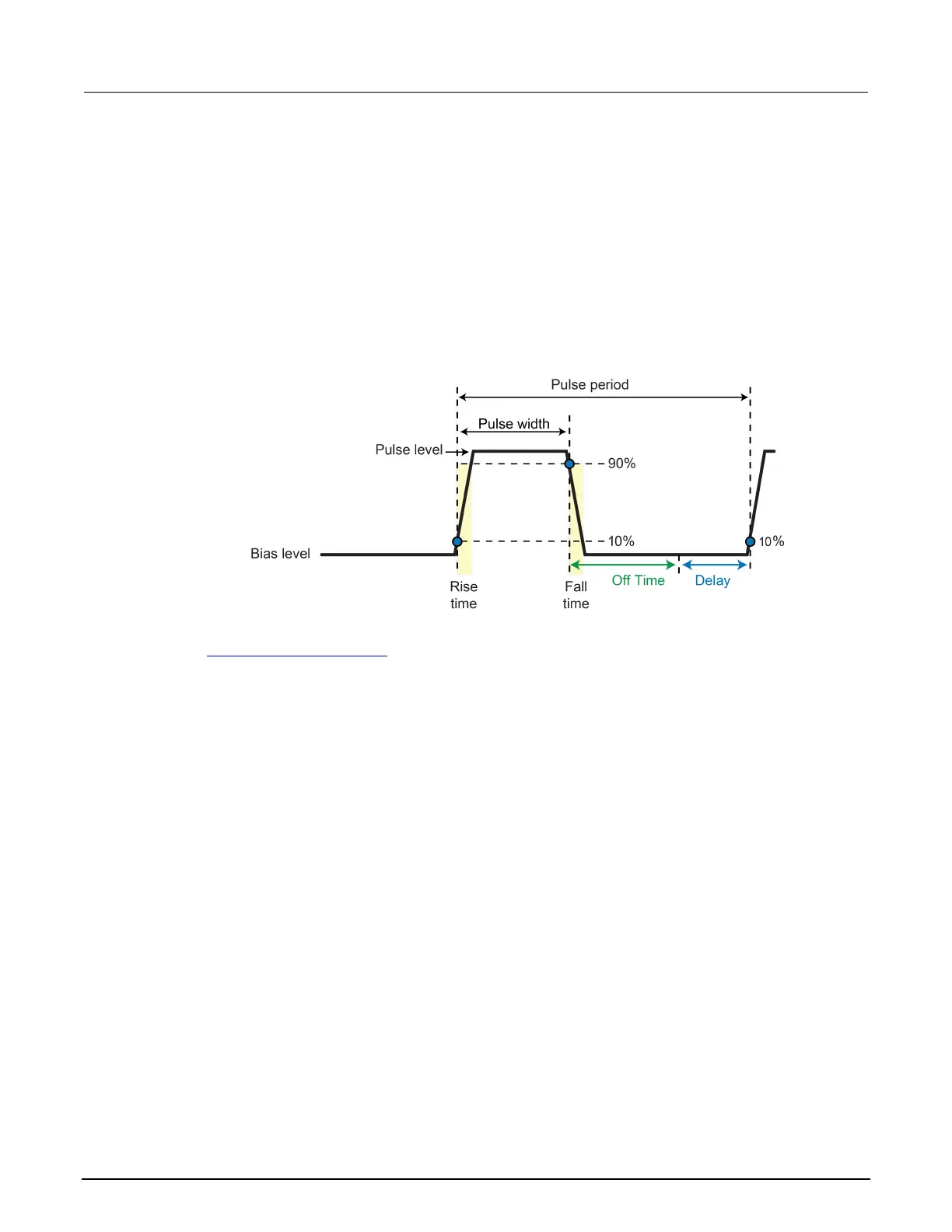

Figure 121: Pulse rise and fall times
For details on source settling times, see the Model 2461 specifications. For the latest specifications,
go to www.keithley.com/support (http://www.keithley.com/support).
Pulse duty cycle
Duty cycle is the percentage of time during the pulse period that the output is on. It is calculated using
the following formula:
Duty cycle = Pulse width / (Pulse width + (Delay + Off time))
For example, if the pulse width is 10 ms and the delay and off time together are 90 ms, the duty cycle
is calculated as follows:
Duty cycle
= 10 ms / (10 ms + 90 ms)
= 10
ms / 100 ms
= 0.10
= 10 percent
Maximum pulse duty cycle for the Model 2461 is 10 percent for the 20 V and lower ranges, and 5
percent for the 100 V range.

Keithley 2461 Specifications

General

Maximum Current	7 A
Power	100 W
Resolution	6.5 digits
Source Measure Unit (SMU)	Yes
DC Voltage	100 V
Maximum Voltage	100 V
Display	5-inch capacitive touchscreen
Connectivity	USB, GPIB
Software	TSP
DC Current	7 A
Current Source Range	0 to 7 A
Voltage Measurement Range	100 mV to 100 V
Current Measurement Range	10 nA to 7 A
Voltage Measurement Resolution	100 nV
