2: General operation Model 2461 Interactive SourceMeter® Instrument
Reference Manual
2-4 2461-901-01 A/November 2015

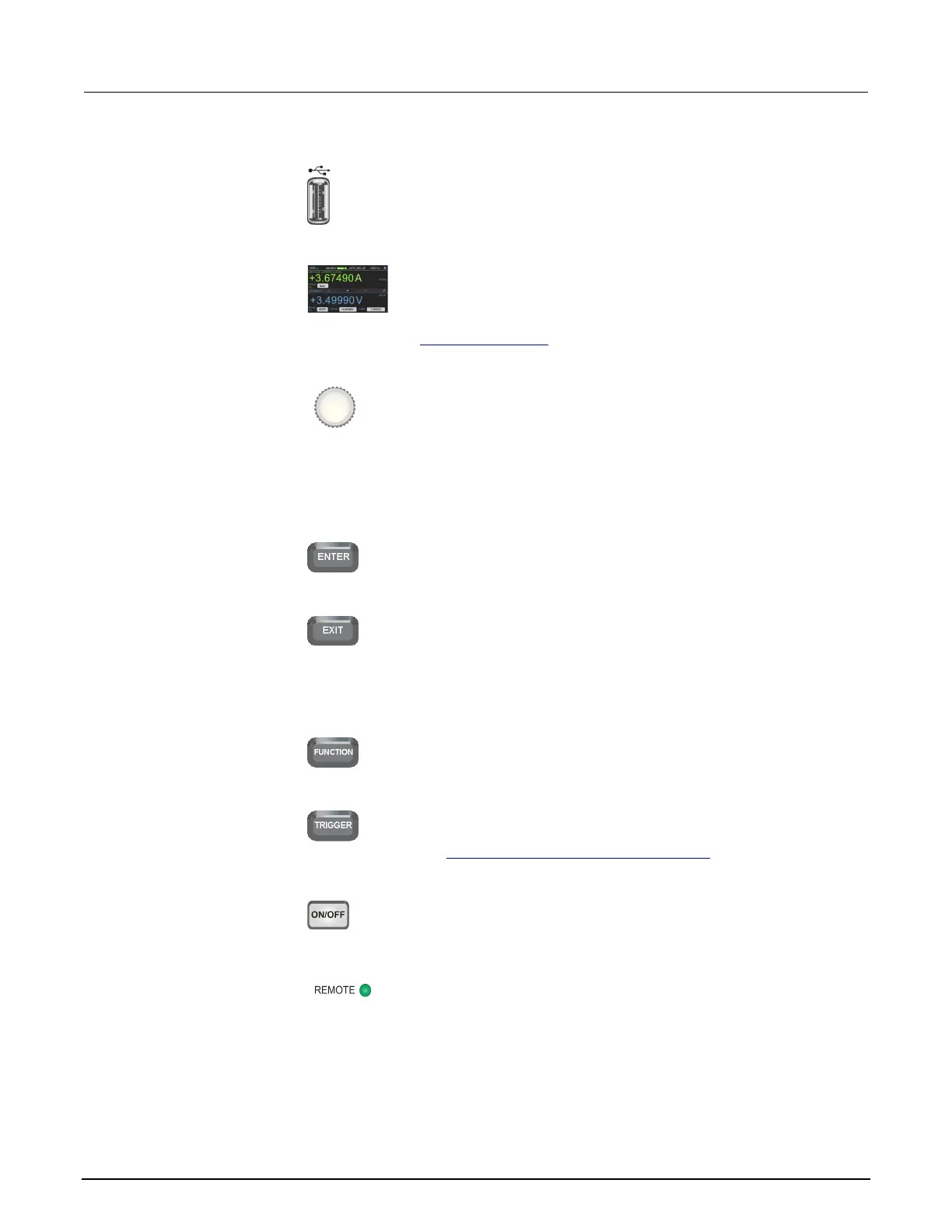

USB port
Saves reading buffer data and screen snapshots to a USB flash
drive. Also stores and retrieves scripts to and from a USB flash
drive. The flash drive must be formatted as a FAT drive.
Touchscreen
The Model 2461 has a high-resolution, five-inch color touchscreen
display. The touchscreen accesses swipe screens and menu
options. You can access additional interactive screens by pressing
the front-panel MENU, QUICKSET, and FUNCTION keys. Refer to
Touchscreen display (on page 2-8) for details.
Navigation control
Turning the navigation control: Moves the cursor to highlight a
list value or menu item so that you can select it. Turning the
control when the cursor is in a value entry field increases or
decreases the value in the field.
Pressing the navigation control:
ENTER key
Selects the highlighted choice or allows you to edit the selected
field.
EXIT key
Returns to the previous screen or closes a dialog box. For
example, press the EXIT key when the main menu is displayed to
return to the Home screen. When you are viewing a subscreen
(for example, the Event Log screen), press the EXIT key to return
to the main menu screen.
FUNCTION key
Displays instrument functions. To select a function, touch the
function name on the screen.
TRIGGER key
Accesses trigger-related settings and operations. The action of
the TRIGGER key depends on the instrument state. For details,
see Switching between measurement methods (on page 3-99).
OUTPUT ON/OFF
switch
Turns the output source on or off. The key illuminates when the
source output is on.
REMOTE LED
indicator
Illuminates when the instrument is controlled through a remote
interface.
