Model 2461
Interactive SourceMeter® Instrument Reference Manual Section 3:
Functions and features
2461-901-01 A/November 2015 3-151

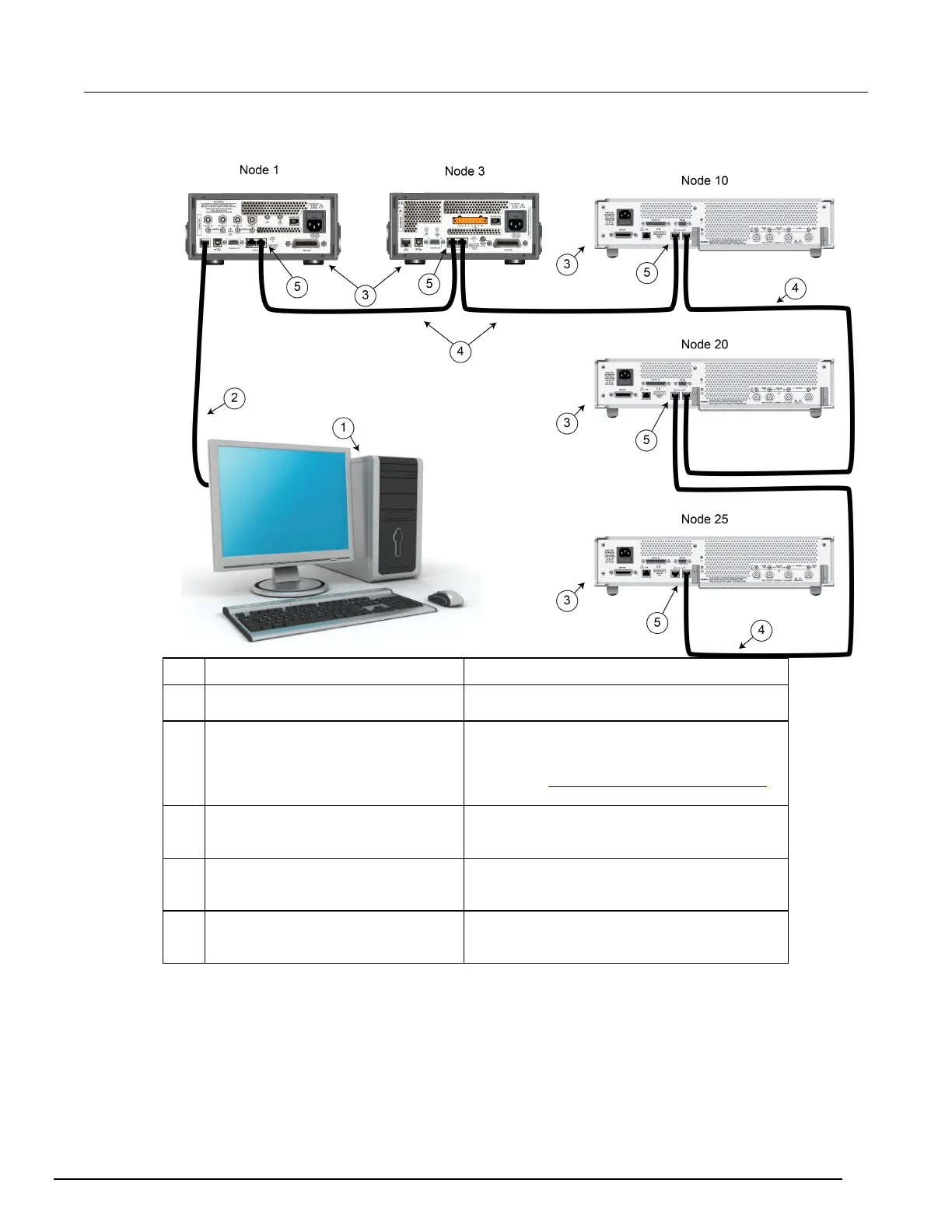

Figure 142: TSP-Link connections
Item Description Notes
1
Controller
Optional. A computer is not needed for stand-
alone systems.
2
Communication connection
Optional. Connection from controller to the master
node through GPIB, LAN, or USB. Details about
these computer communication connections are
described in Remote communications interfaces.
3
Nodes
You can have up to 32 nodes on the TSP-Link
system. Each node must have a unique node
number from 1 to 64.
4 LAN crossover cable Type 5e category or higher; 3 meters (9.8 feet)
maximum between nodes. Available from Keithley
Instruments (Model CA-180-3A).
5 TSP-Link connections Each instrument has two TSP-Link connectors.
You can make the connection to either TSP-Link
connection.
