Keithley 2461 Reference Manual

Section
2: General operation Model 2461 Interactive SourceMeter® Instrument
Reference Manual
2-40 2461-901-01 A/November 2015

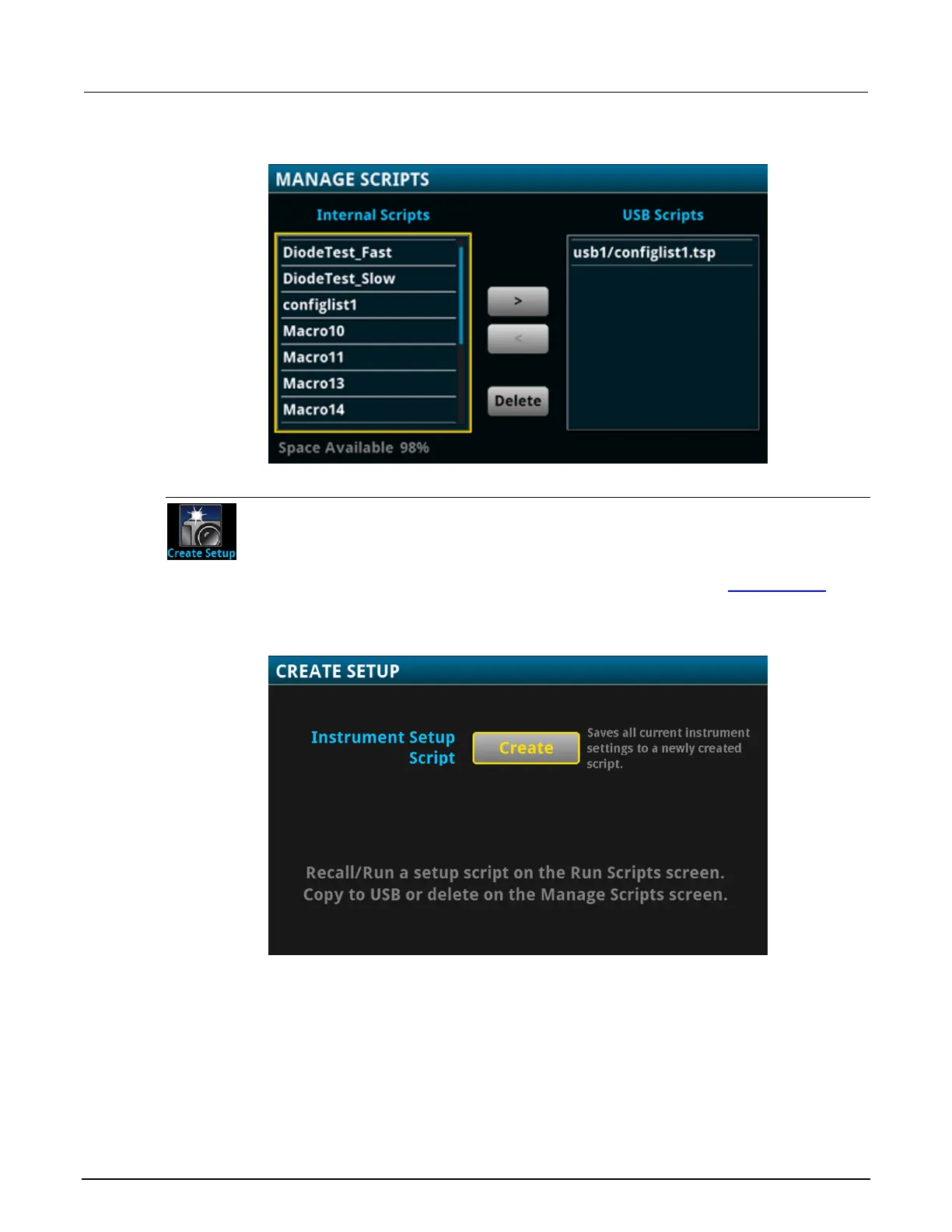

Figure 26: Model 2461 MANAGE SCRIPTS menu
Scripts Create Setup menu
The Create Setup menu allows you to save the present settings and configuration lists
of the instrument into a configuration script. You can use this script to recall the
settings.
For more information about user configuration scripts and setups, see Saving setups
(on page 2-137).
Figure 27: Model 2461 CREATE SETUP menu
