8: TSP command reference Model 2461 Interactive SourceMeter® Instrument
Reference Manual
8-58 2461-901-01 A/November 2015
Details
This command prompts the instrument operator to enter a value.
The prompt is displayed until it has been responded to.
On the prompt, the operator can move the cursor in the entry box by touching the screen. The cursor
is moved to the spot where the operator touched the screen.
Example
smu.source.func = smu.FUNC_DC_CURRENT
testcurrent = display.input.number("Enter a Test Current (0 to 1 A)",
display.NFORMAT_PREFIX, 0, 0, 1)
smu.source.level = testcurrent

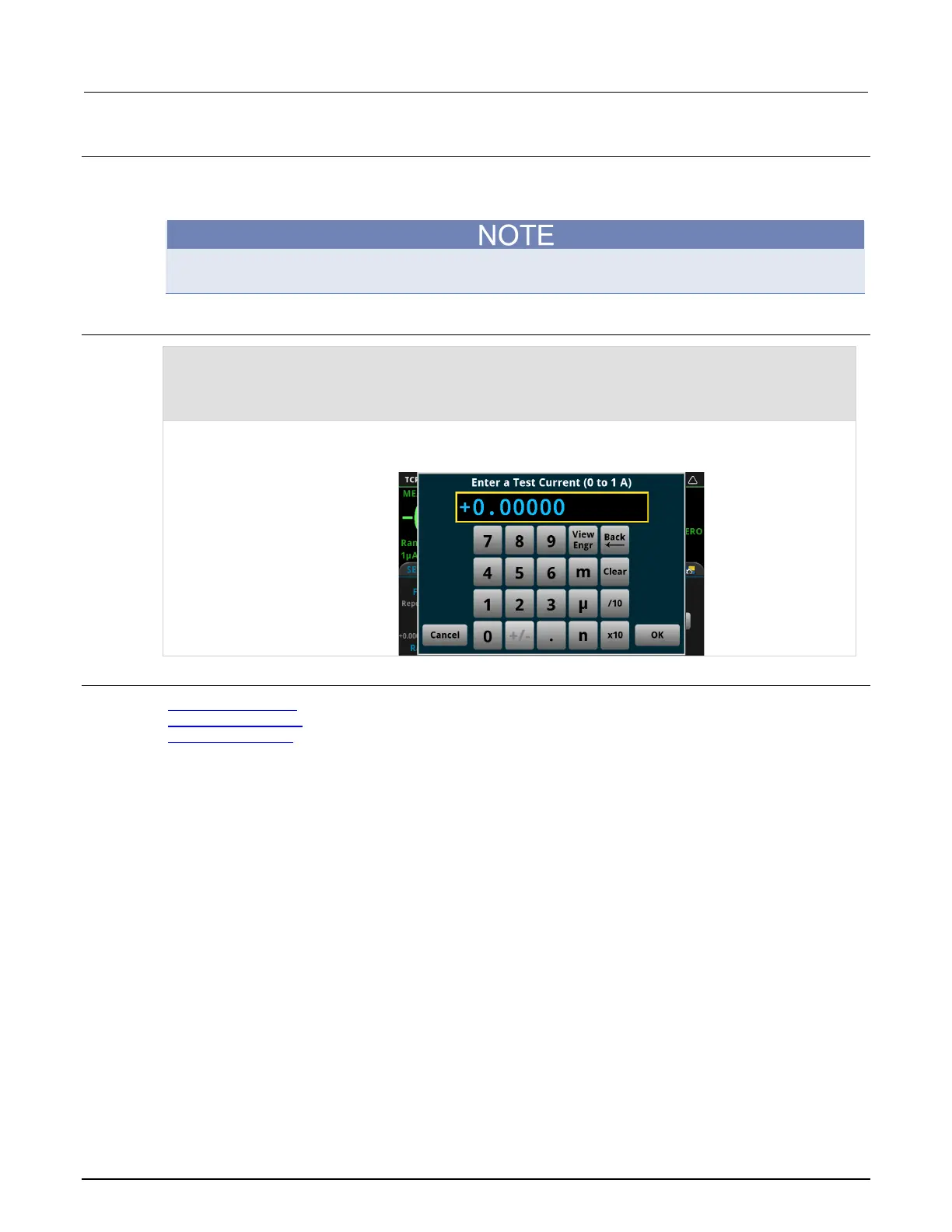

This example displays a number pad on the screen that defaults to 0 and allows entries from 0 to 1. The
number that the operator enters is assigned to the source current level. If the operator enters a value outside
of the range, an error message is displayed.
Also see
display.input.option() (on page 8-59)
display.input.prompt() (on page 8-61)
display.input.string() (on page 8-62)

Keithley 2461 Specifications

General

Maximum Current	7 A
Power	100 W
Resolution	6.5 digits
Source Measure Unit (SMU)	Yes
DC Voltage	100 V
Maximum Voltage	100 V
Display	5-inch capacitive touchscreen
Connectivity	USB, GPIB
Software	TSP
DC Current	7 A
Current Source Range	0 to 7 A
Voltage Measurement Range	100 mV to 100 V
Current Measurement Range	10 nA to 7 A
Voltage Measurement Resolution	100 nV
