Kyocera TASKalfa 8002i

2WA/2NJ/2RK
4-191

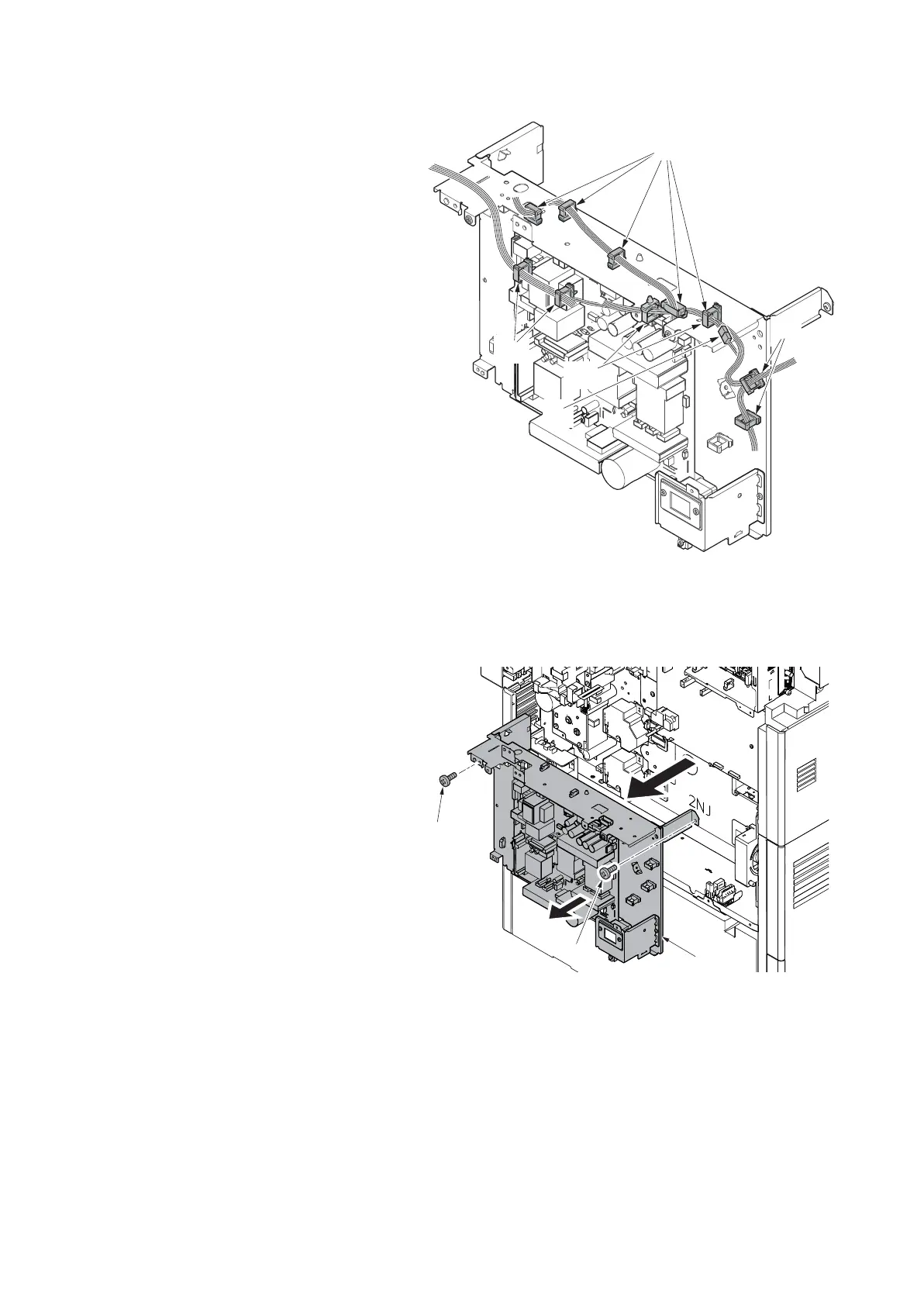

14. Release ten wire saddles (b) and
remove the wire.
15. Disconnect all the connectors and tab
from the power source PWB.
16. Disconnect two 2-pin connectors (1).
Figure 4-282
17. Remove two screws (a)(M4x8).
18. Remove the power source assembly
(b).
Figure 4-283
14j0420
b
b
b
c
b
a
a
b
14j0422
