7 How to Work with the Analyser
7.7 Measurement Settings
LAR | PROCESS ANALYSERS AG
7.7.2 Measuring Channel Settings
In this display the parameters to be measured of the measuring channels for the sample streams can be
set.
Selection of sample stream:
This function can be used to select the sample flow to be set.
Channel selection:
This function allows the measurement of measurement channels / parameters to be switched on and off.
Furthermore, you can click on one of the measuring channels to access the channel settings
(Chapter 7.7.2.1 on page 106) of the selected measuring channel

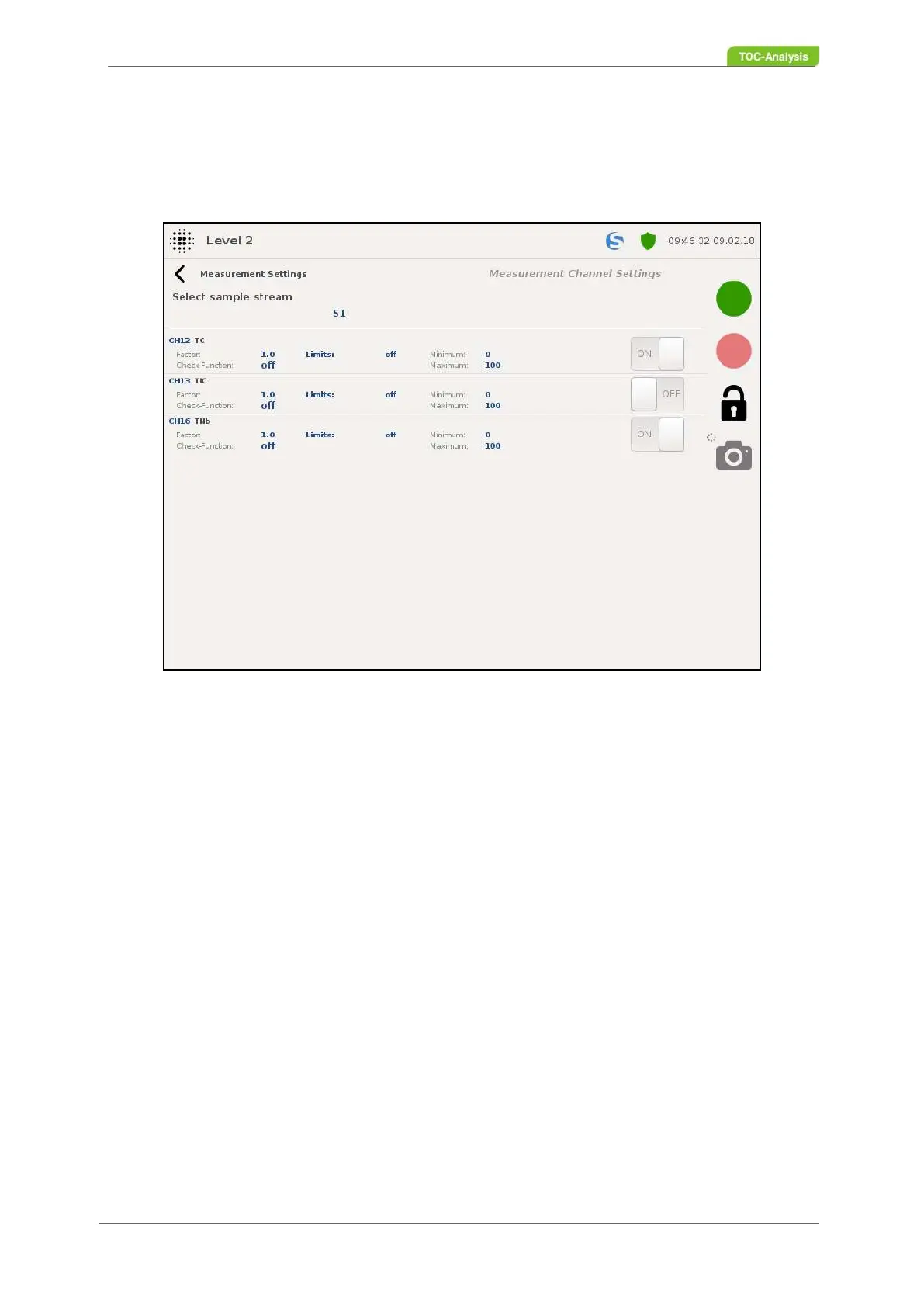

Fig. 72: Measurement channel settings (Example)
