68 Instruction Manual QuickTOC

ultra

IECEx 12E5119

5 Start-up

5.10 Installation of the Pump Tubes LAR | PROCESS ANALYSERS AG

5.10 Installation of the Pump Tubes

5.10.1 Installation of the Tubes into the Tube Cassette Pump

In order to pump the solutions, the tubes must be placed into the tube cassette pump correctly.

Proceed as follows:

1. Use the overview to localise all tube cassette pumps (Tab. 2, page 21).

2. Place the tube into the cassette between two of the coloured stoppers with the marking facing

upwards.

3. Apply silicone oil to the tube.

4. Place the cassette onto the pulley head of the pump until a click is heard.

5. Proceed in the same way with other cassettes on the tube cassette pump and other tube cassette

pumps..

5.10.2 Installation of the Tubes into the Sample Pump

In order to pump the samples, the tubes must be placed correctly into the sample pump.

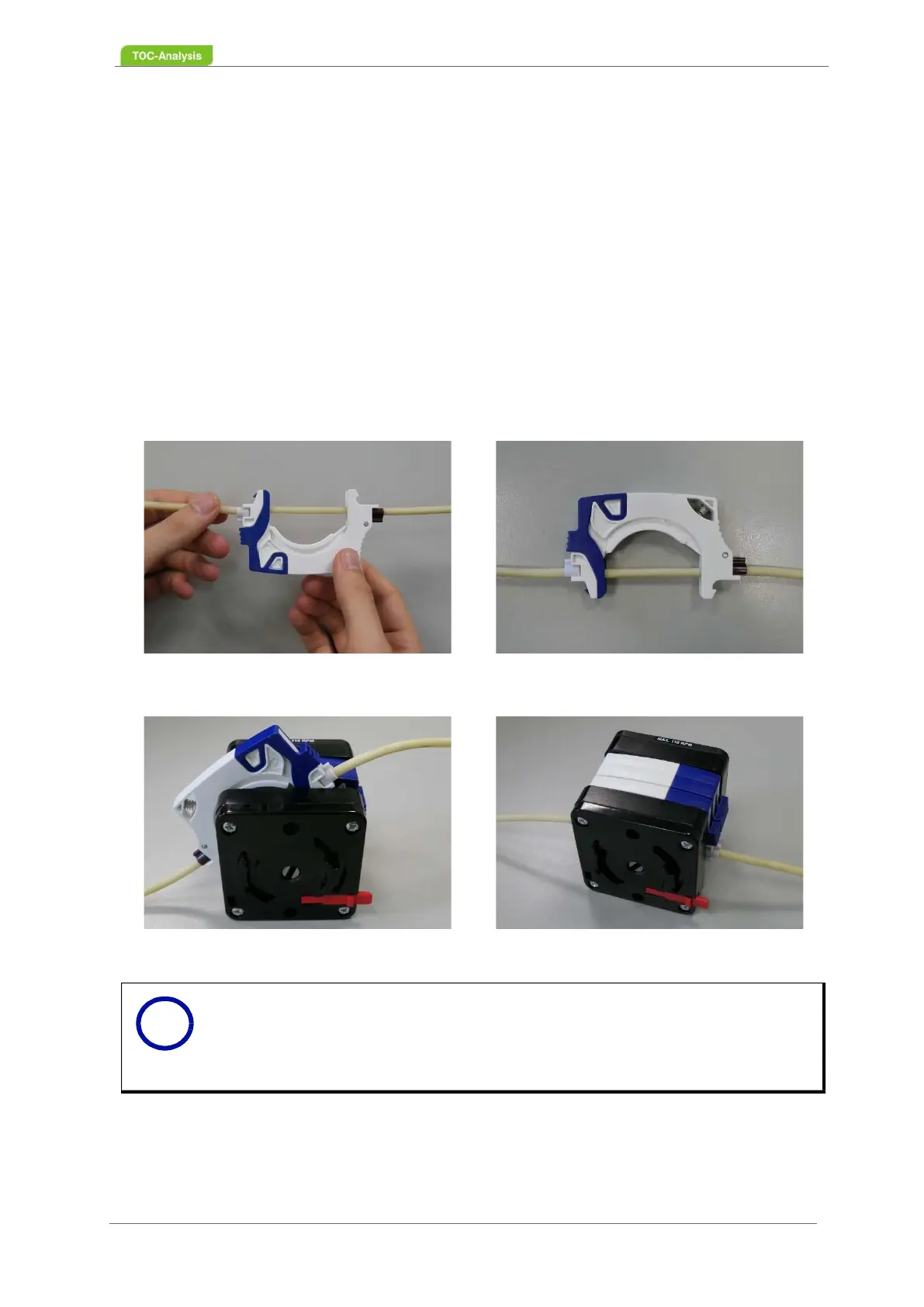

Fig. 43: Insert tube (Example) Fig. 44: Cassette with fixing flap (Example)

Fig. 45: Mounting the tube cassette (Example) Fig. 46: Tube cassette on pump (Example)

Notice

Hoses with three color code stoppers can be used longer by pushing them for-

ward. The service life of a hose is thereby doubled.

To ensure long life and good performance of the pump tubing, use only original

LAR pump tubing.
