9 Accessories and Options
9.6 Mounting Rack
LAR | PROCESS ANALYSERS AG
9.6 Mounting Rack
The analyser can be supplied with an optional LAR mounting rack.
M1 - M4: Holes for the fixing of the Analyser
Q1 - Q2: Holes for the fixing of the Ambient Air Preparation Unit / Reagent Cabinet

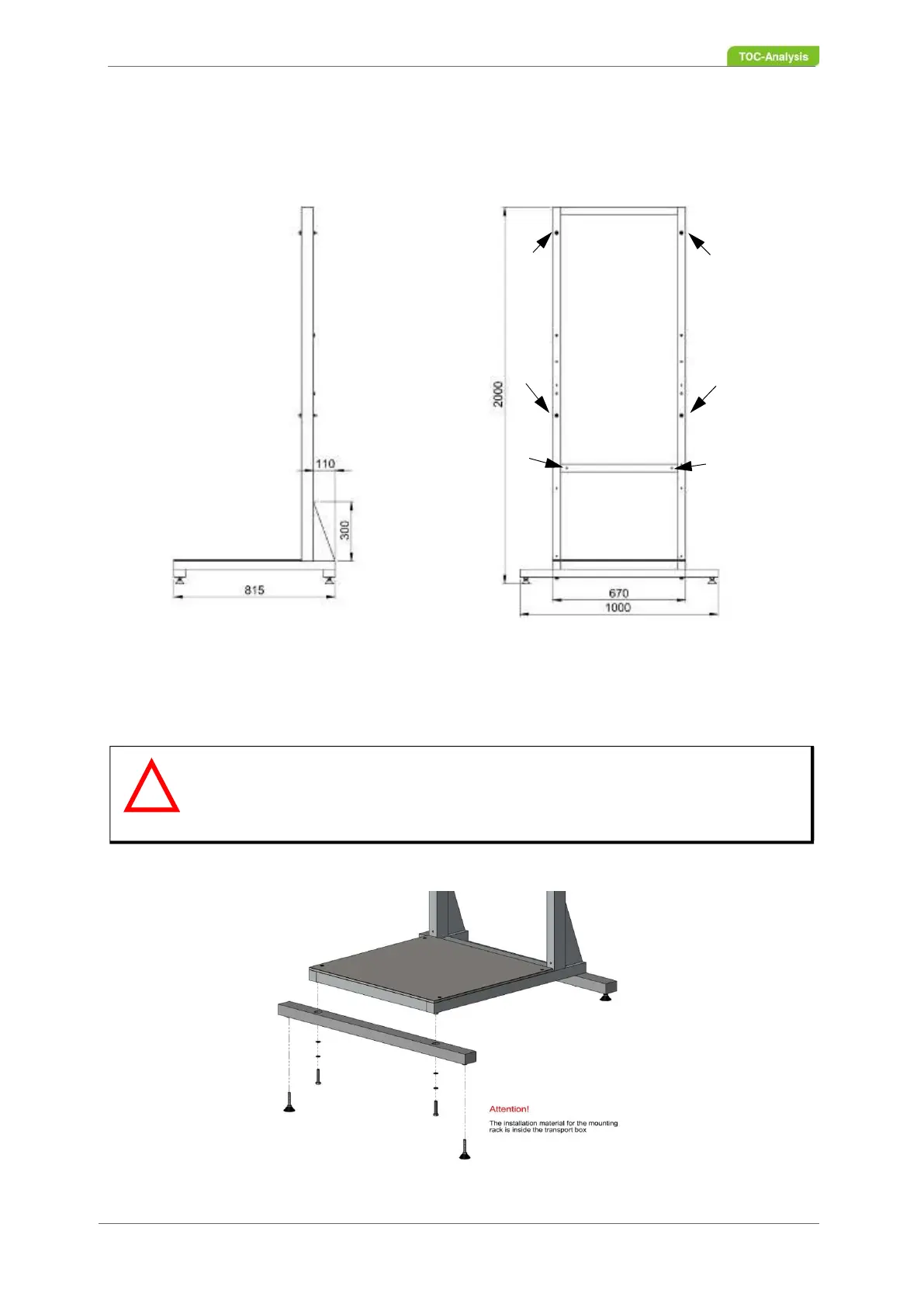

Fig. 150: LAR Mounting Rack
Warning
The LAR mounting rack is not fully assembled on delivery. The cross braces
and adjustable feet of the installation rack must be fitted before the installation.
Fig. 151: Mounting of the LAR Mounting Rack
M1 M2
M3
M4
Q1
Q2
!
