9 Accessories and Options
9.4 Overflow Sampler
LAR | PROCESS ANALYSERS AG
9.4 Overflow Sampler
The overflow sampler system is a sample supply for clear or slightly contaminated waters, in which the
sample is kept homogeneous by a special feeder. The swirling of the sample reduces heavy soiling and
debris within the container.
The sample storage system consists of a sturdy container with wall mounting and a removable lid.
9.4.1 Construction of the Overflow Sampler
9.4.2 Connections
• Sample inlet connection for hose ID 8mm / OD 12mm
• Sample drain (free drain) - hose nozzle DN25 / 32 mm
• Sample outlet for analyser with 4x1 PVC or 3.2 * 1.6 mm Prene or silicone hose
1
Vent
2 Inlet
3 Drain
4 Sample outlet for analyser
5 Overflow drain

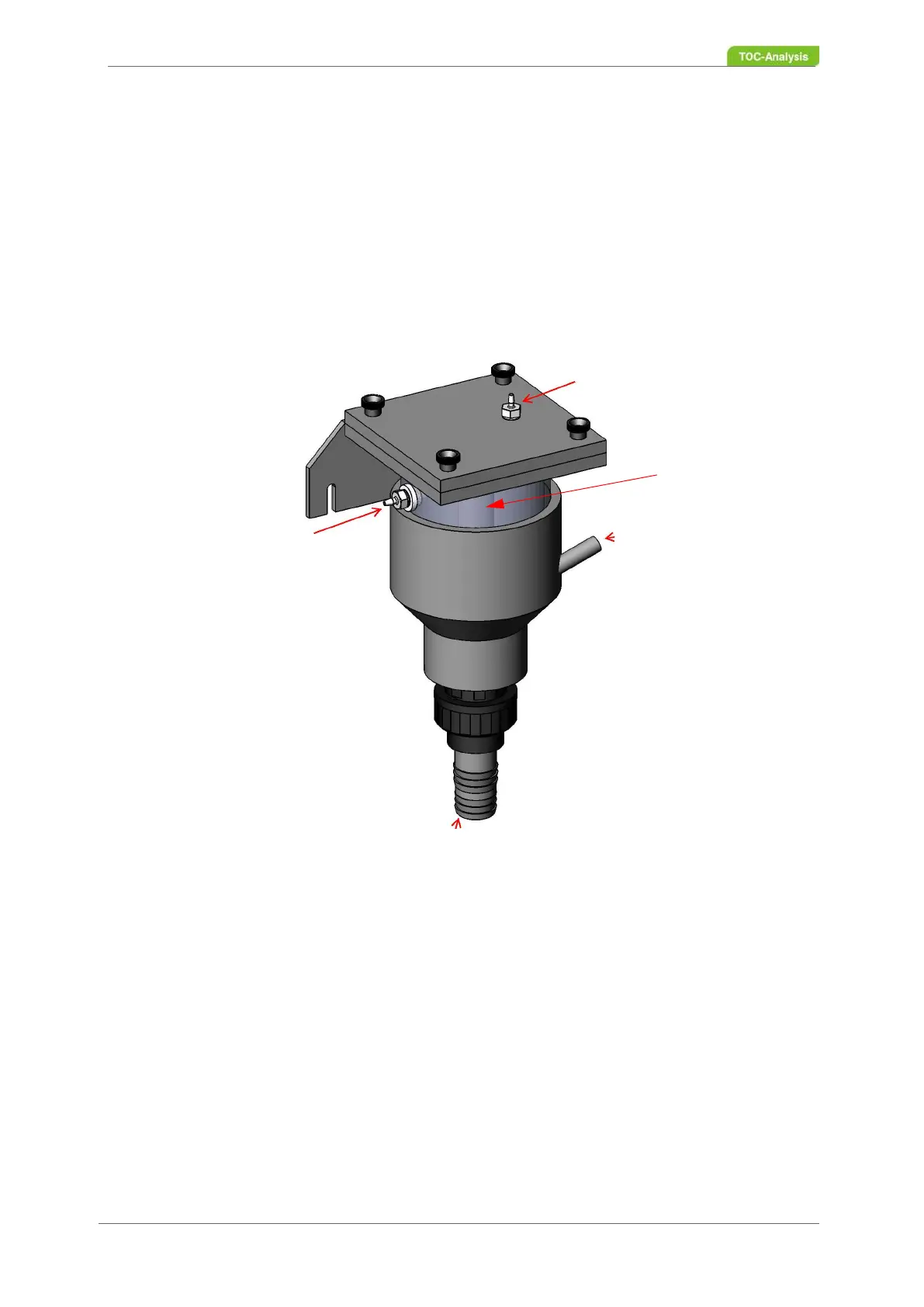

Abb. 144: Overflow sampler
1
2
3
4
5
