LAR Process Analysers QuickTOC ultra - Construction of the Analyser; Front View of the Analyser

12E5119 Instruction Manual QuickTOC
®
ultra
IECEx 19
3 Product
3.3 Construction of the Analyser
LAR | PROCESS ANALYSERS AG
3.3 Construction of the Analyser
3.3.1 Front view of the analyser

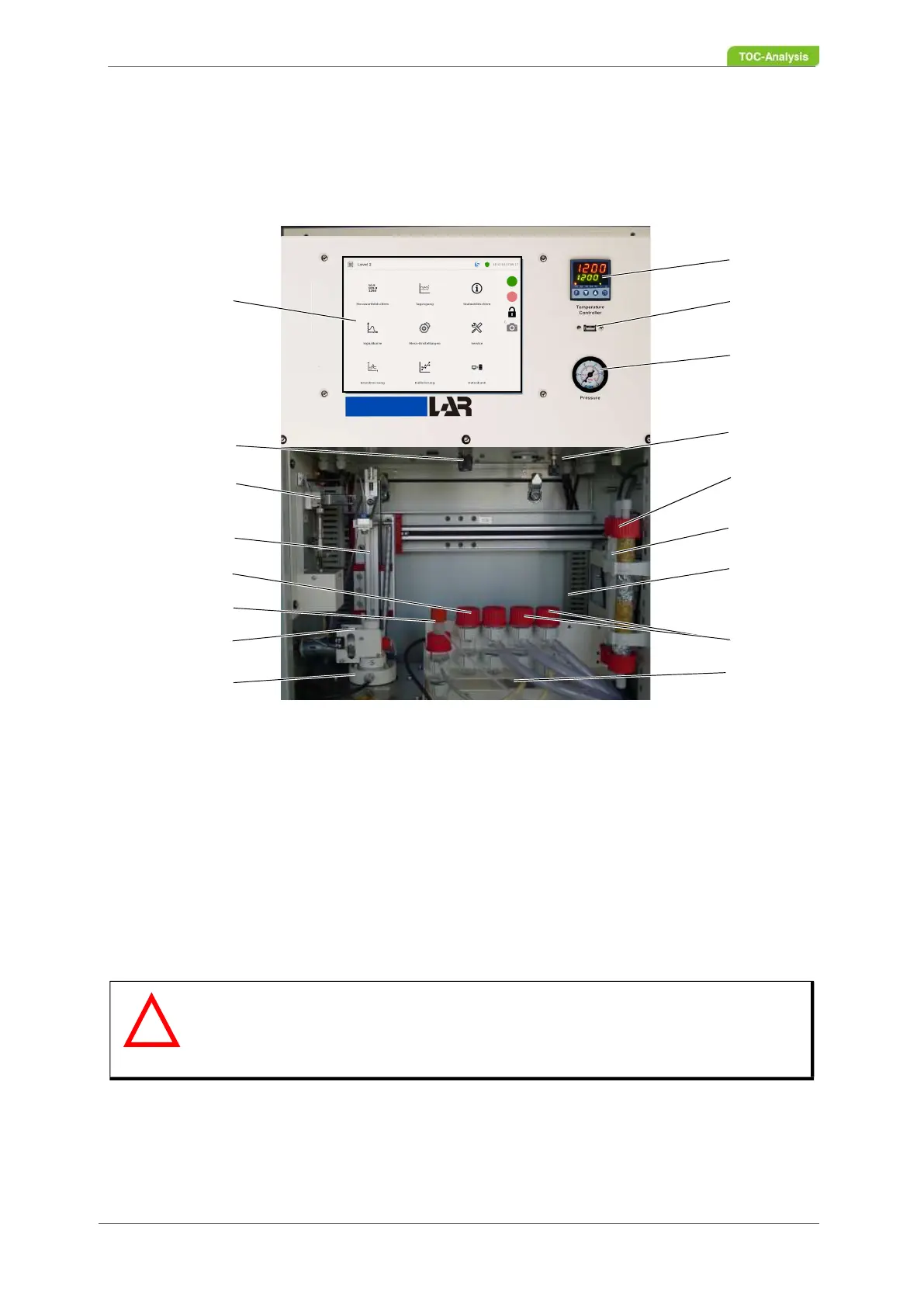

Fig. 5: Front view of QuickTOC
®
ultra
(Example: 2 sample streams, TOC-Difference Method)
Danger
Danger of hot surfaces!
The area of the injection port and the furnace head are very hot.
Always wear heat-resistant gloves when working in this area.
1 Touchscreen
2 Temperature Regulator (Actual / Target)
3 USB 2.0 Port
4 Pressure Display of Carrier Gas Prepressure
5 Precision Flow Regulator
6 Glass Spray Unit
7 Injection Port
8 Furnace Head
9 Injection Needle with XY-System
10 TIC Reactor
11 Calibration Vessel
12 Rinse Vessel
13 Sample Vessels
14 Magnetic Stirrer
15 Precision Pressure Regulator
16 Acid Trap
17 Quartz Wool Filter
User Interface
Compartment
1
2
3
4
5
15
6
16
17
12
13
14
9
11
10
7
8
!
