8 Care and Maintenance
8.5 Perform Care Actions
LAR | PROCESS ANALYSERS AG
8.5.14 Grease Running Rails (XY-System)
Precondition: - Running rails are dry.
1. Ensure that the mains supply is disconnected.
2. Open the analyser door.
3. Position a grease gun at the front grease nipple on the guide bearing (1).
4. Press grease into the XY system through the grease nipple.
5. Close the analyser door.
6. Open the rear part of the analyser housing.
7. Take the plug door to the compartment part.
8. Position a grease gun at the rear grease nipple on the guide bearing (2).
9. Press grease into the XY system through the grease nipple.
10. Insert the plug door.
11. Close the rear part of the housing.
8.5.15 CleanTube Cassette Pump and Pump Cassettes
Precondition: - Tube cassette pump and/or pump cassettes are contaminated.
1. Take the pump cassettes from the pump.
2. Take the tubes from the pump cassettes.
3. Clean the pump and the pump cassettes.
4. Fit the tubes into the pump cassettes.
5. Insert the pump cassettes into the pump.

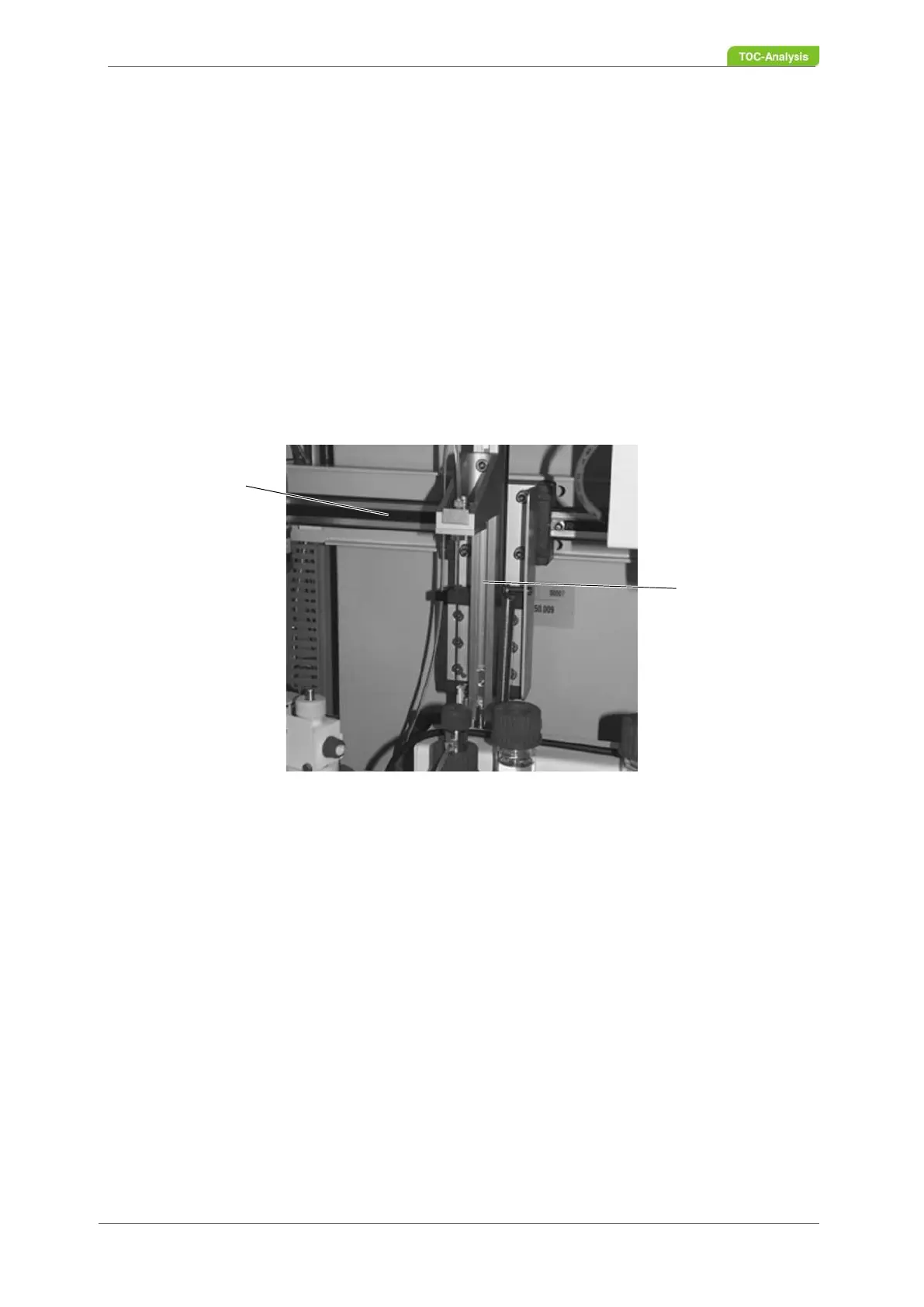

Fig. 121: Running rails of the XY system
1
2
