62 Instruction Manual QuickTOC
®
ultra
IECEx 12E5119
5 Start-up
5.5 Voltage Alignment LAR | PROCESS ANALYSERS AG
5.5 Voltage Alignment
1. Check the power supply.
2. Compare the mains voltage with that specified on the nameplate of the analyser (Fig. 3, page 18).
5.6 Fuses Switch-On
In order to switch the analyser on, the lock on the automatic circuit breaker must be removed and the
fuses must be switched on.
Proceed as follows:
1. Open the rear part of the housing to access the installation plate (Fig. 25, page 36).
2. Remove the cable tie (1) with a side cutter from the lock.
3. Remove the safety notice (2) attached to the cable tie.
4. Open the yellow lock (3) by pulling it forwards.
5. Use your finger and thumb to press in the metal clip, and remove the lock (3).
6. Switch all fuses on.
7. Close the rear part of the housing.

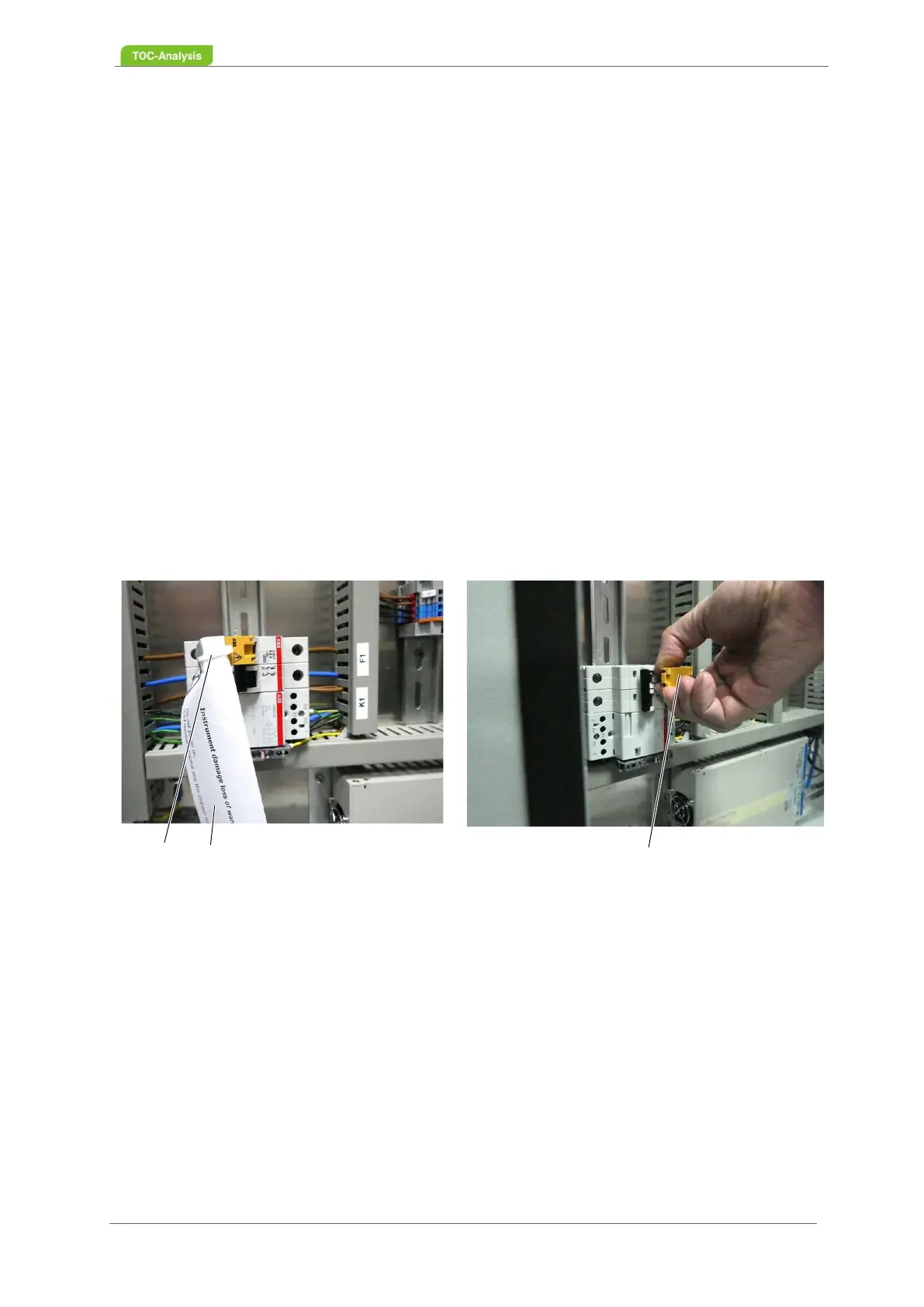

Fig. 38: Removing the fuse lock
1
2
3
