3.4.2 Glass Components
The following glass components are installed in the analyser. The number of glass components can vary
depending on the number of sample streams and the measurement method:
• TIC-reactor (only for TOC-difference method)
• Calibration vessel
• Rinse vessel
• Sample vessel(s)

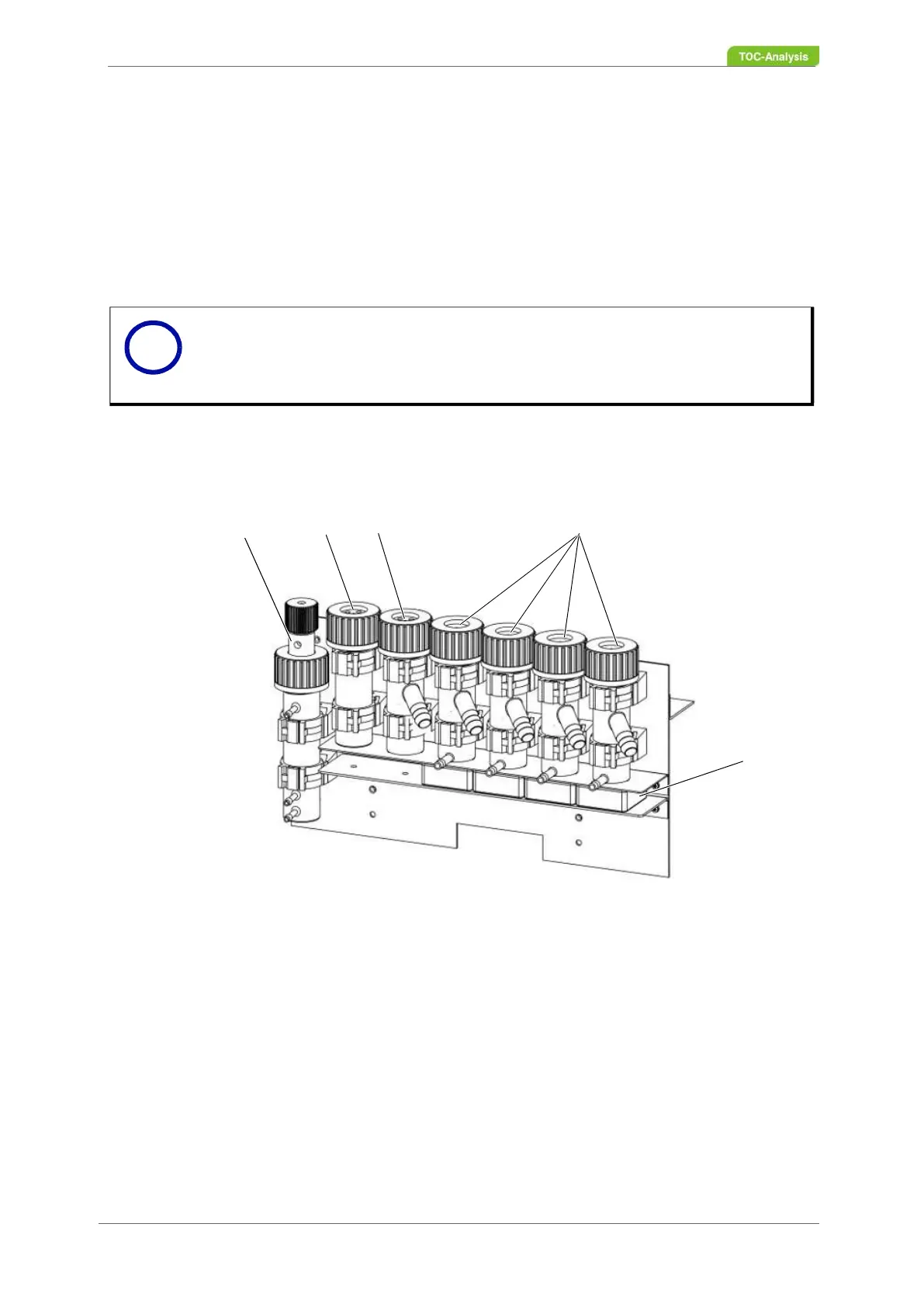

Fig. 11: Glass components (Example: TOC-difference method with 4 sample streams)
Notice
For optimal operation, LAR recommends a maximum of four sample streams.
This ensures that calibration of the analyser and rinsing of the injection needle
can be automatic without any additional overhead.
i
V1
1
V2
2
V3 - V6
3
4
1 Calibration vessel V1
2 Rinse vessel V2
3 Sample vessels V3 - V6
4 Magnetic agitator
5 TIC-reactor (TOC-difference method)
