3.4.3 Ceramic Furnace
The catalyst-free ceramic furnace is the heart of the analyser. In it, all carbon compounds are reliably
oxidised at 1,200°C, enabling a complete analysis of the sample. Absolute safety is guaranteed in every
environment despite the high temperatures.

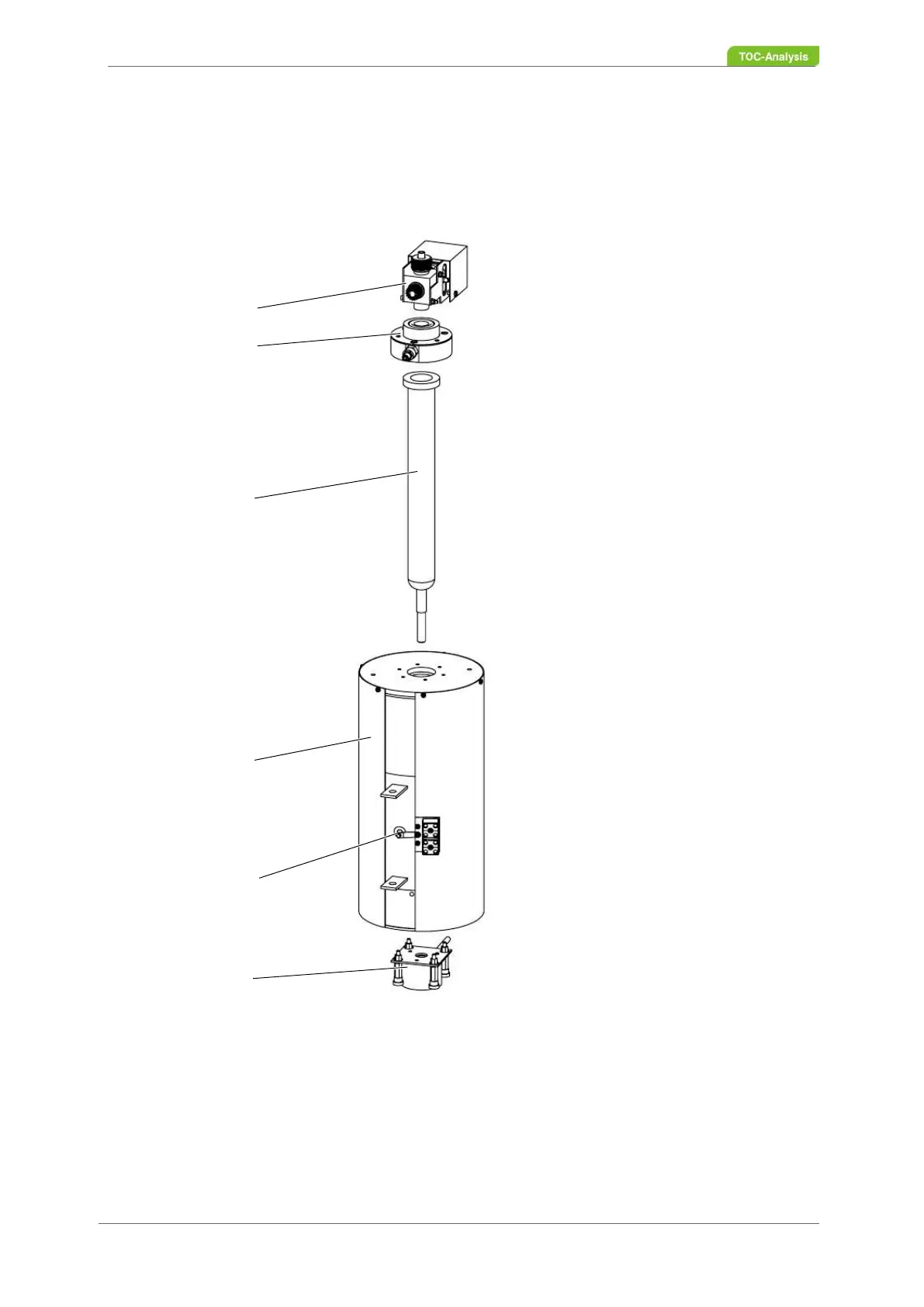

Fig. 12: Components of the furnace
1
2
4
3
5
6
1 Injection port
2 Furnace head
3 Ceramic reactor pipe
4 Furnace
5 Thermacoupler
6 Reactor foot
