5.9 Installation of Glass Components
1. Check the vessels for integrity.
2. Check that the vessels are in the right order (1, 2, 3).
3. Check that all tube connections are correctly installed.

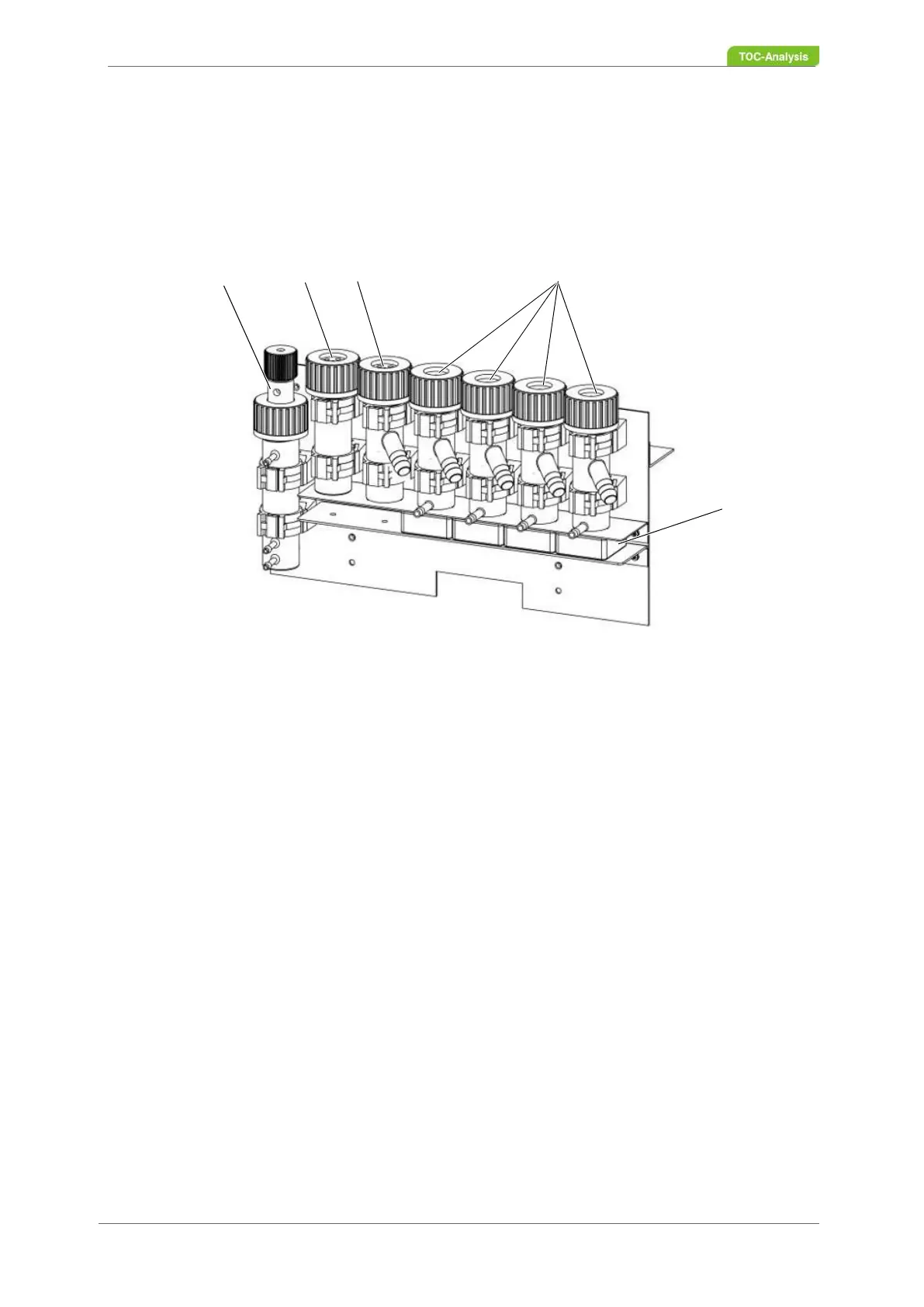

Fig. 42: Glass Components (Example - TOC-Difference Method, 4 Sample Streams)
V1
1
V2
2
3
4
1 Calibration vessel V1
2 Rinsing vessel V2
3 Sample vessel V3 - V6
4 Magnetic stir
5 TIC-Reactor (TOC-Difference method)
5
