12E5119 Instruction Manual QuickTOC
®
ultra
IECEx 231
9 Accessories and Options
9.5 CO2-Remover
LAR | PROCESS ANALYSERS AG
9.5.3 Installation of the CO
2
-Remover
Installation of the CO
2
-Remover is depending on the preferred way of mounting it.
Variant 1 (without mounting):
• Place the CO
2
-Remover unit on the floor or the PVC plate of the mounting rack underneath the
analyser and mount the filter and pressure regulator of the CO
2
-Remover on the wall near the
analyser.
Variant 2 (wall mounting):
• Install the CO
2
-Remover unit and the filter and pressure control unit on the wall near the analyser.
Warning
Correct leveling of the unit
When mounting on the wall, make sure that the CO
2
-Remover unit is in a ver-
tical position by rearranging the mounting feet.

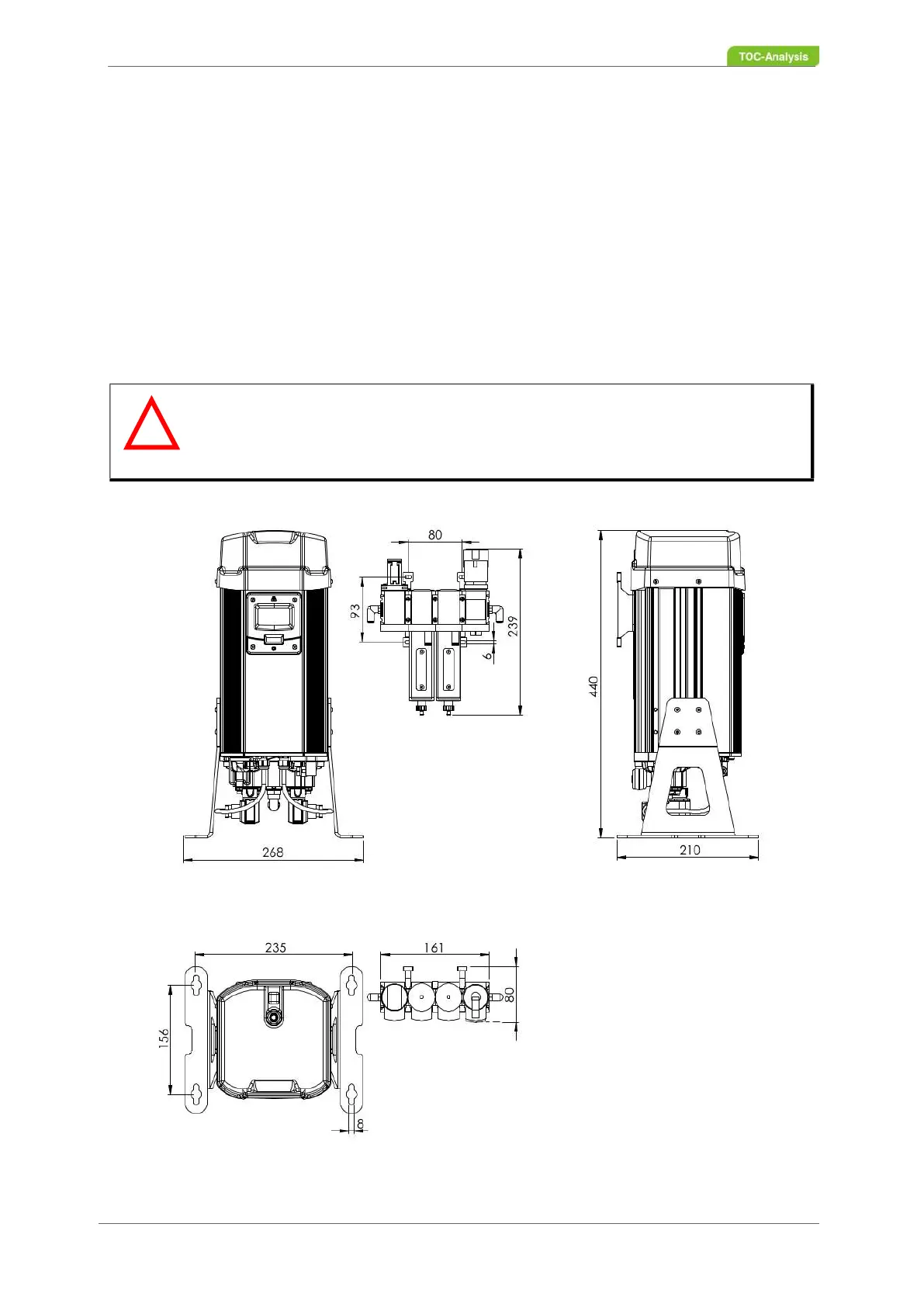

Fig. 148: Dimensions of the CO
2
-Remover
!
