3.7 Cooling and Emergency Cooling
LAR | PROCESS ANALYSERS AG

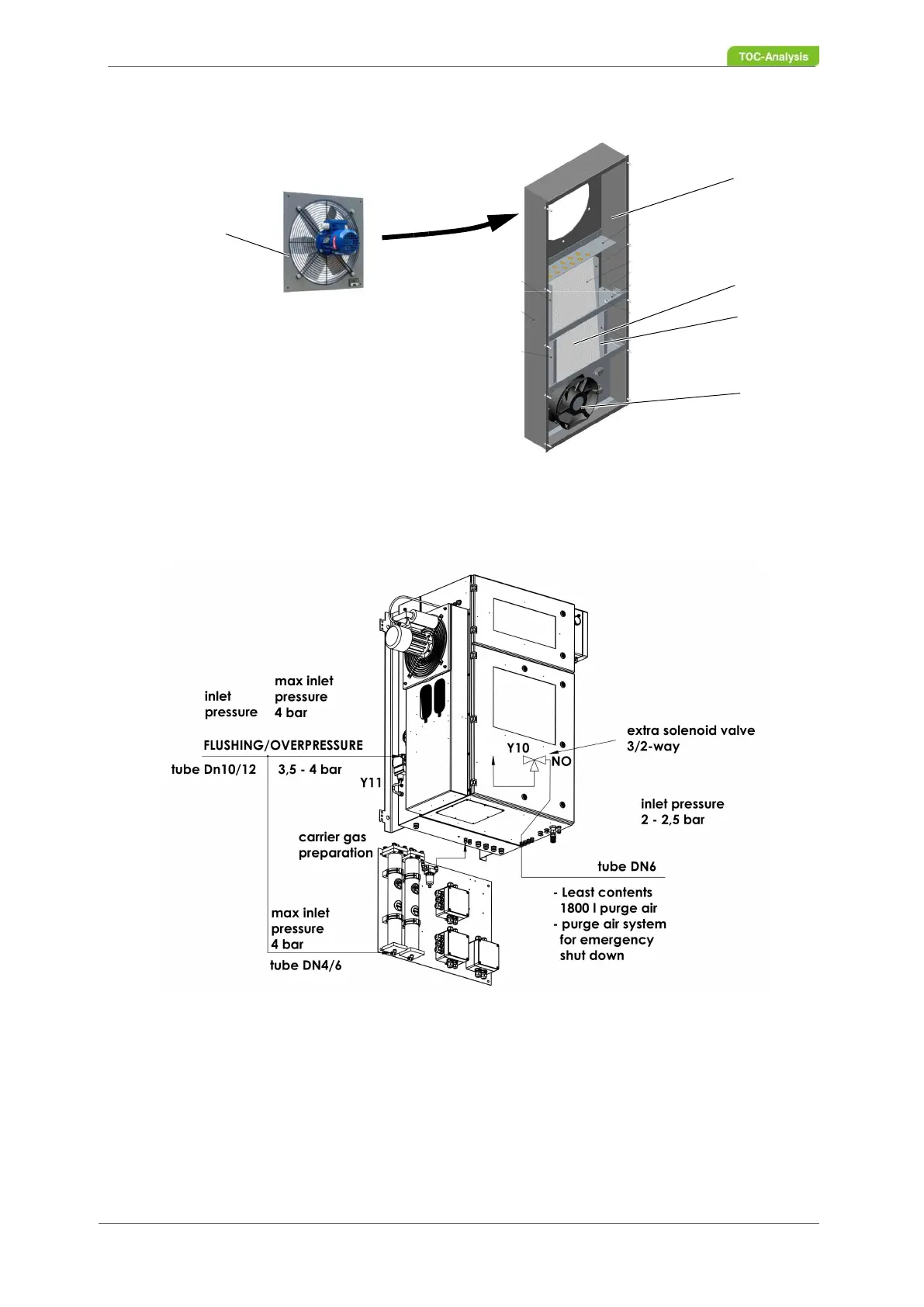

Fig. 22: Heatpipe, view from inside
The ventilator (7) complies with temperature class T4.
Fig. 23: Tubing for carrier gas, overpressure and emergency cooling
4
3
5
6
7
