OPERATION
5. Move tow-bar off drawbar.

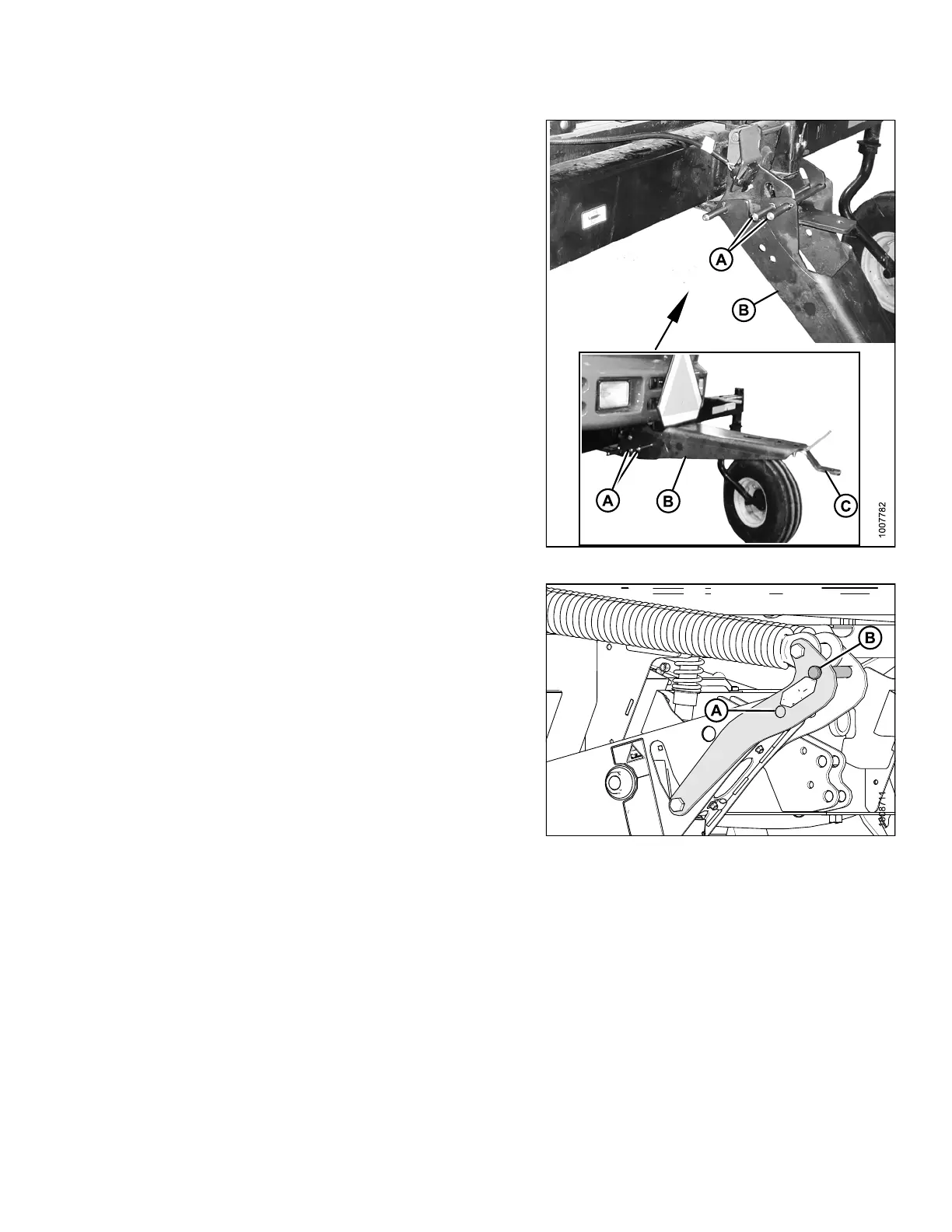

6. At rear of windrower, remove pins (A), lift drawbar
support (B) to horizontal position, and reinstall pins (a)
as shown.
7. Alternative drawbar (C) is used for attaching a tow-bar
behind swath roller.
IMPORTAN T:
Do NOT use alternative drawbar for any other purpose.
8. Disassemble tow-bar, and store on header. Refer to
header operator’s manual.
Figure 4.
52: Drawbar Hitch
IMPORTAN T:
To prevent damage to the lift system when lowering
header lift linkages without a header or weight box
attached to windrower, ensure that float engagement pin
is installed in storage lo cation (B) and NOT installed a t
hole location (A).
Figur
e4.53:LiftArms
169890 113 Revision A
