OPERATION

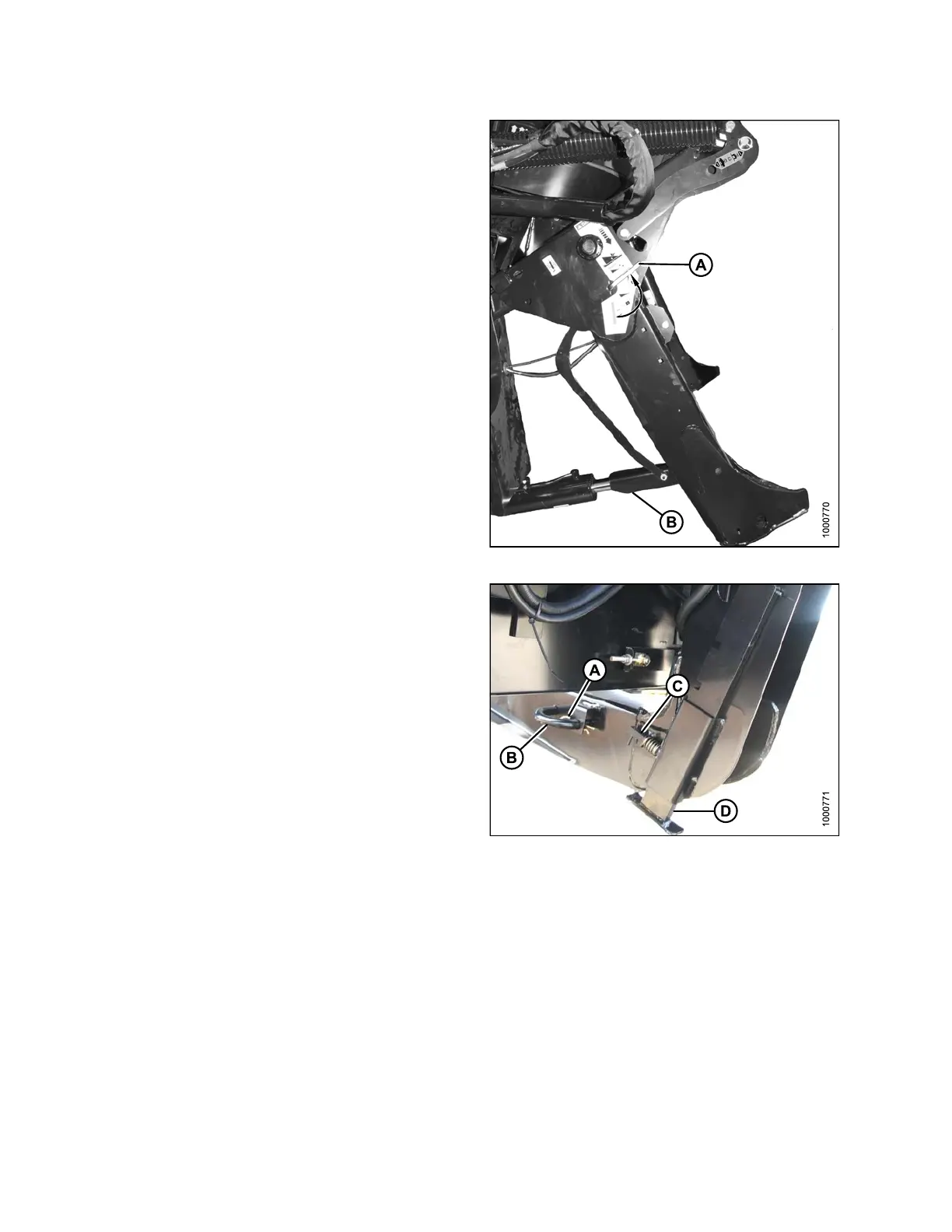

11. Engage safety props on both lift cylinders as follows:
a. Stop engine and remove key from ignition.
b. Pull lever (A) and rotate toward header to release
and lower the cylinder stop (B) onto cylinder.
c. Repeat for the opposite lift cylinder.
Figure 4.
85: Cylinder Stop
12. Install the pin (B) through header leg, (engaging
U-bracket in lift linkage) on both sides and secure with
hairpin (A).
13. Raise header stand (D) to s torage p osition by pulling
spring pin (C) and lifting stand into uppermost position.
Release spring pin (C).
Figur
e 4.86: Header Leg
169890 134 Revision A
