OPERATION
14. Remove clevis pin from storage position (B) in linkage
and insert in hole (A) to engage fl oat springs. Secure
with hairpin.

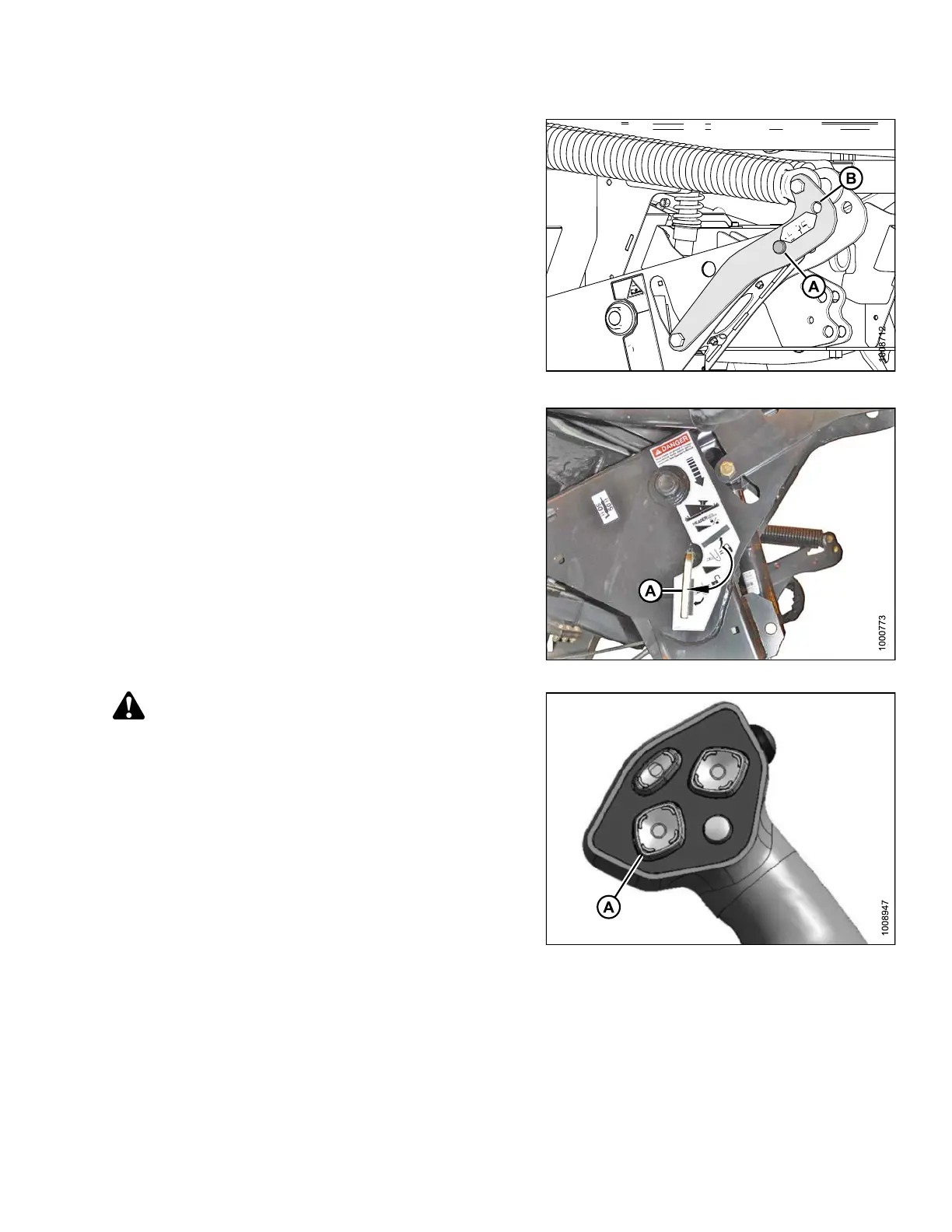

Figure 4.87: Header Lift Linkage
15. Disengage safety prop by turning lever (A) downward
to release and lower stop un til lever locks into
vertical position.
16. Repeat for opposite safety prop.
Figure 4.88: Cylinder Stop
CAUTION
Check to be sure all bystanders have cleared the area.
17. Start engine and activate HEADER DOWN switch (A)
on GSL to lower header fully.
18. Stop engine and remove key.
Figure 4.89: GSL
169890 135 Revision A
