OPERATION

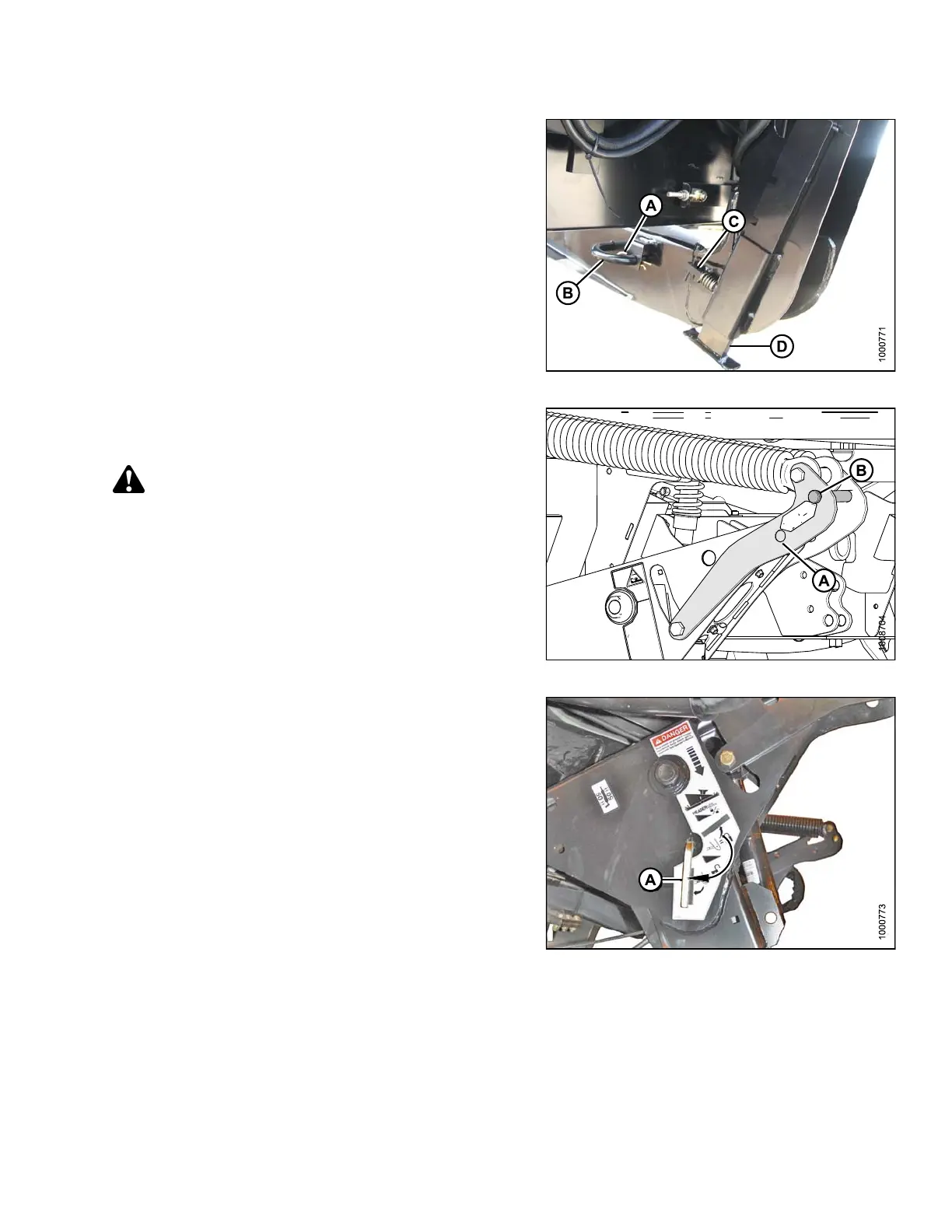

5. Remove the pin (B) by removing the hairpin (A) from
header leg on both sides.
6. Lower header stand (D) by pulling spring loaded
pin (C). Release spring pin to lock stand.
Figure 4.106: Header Stands
7. Remove clevis pin from location (A) to disengage float
springs and insert in stora ge hole (B). Secure with
lynch pin.
CAUTION
To prevent damage to the lift system when lowering
header lift linkages without a header or weight box
attached to windrower, ensure that float engagement
pin is installed in storage location (B) and NOT
installed at hole location (A).
Figure 4.107: H eader Lift Linkage
8. To disengage safety props and for storage, turn
lever (A) away from header to raise safety prop
until lever locks into vertical position. Repeat for
opposite cylinder.
Figure 4.108: Safety Prop
169890 143 Revision A
