OPERATION
9. Disconnect header drive hydraulics (A) and electrical
harness (B) from header and store in support on
windrower left cab-forward side. Refer to the draper
header operator’s manual for further information.

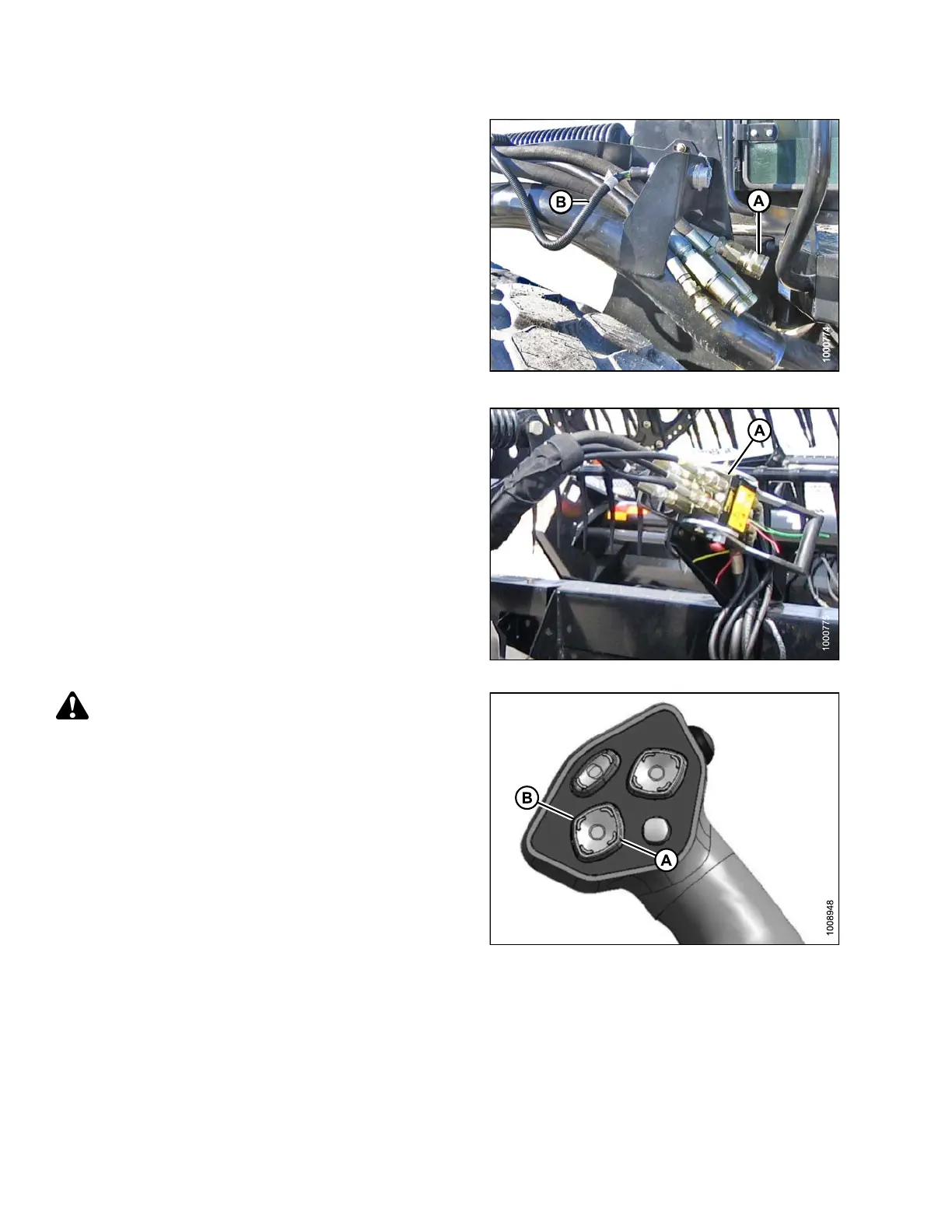

Figure 4.109: Header Drive Hydraulics
10. Disconnect reel hydraulics (A) from header and
store on bracket at windrower left cab-forward side.
Refer to the draper header operator ’s manual for
further information.
Figure 4.110: Reel Hydraulics
CAUTION
Check to be sur e all bystan d ers have cleared t he area.
11. S tart engine a nd activate HEAD ER TILT c ylinder
switch on ground speed lever (GSL) to release load
on center-link cylinder.
Figure 4.111: GSL
A-He
ader Tilt Up
B-He
ader Tilt Down
169890
1
44
Revision A
