OPERATION

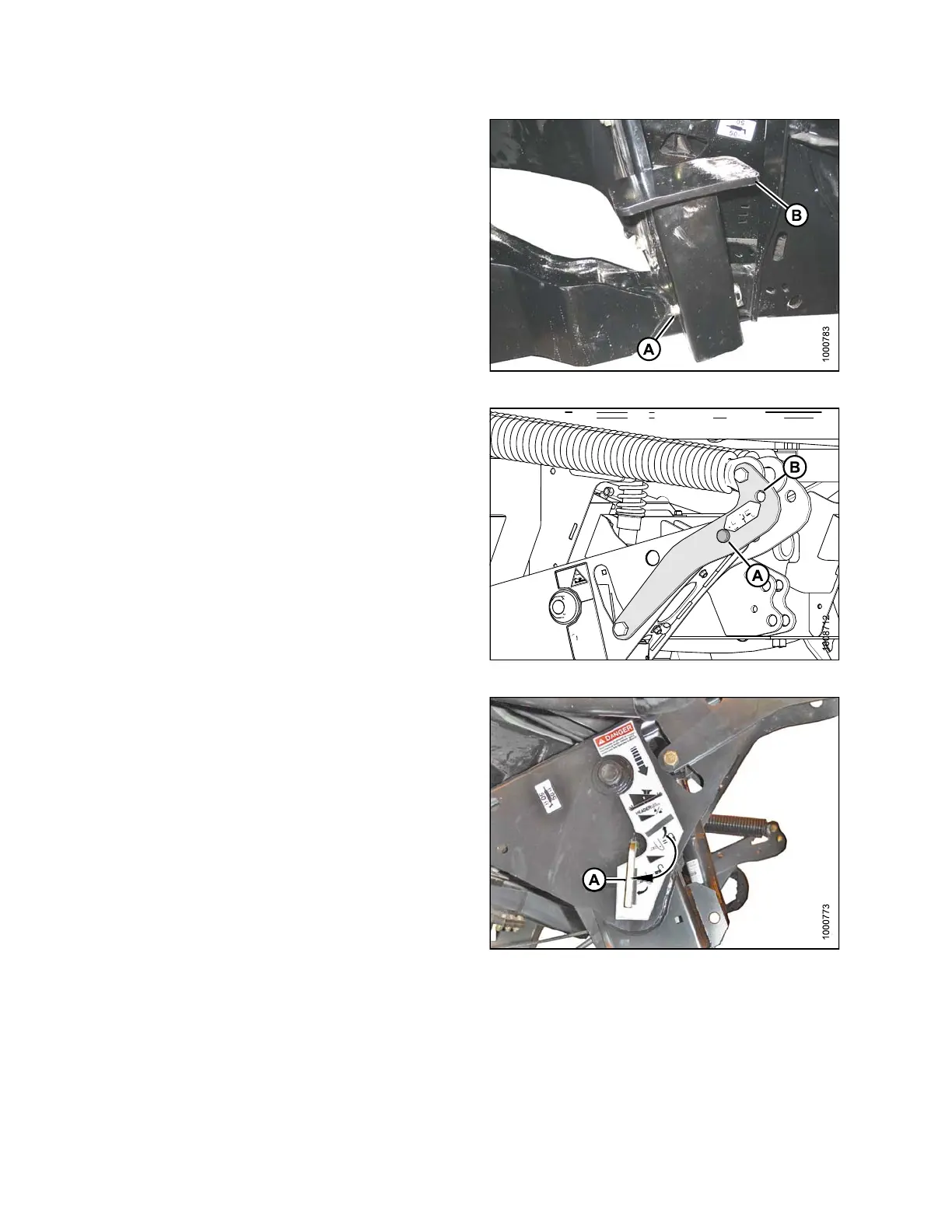

11. Remove lynch pin from clevis pin (A) in stand (B).
12. Hold stand (B) and remove pin (A).
13. Position stand to storage position by inverting stand
and relocating on bracket as shown. Reinsert clevis
pin (A) an d secure with lyn ch pin.
Figure 4.146: Header Stand
14. Remove clevis pin from storage position (B) in linkage,
and insert in hole (A) to engage float s prin gs. Secure
with hairpin.
Figure 4.147: Header Lift Linkage
15. Disengage safety prop by turning lever (A) downward
to release and lower safety prop until lever locks into
vertical position.
16. Repeat for opposite s afety prop.
Figure 4.148: Safety Prop
169890 158 Revision A
