6. Lower the hea der stand (A) by pulling clevis pin (B),
inverting s ta nd , and relocating on bracket. Reinse rt
clevis pin (B) and secure with hairpin.

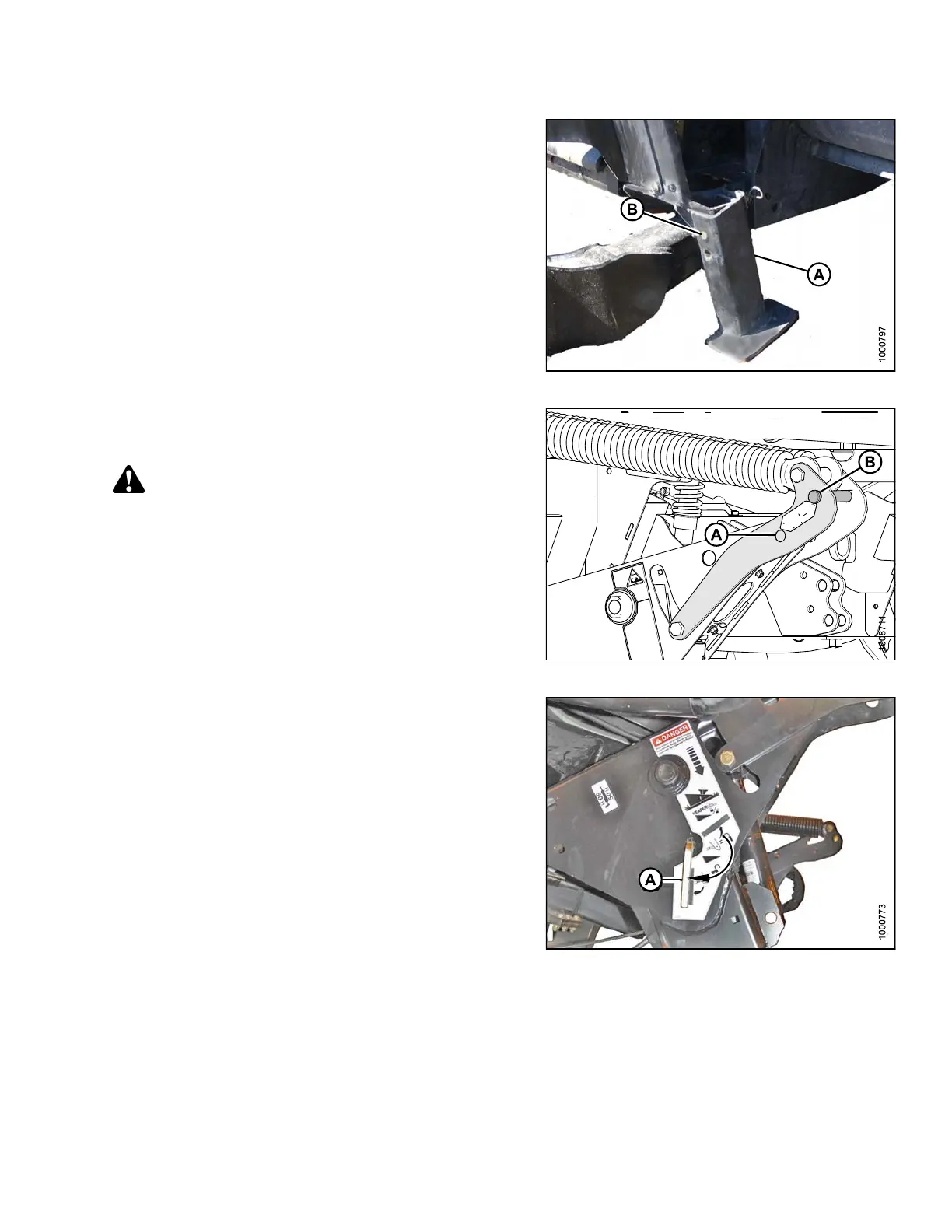

Figure 4.164: Header Stands
7. Remove clevis pin from linkage (A) to disengage float
springs and insert in stora ge hole (B). Secure with
lynch pin. Repeat for opposite linkage.
CAUTION
To prevent damage to the lift system when lowering
header lift linkages without a header or weight box
attached to windrower, ensure that float engagement
pin is installed in storage location (B) and NOT
installed at hole location (A).
Figure 4.165: H eader Lift Linkage
8. To disengage safety props and for storage, turn
lever (A) away from header to raise safety prop
until lever locks into vertical position. Repeat for
opposite cylinder.
9. Start engine, choose a level area, and lower header
to ground.
10. Stop engine and remove key from ignition.
Figure 4.166: Safety Prop
169890 165 Revision A
