MAINTENANCE AN D SERVICING

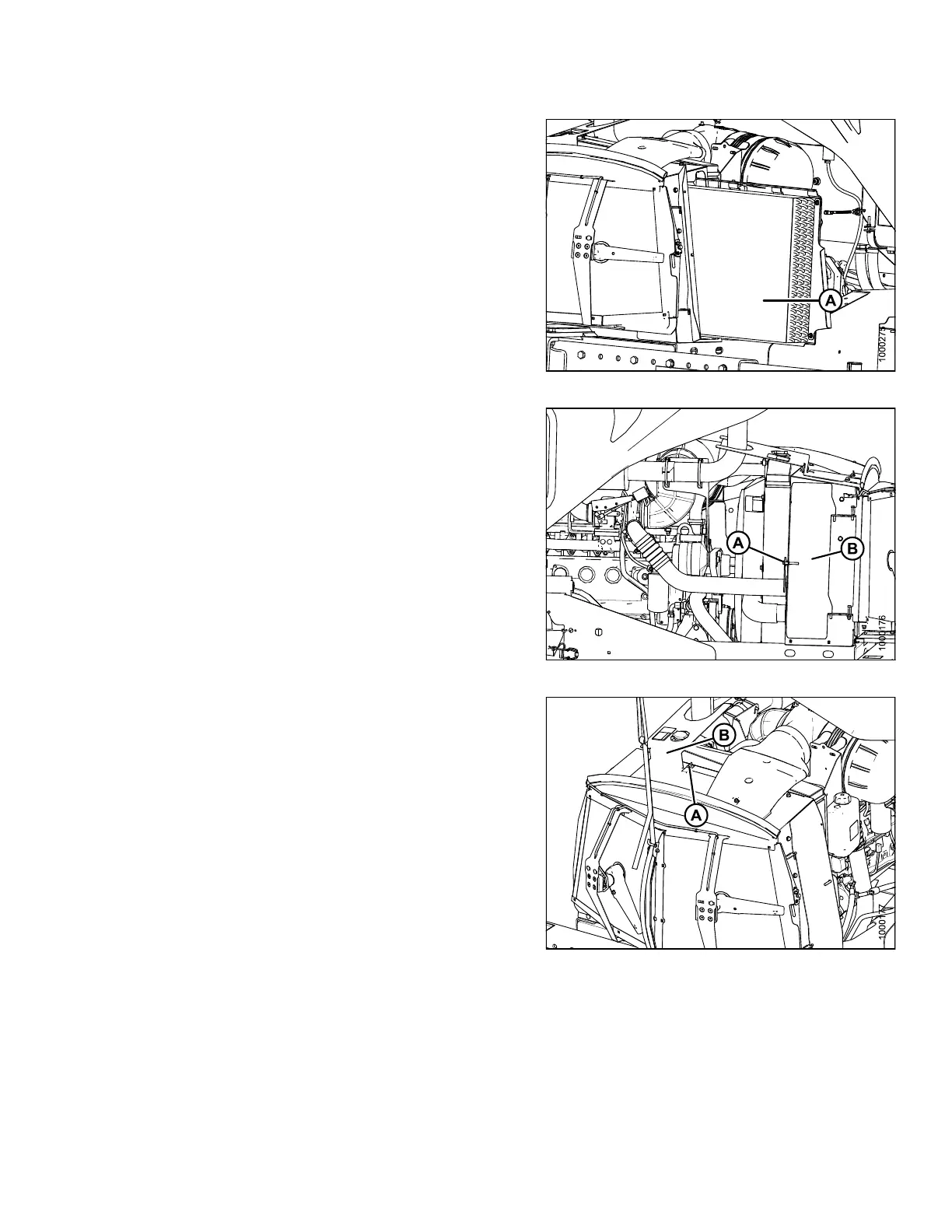

3. Slide out the oil cooler / air conditioning condenser
assembly (A).
Figure 5.107: Engine Cooling System
4. Lift latch (A) and open the left hand access door (B).
Figure 5.108: Engine Cooling System
5. Loosen wing nut (A) and open access door (B) at top
of cooling box.
NOTE:
Fins on
coolers can be very easily bent which may
interf
ere with its function. Exercise caution when
cleani
ng.
Figure 5.109: Engine Cooling System
169890 253 Revision A
