MAINTENANCE AND SERVICING
7. Place r etainer (A ) over lamp a nd pinch tabs to sec ure
retainer to socket.

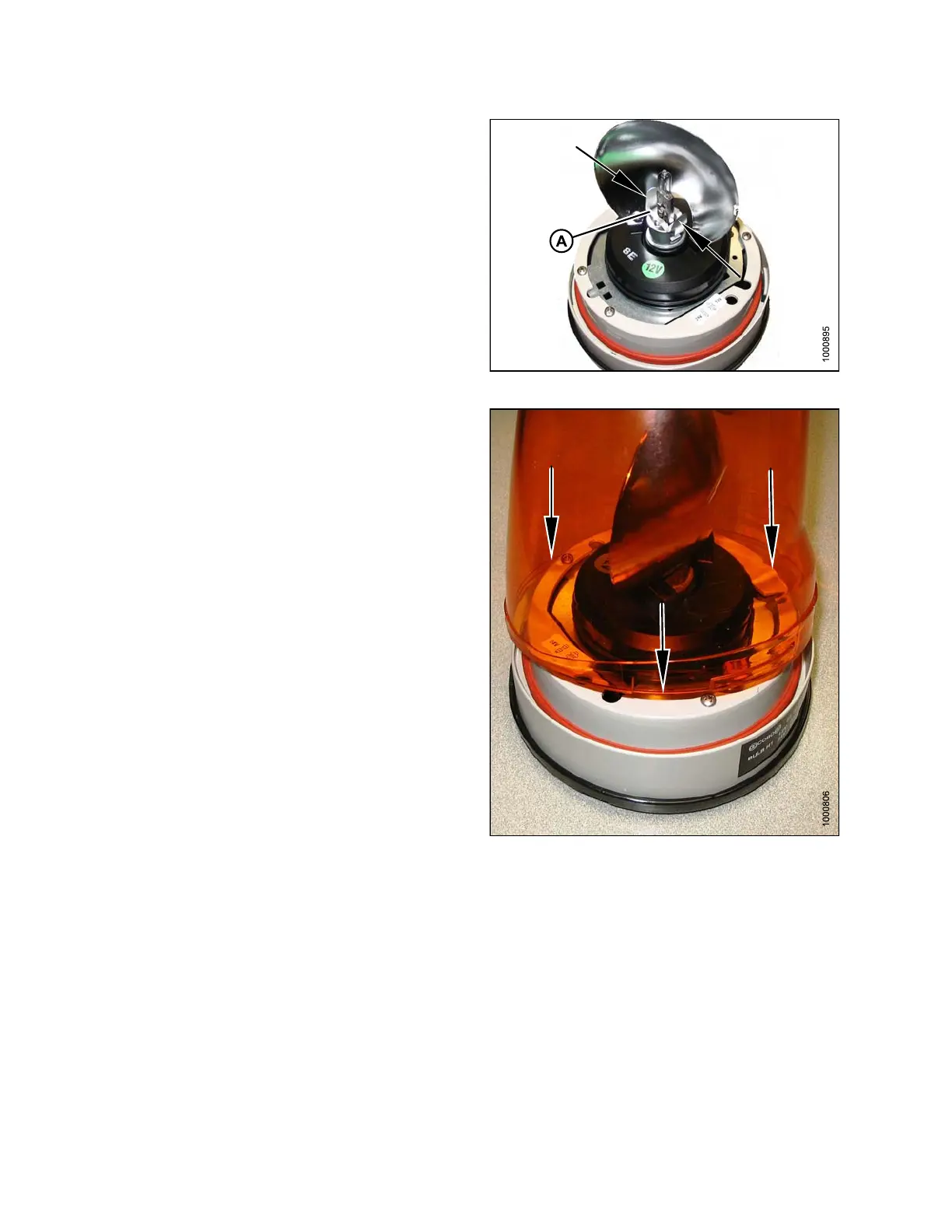

Figure 5.160: Beacon Lamp Assembly
8. Line up the three lugs (one is longer) in the base with
slots in lens, and seat the lens against the rubber seal.
Figur
e 5.161: Beacon Lamp Assembly
