MAINTENANCE AND SERVICING

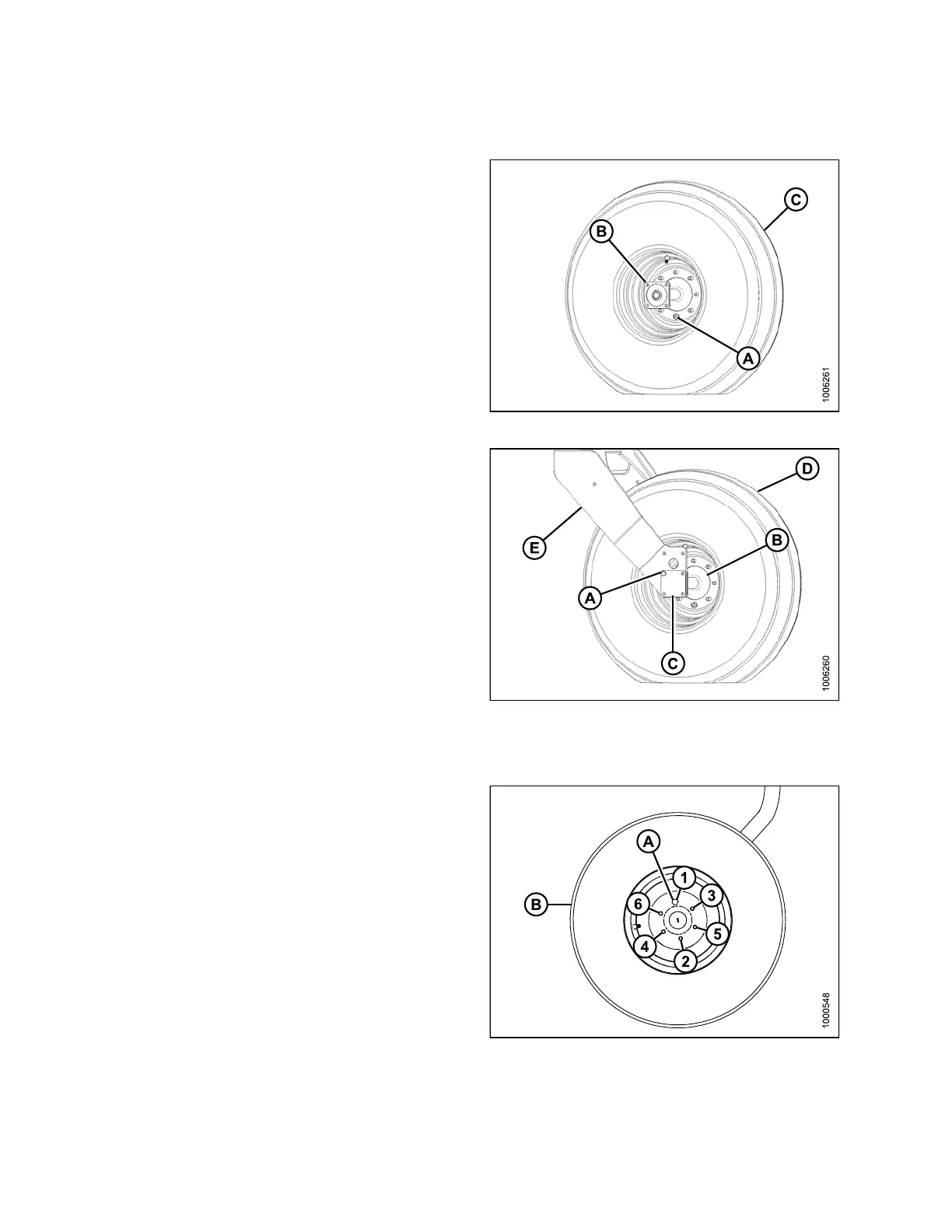

Installing Forked Caster Wheel
1. Position wheel assembly (C) on axle assembly (B) and
install wheel nuts (A).
2. Torque wheel nuts (A). Refer to Tightening Caster
Wheel Nuts, page 306.
Figure 5.2
11: Caster Wheel Assembly
3. Position wheel assembly (D) in forked caster (E).
4. Position cover plates (C) and install eight bolts (A) (four
on each side of caster) to secure axle (B) to caster (E).
Torque bolts to 75–79 ft·lbf (97–107 N·m).
5. Lower caster wheel. Refer to Lowering Caster Wheel
(Formed and Forked), page 309.
Figure 5
.212: Caster W heel Assembly
Removi
ng Formed Caster Wheel
1. Raise caster wheel. Refer to Raising Caster Wheel
(Formed and Forked) , page 308.
2. Remove the six bolts (A) that secure the wheel (B) to
the hub.
3. Remove wheel (B).
Figure 5.213: Caster Wheel Assembly
169890 310 Revision A
