MAINTENANCE AN D SERVICING
Installing Formed Caster Wheel

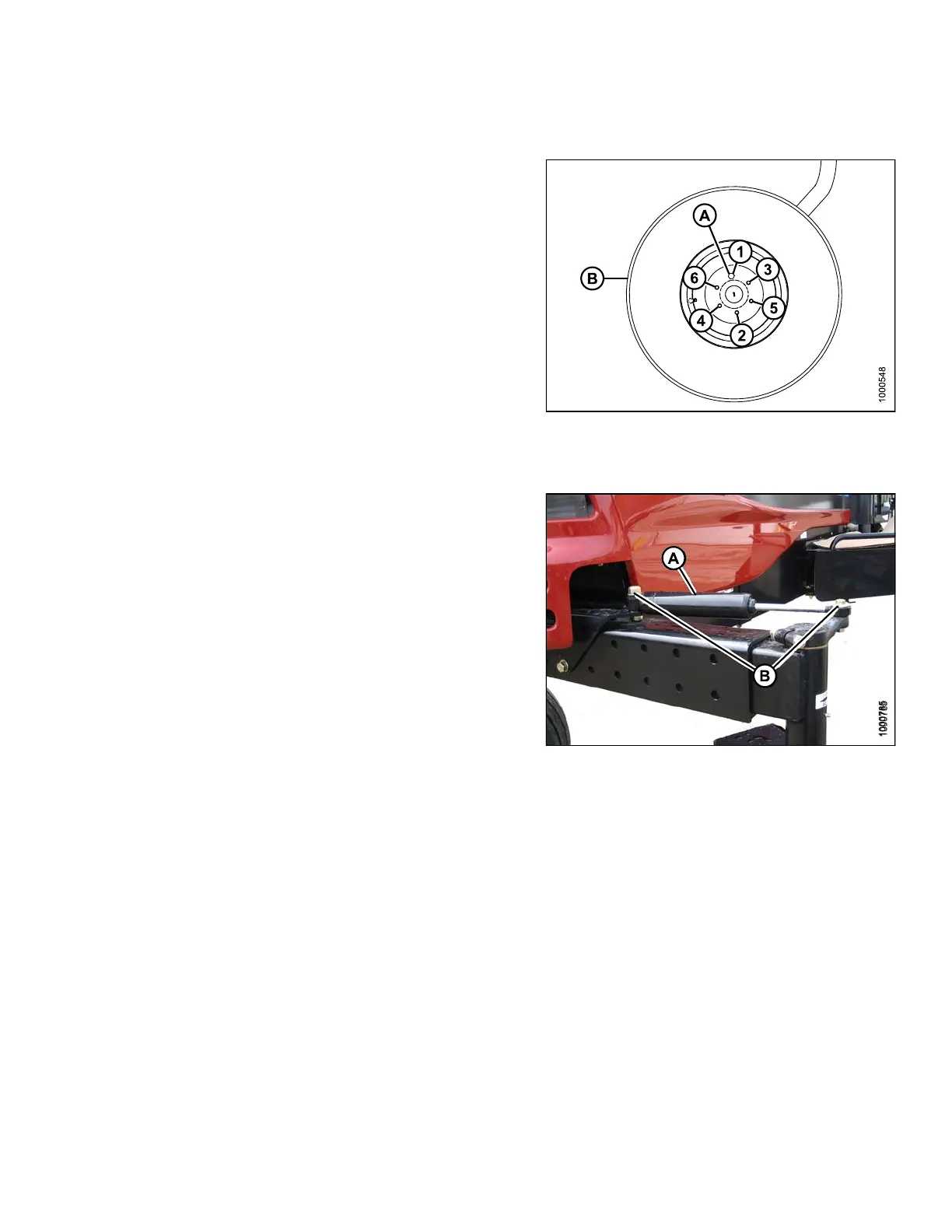

1. Position wheel assembly (B) on hub, and install the six
wheel bolts (A).
2. Torque bolts (A). Refer to Tightening Caster Wheel
Nuts, page 306.
3. Lower caster wheel. Refer to Lowering Caster Wheel
(Formed and Forked), page 309.
Figure 5.2
14: Caster Wheel Assembly
Caster W he
els Anti-Shimmy Shocks (MD #B5346) (if installed)
Each caste
r can be equipped with a fluid-filled anti-shimmy
dampener
(A).
If instal
led, the mounting bolts (B) need to be checked
periodic
ally for security. Refer to 5.7.11 Maintenance
Schedule
, page 313.
• Inboard
bolt shou ld be tigh tened to 100 ft·lbf (135 N·m ).
• O utboar
d bolt should be tightened to 85 ft·lbf (115 N·m).
Figure 5.215: Anti-Shimmy Dampener
169890 311 Revision A
