Measure the deviations
A
A
A
X
Z
S

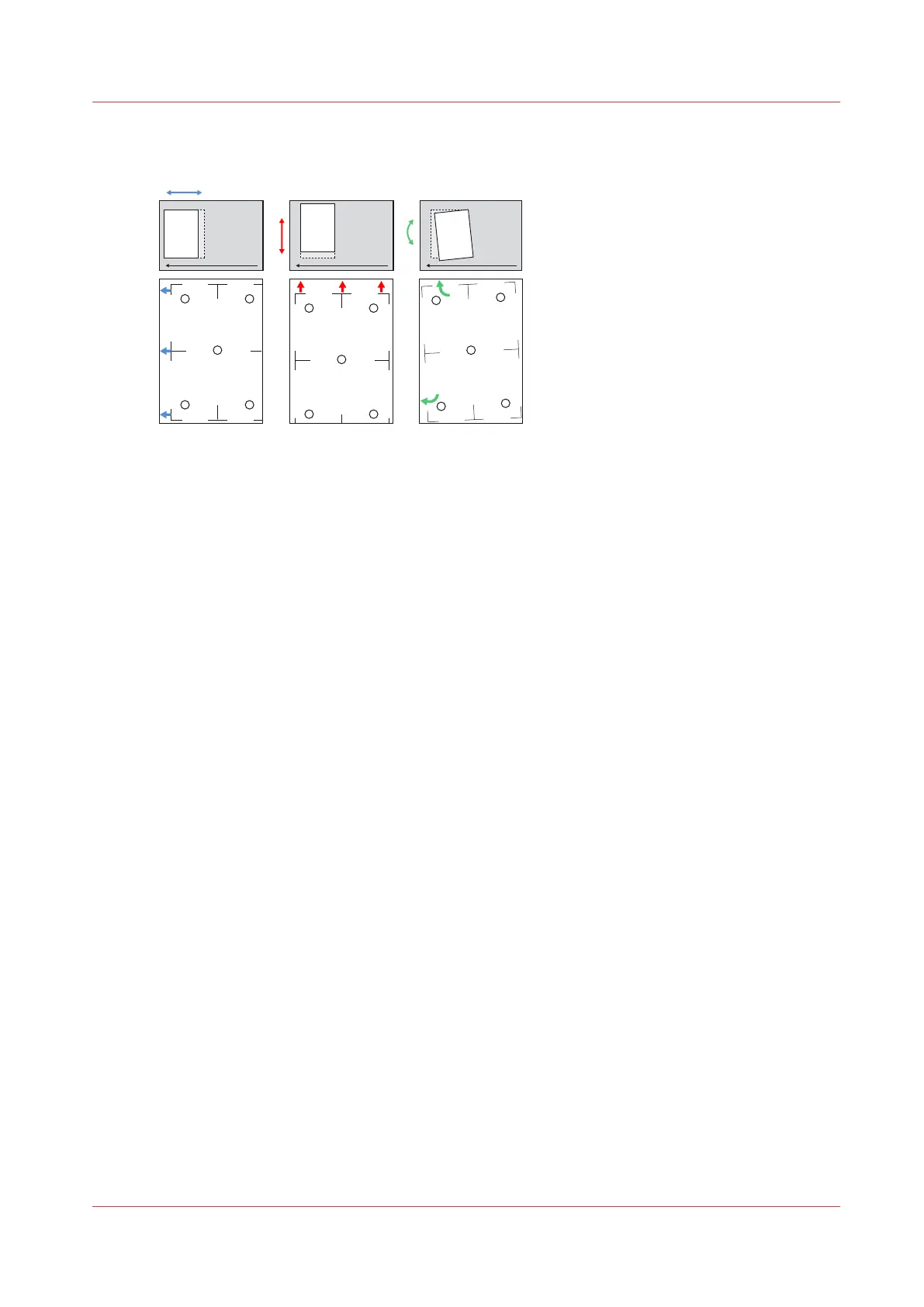

[481] Sheet deviations on the paper path and the print effects on the verification chart (Example for front sheet, A4/
Letter, long-edge feed direction)
1.
Deviation on X coordinate (feed direction)
Measure the distances between left-hand sheet edge and vertical marker lines. Repeat for the
other side (B).
If, at least on one side, the distances are more than 10 mm or less than 10 mm, the media
registration is not correct.
2.
Deviation on Z coordinate (cross-feed direction)
Measure the distances between top sheet edge and horizontal marker lines. Repeat for the
other side (B).
If, at least on one side, the distances are more than 10 mm or less than 10 mm, the media
registration is not correct.
3.
Rotation deviation on S coordinate
Measure the distance from left-hand top corner of the sheet to the most left-hand point of the
horizontal marker line. Align the ruler along the edge of the sheet. Repeat for the other side
(B).
If, at least on one side, the distance is more than 10 mm or less than 10 mm, the media
registration is not correct.
Perform media registration
Chapter 14 - Problem Solving
417
