Parker AC30 series User Manual

7-2 The Graphical Keypad
AC30V series Variable Speed Drive
Overview

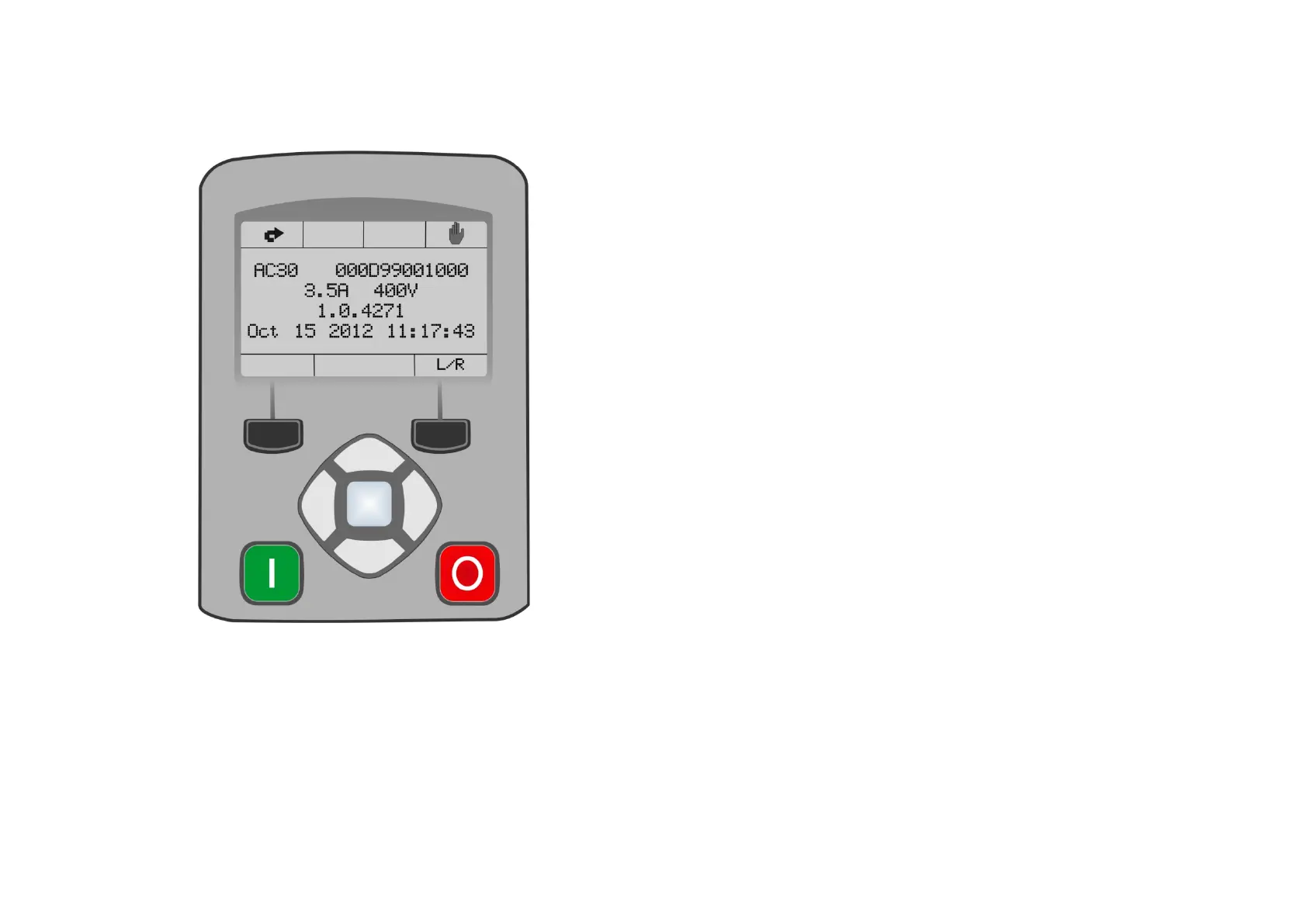

• The top line of the display is used to show the drive status
• The central region of the display shows the selected parameters or navigation menu
• The bottom line of the display indicates the action associated with the soft keys
• The actions of the soft keys are context dependent
• The central navigation and editing keys are referred to as UP, DOWN, LEFT, RIGHT and
OK
• The Run, (green), and Stop, (red), keys are used to start and stop the motor when the
drive is in local control mode.
www.comoso.com

Parker AC30 series Specifications

General

Control Modes	Closed-loop vector
Feedback	Encoder
Operating Temperature	0 to 40°C (32 to 104°F) standard, -20 to 50°C (-4 to 122°F) with derating
Protection	Overcurrent, Overvoltage, Undervoltage
Communication	RS485
