Parker AC30 series User Manual

Menu Organisation 8-2
AC30V series Variable Speed Drive
Menu Descriptions
CONTROL SCREEN
In local sequencing mode the Control Screen menu shows the Local Setpoint, the Seed Feedback and configuration of the action of the Run key
and direction. When the AC30V is not in local sequencing mode this menu shows the operating speed. The contents of the Control Screen can
be modified by the configuration.
SETUP
Parameters that may require modification once the Setup Wizard is complete.
MONITOR
This menu contains parameters commonly used to verify the correct operation of the drive and the process.
FAVOURITES
The Favourites menu contains up to 20 parameters selected for ease of access.
To Add a Parameter to the Favourites Menu

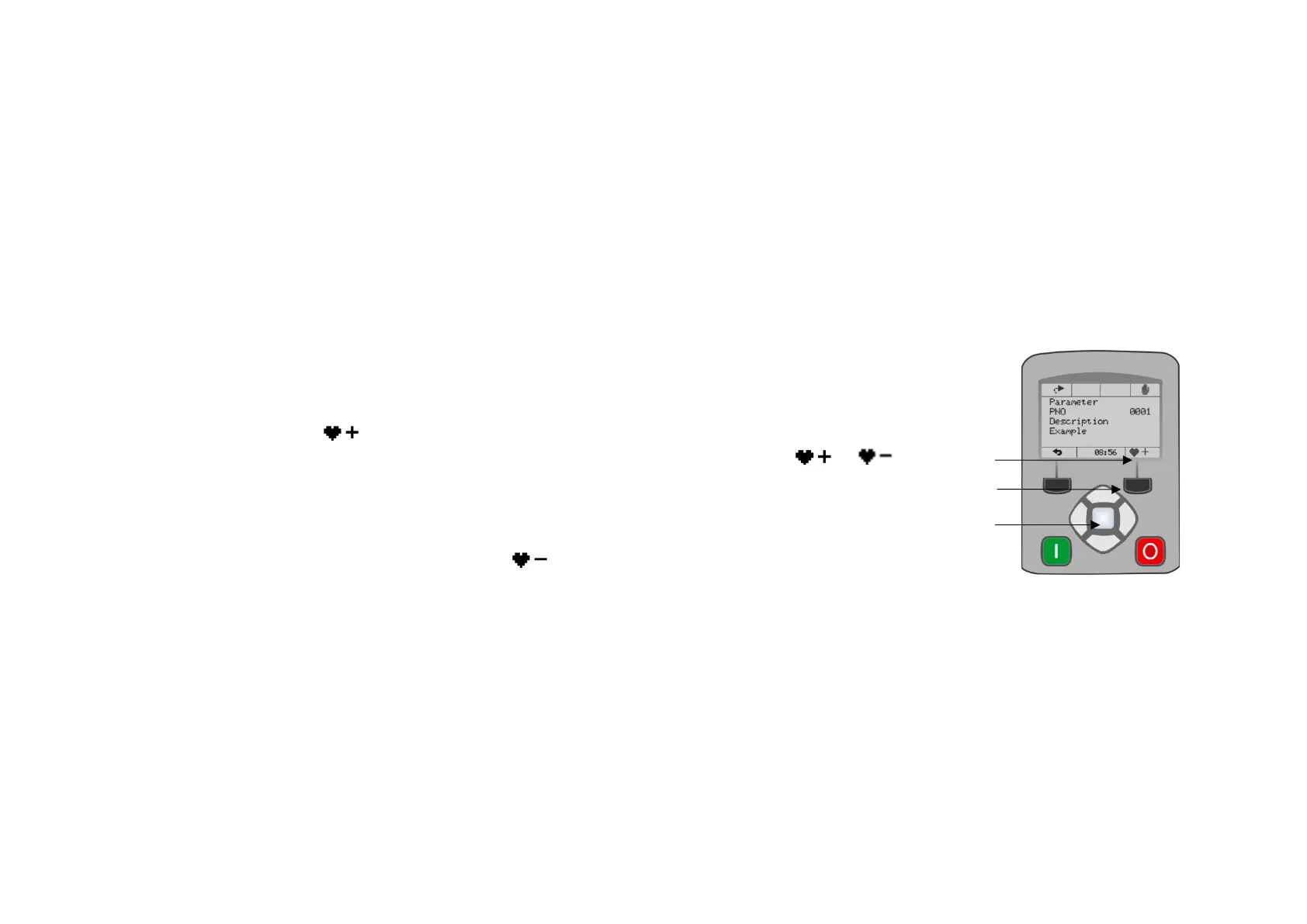

Using the GKP, navigate to the parameter of interest.
Press and hold the OK key until the Attributes screen is shown, (hold for about 2s)
then this appears and press the “Add to Favourites” soft key.
To Remove a Parameter From the Favourites Menu
Using the GKP navigate to the parameter of interest in the Favourites menu.
Press and hold the OK key until the Attributes screen is shown, (hold for about 2s).
Press the “Remove from Favourites” soft key, .
PARAMETERS
A complete collection of all the parameters in the AC30V. This menu is intended for expert use.
or is shown here
Press the right soft key to add to or
remove from Favourites
OK Key
