Parker AC30 series User Manual

Installation 4-24
AC30V Variable Speed Drive

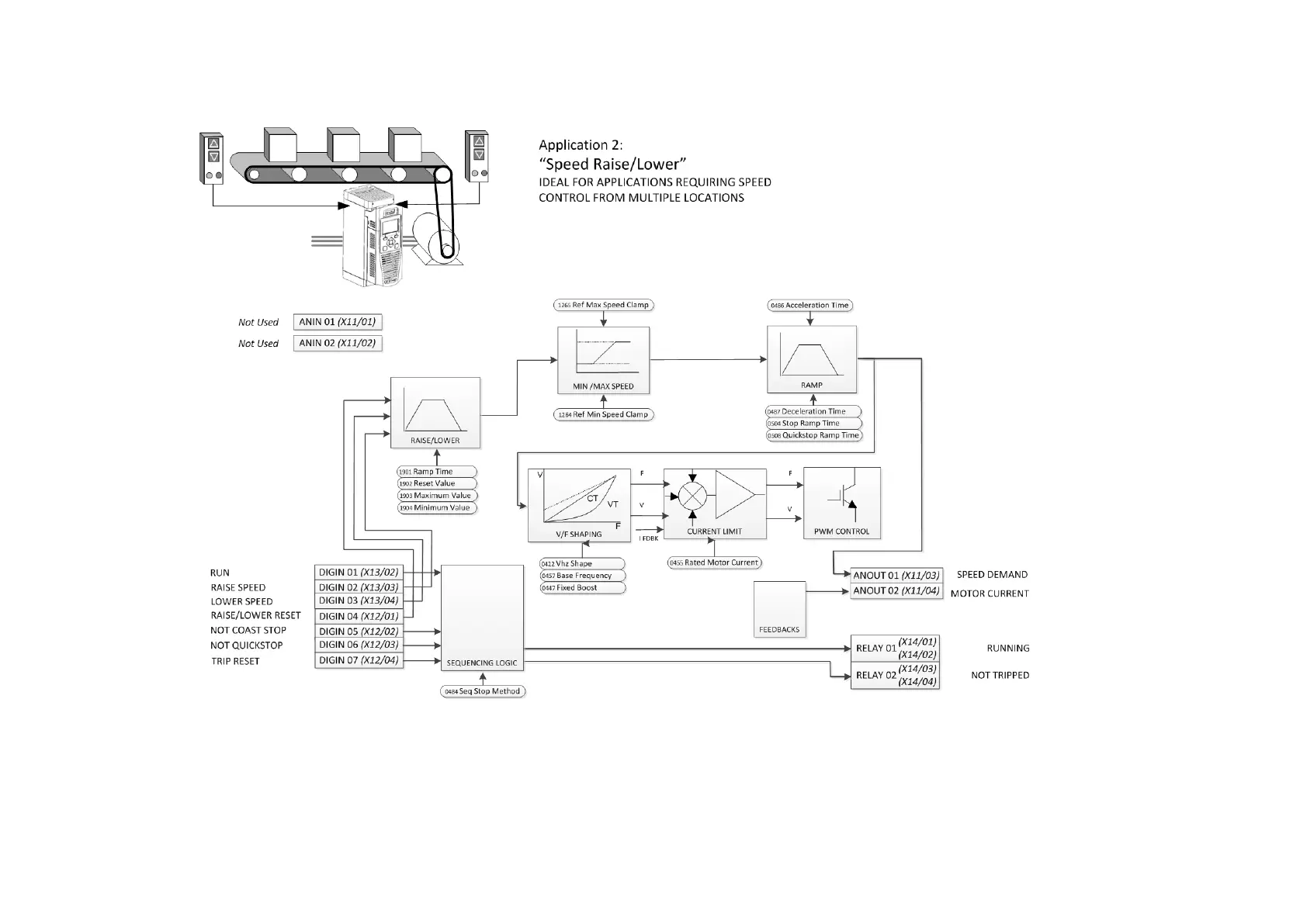

APPLICATION 2: RAISE / LOWER TRIM
Raise/Lower Trim Application
This Application mimics the operation of a motorised potentiometer. Digital inputs allow the setpoint to be increased and decreased between
limits. The limits and ramp rate can be set using the keypad.
The Application is sometimes referred to as Motorised Potentiometer.
www.comoso.com

Parker AC30 series Specifications

General

Control Modes	Closed-loop vector
Feedback	Encoder
Operating Temperature	0 to 40°C (32 to 104°F) standard, -20 to 50°C (-4 to 122°F) with derating
Protection	Overcurrent, Overvoltage, Undervoltage
Communication	RS485
