Parker AC30 series User Manual

4-17 Installation
AC30V Variable Speed Drive

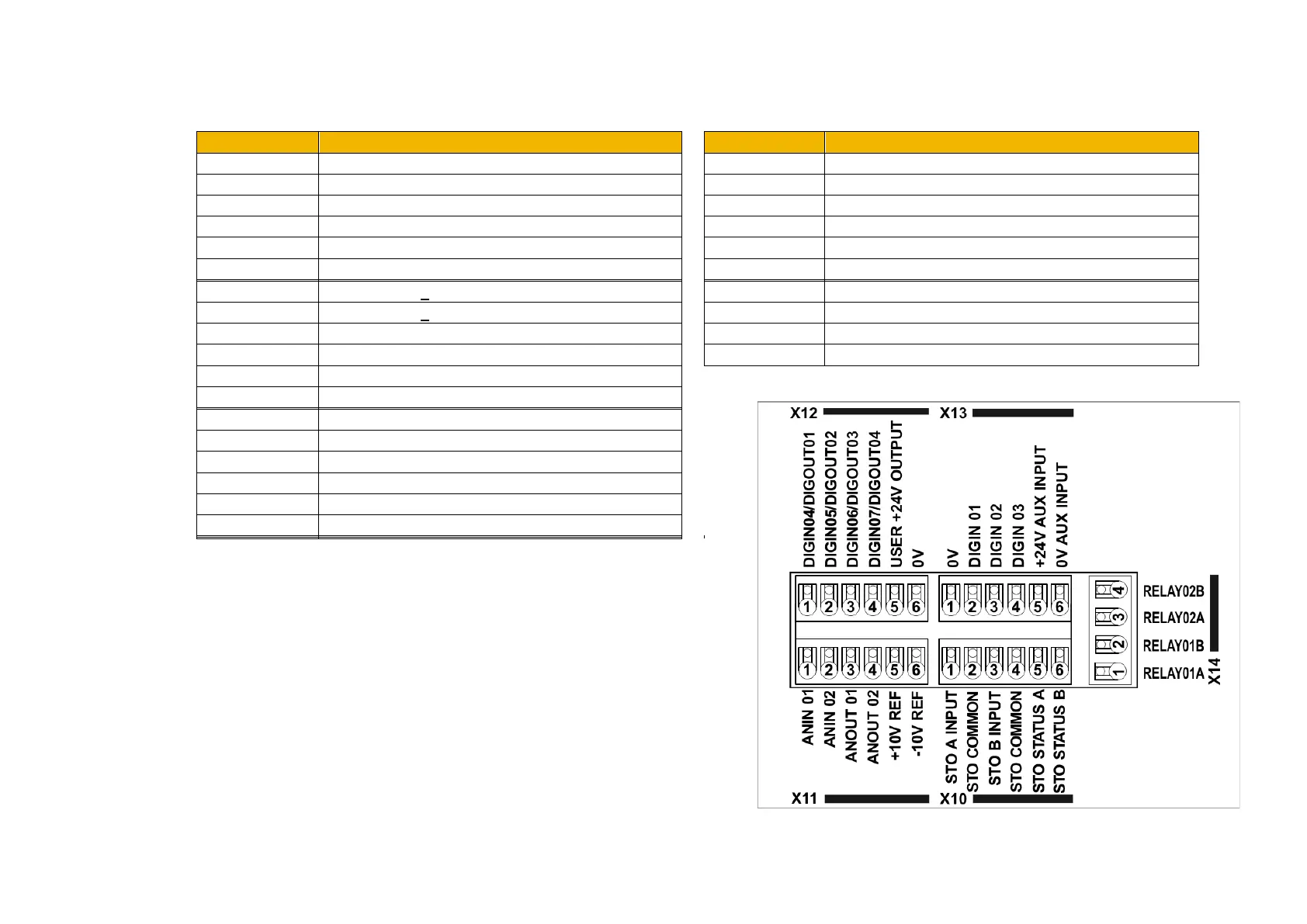

CONTROL WIRING CONNECTIONS
Terminal ID
Function
Terminal ID
Function
X10/01
STO A Input
X13/01 (LH)
0V
X10/02
STO Common
X13/02
DIGIN 1
X10/03
STO B Input
X13/03
DIGIN 2
X10/04
STO Common
X13/04
DIGIN 3
X10/05
STO Status A
X13/05
+24V AUX input
X10/06
STO Status B
X13/06
0V AUX input
X11/01
ANIN 01 (+10V, 0-10V, 0-20mA, 4-20mA)
X14/01 (BOT)
Relay 01 (contact A)
X11/02
ANIN 02 (+10V, 0-10V)
X14/02
Relay 01 (contact B)
X11/03
ANOUT 01 (+10V, 0-10V)
X14/03
Relay 02 (contact A)
X11/04
ANOUT 02 (0-10V, 0-20mA, 4-20mA)
X14/04
Relay 02 (contact B)
X11/05
+10V reference
X11/06
-10V reference
X12/01 (LH)
DIGIN 04 / DIGOUT 01
X12/02
DIGIN 05 / DIGOUT 02
X12/03
DIGIN 06 / DIGOUT 03
X12/04
DIGIN 07 / DIGOUT 04
X12/05
User +24V output
X12/06
0V
Terminal Cable Specification
Solid minimum H05(07)V-U 0.2sqmm.
Solid maximum H05(07)V-U 1.5 sqmm.
Flexible minimum H05(07)V-K 0.2 sqmm.
Flexible maximum H05(07)V-K 1.5 sqmm.
W.wire end Ferrule DIN462228 Pt 1 minimum 0.25 sqmm.
W.wire end Ferrule DIN462228 Pt 1 maximum 1.5 sqmm.
W.plastic collar Ferrule DIN462228 Pt4 minimum 0. 25 sqmm (see note 1)
W.plastic collar Ferrule DIN462228 Pt4 maximum 0.75 sqmm (see note 2).
Note 1: Parker SSD part number CI053612U001 (Davico part No. PET0505)
Note 2: Parker SSD part number CI053612U002 (Davico part No. PET7575).
Control Wiring Layout Diagram
