Parker AC30 series User Manual

Ethernet 12-1
AC30V series Variable Speed Drive
Chapter 12: Ethernet
Introduction
Communications to the AC30 is via an Ethernet port on the Control Module. This allows access to:
• The PDQ and PDD PC programming tools
• The Modbus TCP server (see Appendix A - Modbus TCP)
• The HTTP server (see section below)
• Application access to the Ethernet
The Ethernet port operates at 10/100 MHz, half/full duplex. Internet Protocol version 4 (IPv4) is supported. Connection is recommended via an
Ethernet switch.
Connecting to a Network

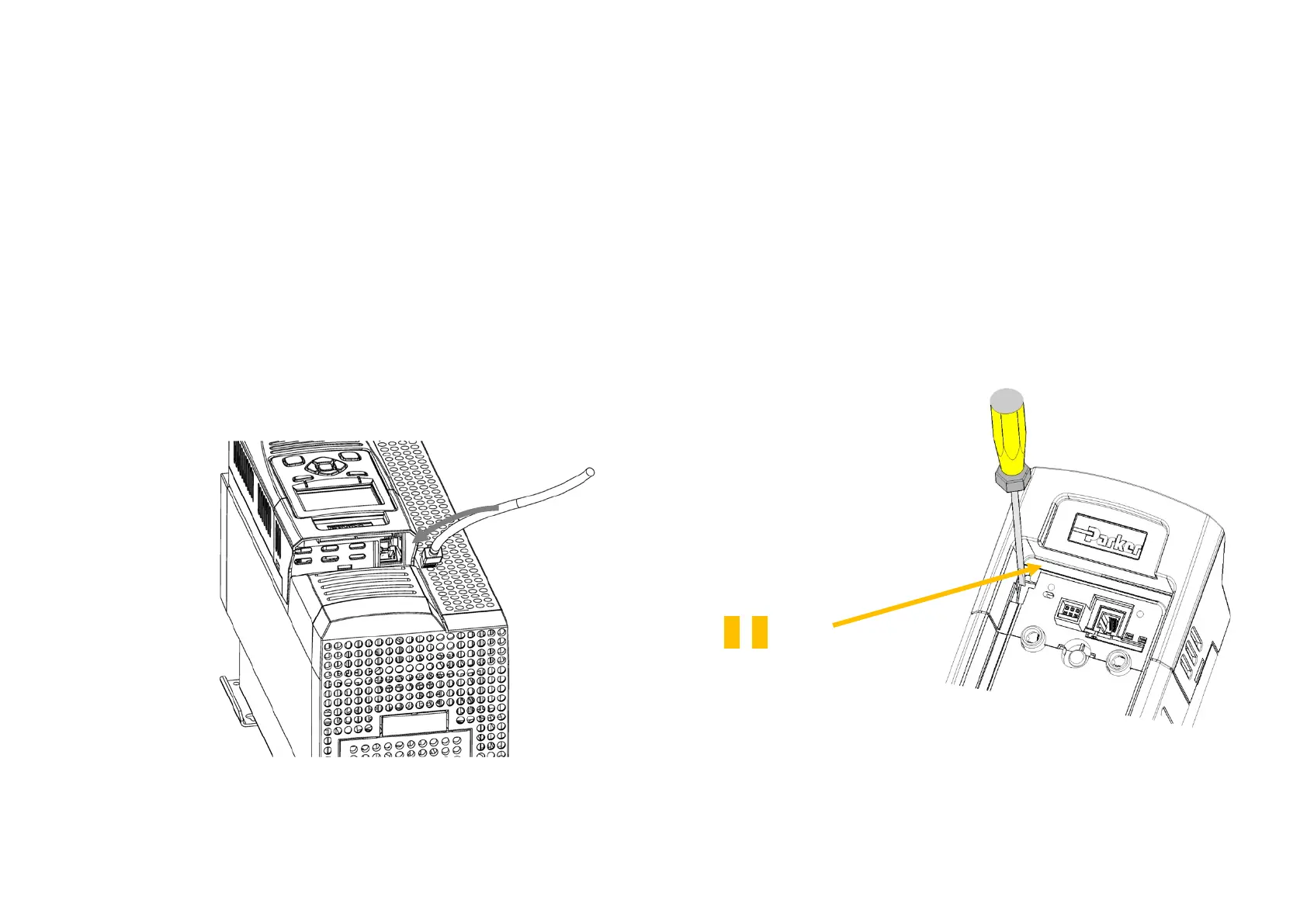

Insert the Ethernet cable as shown below:
RECOMMENDED CABLE
We recommend using CAT5e screened or CAT6 screened.
Ethernet LEDs Meaning:
Activity Link
To remove the cable first remove the GKP and
then insert a screwdriver to release the catch on
the Ethernet clip.
www.comoso.com

Parker AC30 series Specifications

General

Control Modes	Closed-loop vector
Feedback	Encoder
Operating Temperature	0 to 40°C (32 to 104°F) standard, -20 to 50°C (-4 to 122°F) with derating
Protection	Overcurrent, Overvoltage, Undervoltage
Communication	RS485
