Parker AC30 series User Manual

4-5 Installation
AC30V Variable Speed Drive
FRAMES F, G
Through panel mounting a drive in a cubicle allows you to use a smaller cubicle because much of the heat generated by the drive is dissipated
outside the cubicle.

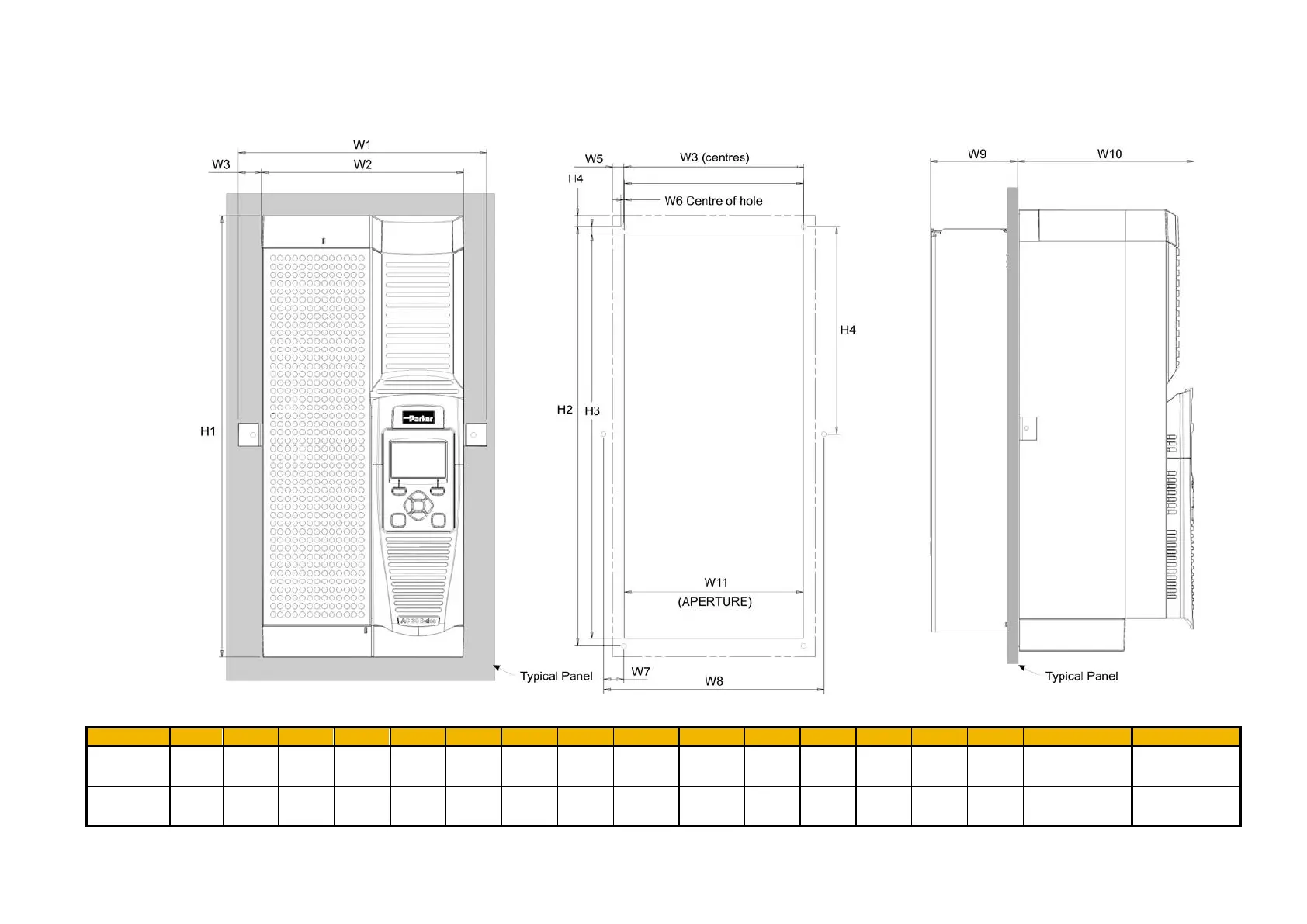

Figure 4-4 Mechanical Dimensions for Through Panel Frames F & G AC30V Drive
Models
W1
W2
W3
W4
W5
W6
W7
W8
W9
W10
W11
H1
H2
H3
H4
Fixings
Mounting Kits
Frame F
200
(7.87)
150
(5.90)
25
(0.98)
129
(5.07)
12
(0.47)
0.1
(0.003)
20.5
(0.80)
170
(6.7)
72
(2.83)
181
(7.12)
127
(5.0)
381
(15.0)
359
(14.13)
347
(13.66)
147.5
(5.80)
6 x 4.5mm holes
M4 fixings
LA502670
Frame G
270
(10.63)
220
(8.66)
25
(0.98)
195.8
(7.70)
12.1
(0.47)
0.4
(0.015)
22
(0.86)
240
(9.44)
95
(3.74)
192
(7.55)
195
(7.67)
480
(18.89)
455.8
(17.94)
440
(17.32)
225.8
(8.88)
6 x 5.5mm holes
M5 fixings
LA502471
All dimensions are in millimetres (inches)
www.comoso.com

Parker AC30 series Specifications

General

Control Modes	Closed-loop vector
Feedback	Encoder
Operating Temperature	0 to 40°C (32 to 104°F) standard, -20 to 50°C (-4 to 122°F) with derating
Protection	Overcurrent, Overvoltage, Undervoltage
Communication	RS485
