Parker AC30 series User Manual

9-14 Setup Wizard
AC30V series Variable Speed Drive
FIND DRIVE

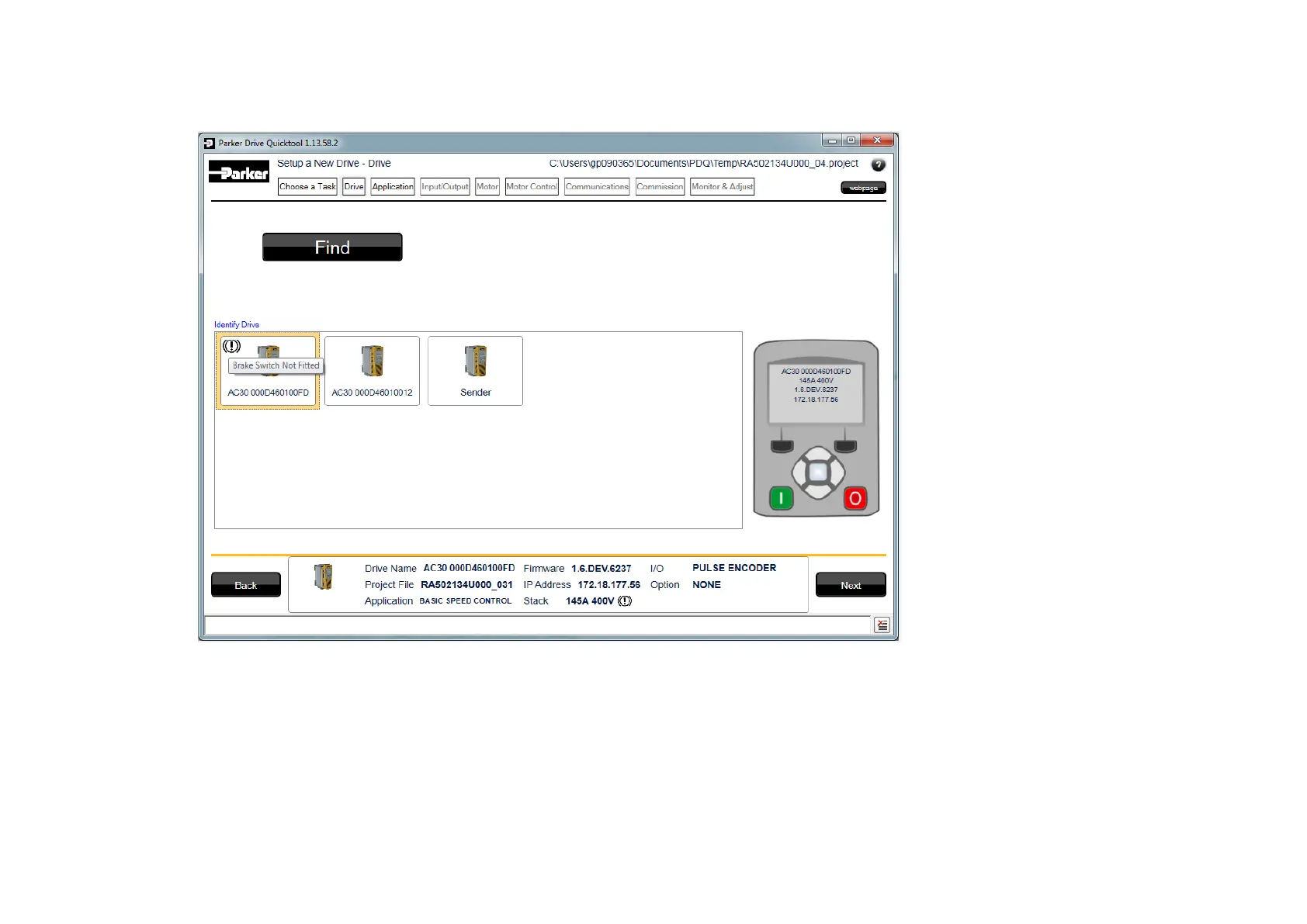

Figure 9-5 Automatic Drive detection
The wizard will automatically detect all AC30V Drives that are visible to the PC via it’s Ethernet connections. This normally takes 10 seconds,
during which time the user interface will go grey and will not respond to you. Once the Drive detection is complete, find your Drive in the list and
click on it with the mouse. Information about the selected Drive will be displayed in the status area at the bottom of the screen. Ensure you have
selected the correct Drive before continuing. If Drive Brake Switch is not fitted it will be indicted by the symbol as shown in Figure 9-5.
Note: The selected drive’s name will match that shown on the GKP home screen.
Click on the “Next” button to begin Commissioning this Drive.
www.comoso.com

Parker AC30 series Specifications

General

Control Modes	Closed-loop vector
Feedback	Encoder
Operating Temperature	0 to 40°C (32 to 104°F) standard, -20 to 50°C (-4 to 122°F) with derating
Protection	Overcurrent, Overvoltage, Undervoltage
Communication	RS485
