Parker AC30 series - Control Module Removal

Installation 4-16
AC30V Variable Speed Drive
Control Module Removal
WARNING Isolate supply before plugging or unplugging control unit to the power stack.

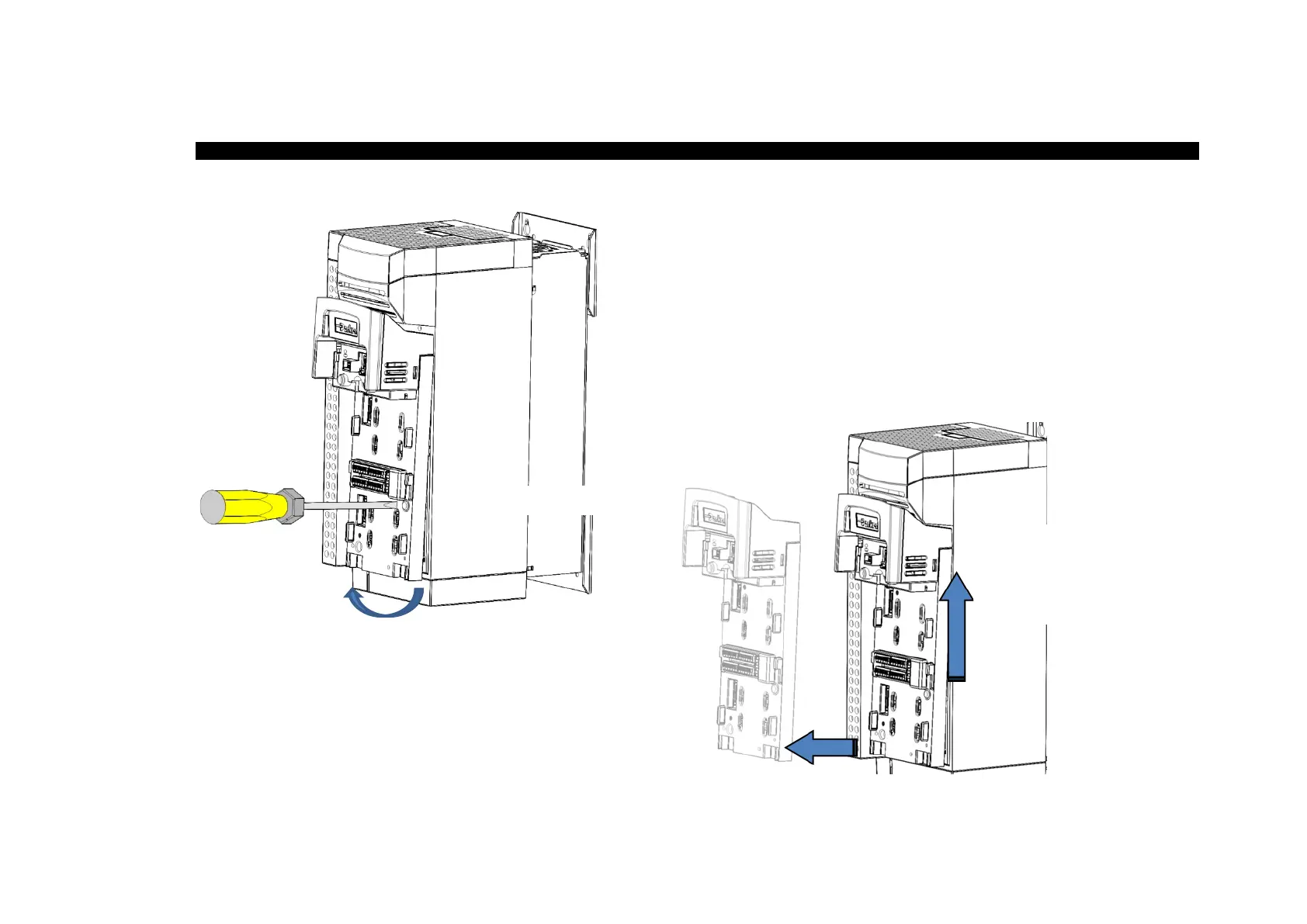

1. Unscrew captive screw.
2. Lift lower edge of assembly.
4. Lift assembly away from Power Stack
3.
Slide assembly
upwards, as far as
possible, to unlatch
from unit.
