Parker AC30 series User Manual

Installation 4-14
AC30V Variable Speed Drive

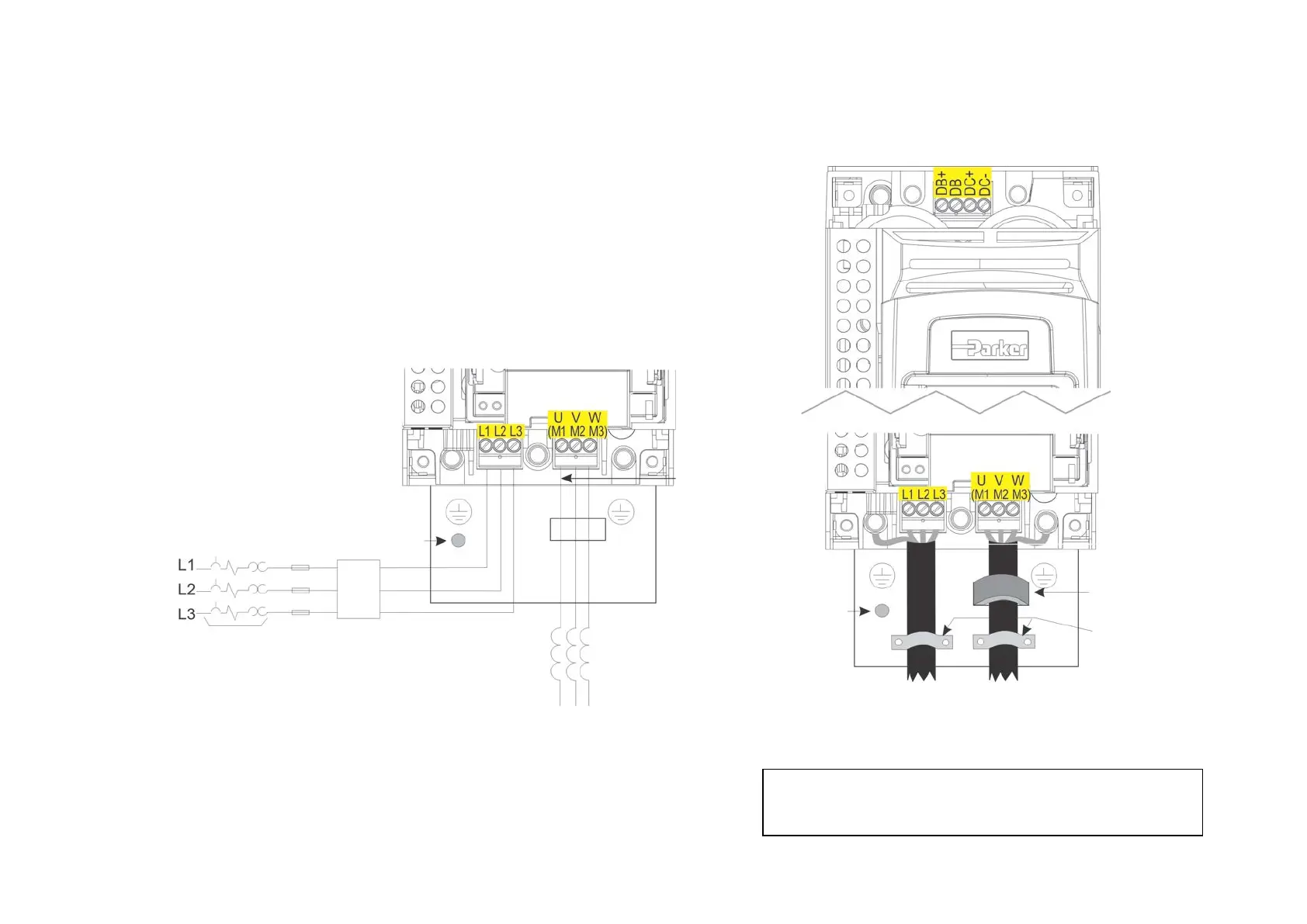

POWER WIRING CONNECTIONS
Feed the power supply and motor cables into the drive under the cable clamps using the correct cable entries, and connect to the power
terminals. Tighten all terminals to the correct tightening torque; refer to the Terminal Tightening Torques table (page 4-31).
Earth
Stud
Mains in
Terminals
Motor
Terminals
Ferrite core option
To meet C2 EMC
Standard
Cable Clamps
Earth
Earth
Earth
Stud
Earth
Earth
fuses
Circuit
Breaker
Filter
(optional)
AC Motor
Chokes.
Only on long
cable runs >50m
Note: Cable clamps and earthing brackets are only
supplied with a C2EMC Filter kit (page 4-12 for part
numbers), see page C-11 for motor termination details.
www.comoso.com

Parker AC30 series Specifications

General

Control Modes	Closed-loop vector
Feedback	Encoder
Operating Temperature	0 to 40°C (32 to 104°F) standard, -20 to 50°C (-4 to 122°F) with derating
Protection	Overcurrent, Overvoltage, Undervoltage
Communication	RS485
