4-3 Installation
AC30V Variable Speed Drive
CUBICLE MOUNTING DETAILS (ALL FRAME SIZES)

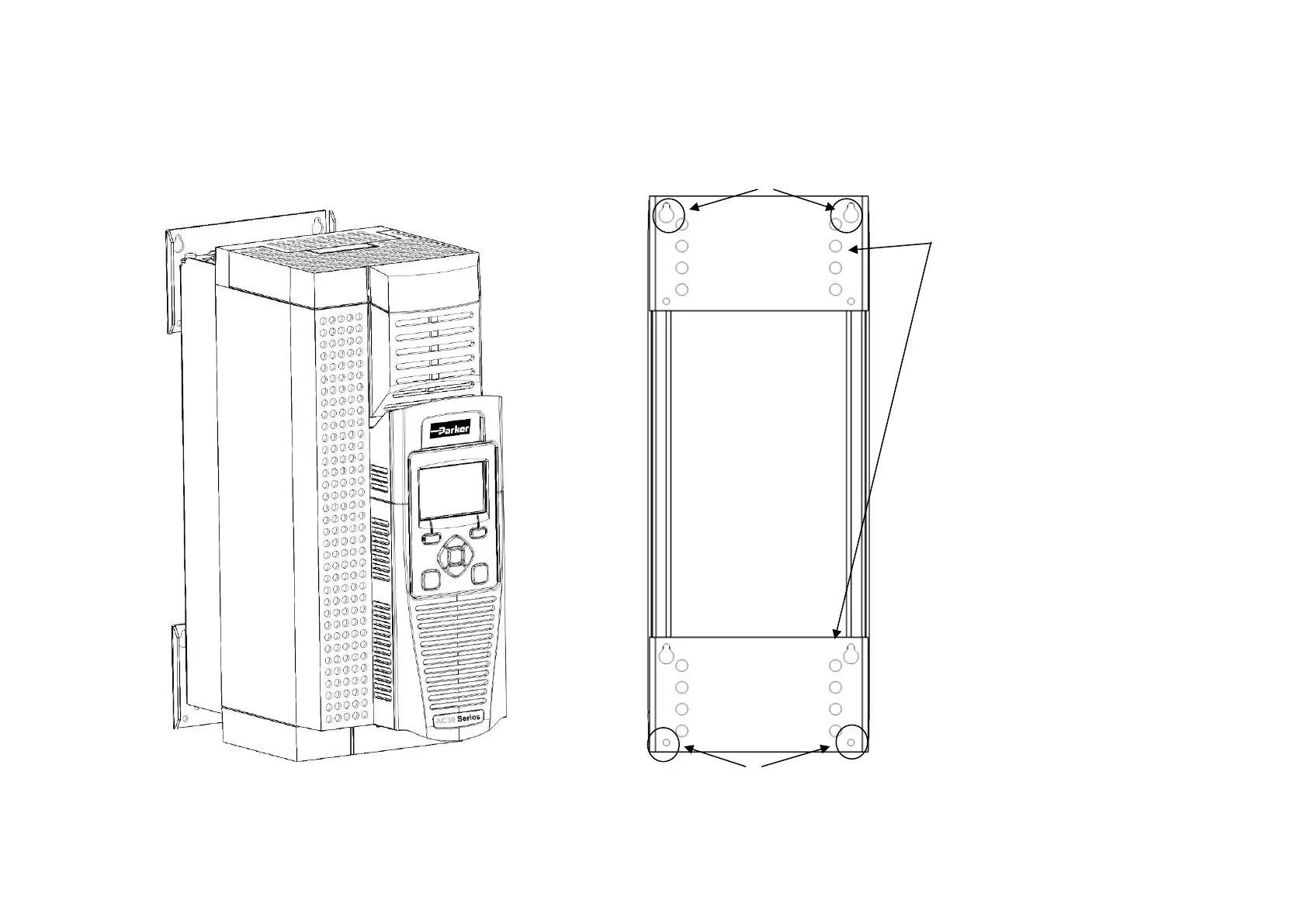

Mounting Brackets
Rear view showing fixing holes for
cubicle mount
The brackets can be moved
up/down by using the alternative
holes, which are set at 15mm
intervals.
Frames H & J
Have a single mounting plate which
cannot be moved.
For hole and fixing dimensions see
previous pages.
For top and bottom cover removal
see page 4-9 on.
