Parker AC30 series - Select Motor

9-18 Setup Wizard
AC30V series Variable Speed Drive
SELECT MOTOR

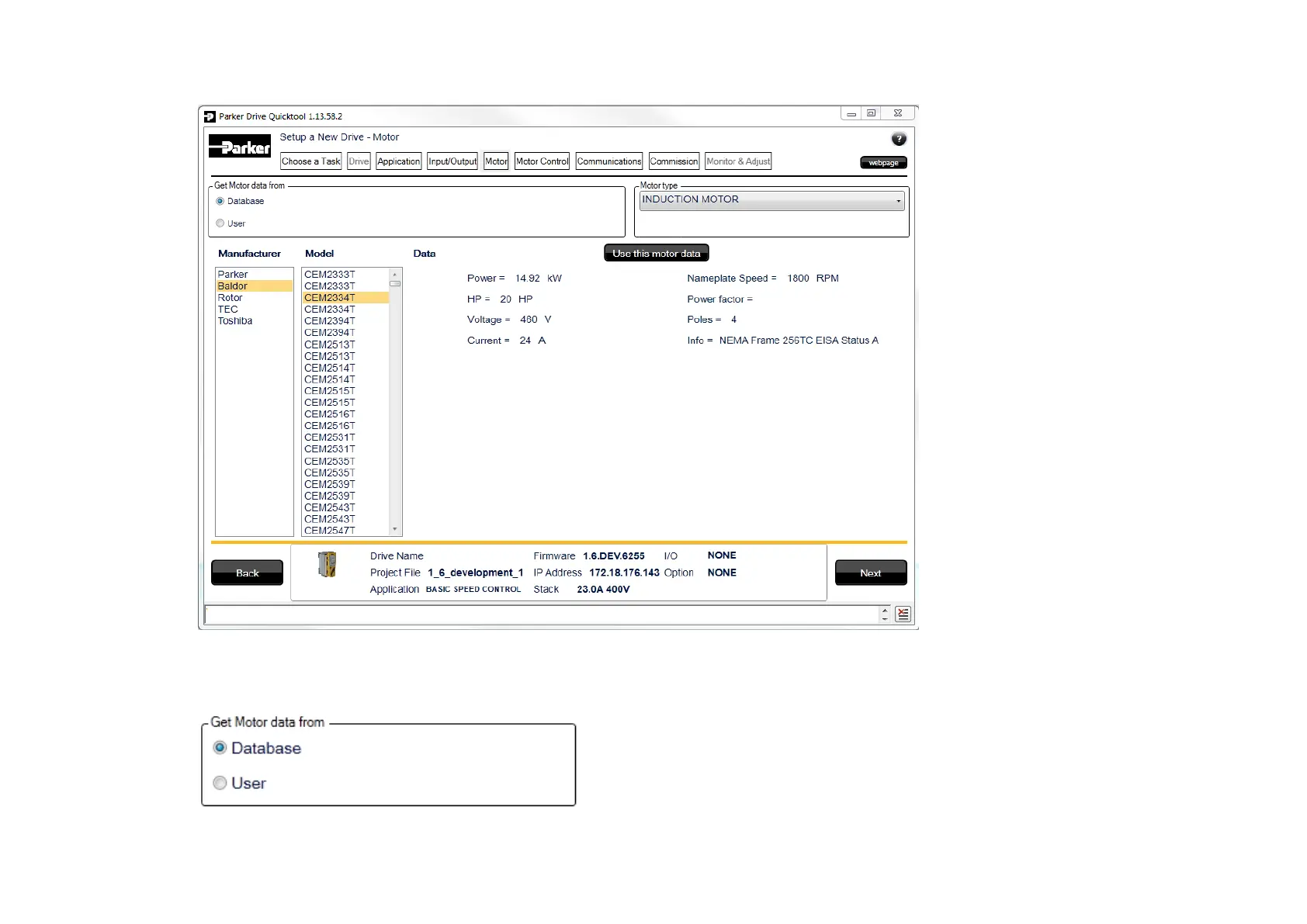

Figure 9-8 Motor selection from database
Motor data may either be selected form the built in motor database or entered by the engineer as a custom motor.
The Motor page has two options at the top of the page that need to be selected.
Figure 9-9 Motor data selection
