Setup Wizard 9-19
AC30V series Variable Speed Drive
“Database” is selected by default and the screen will show the motor database selector.

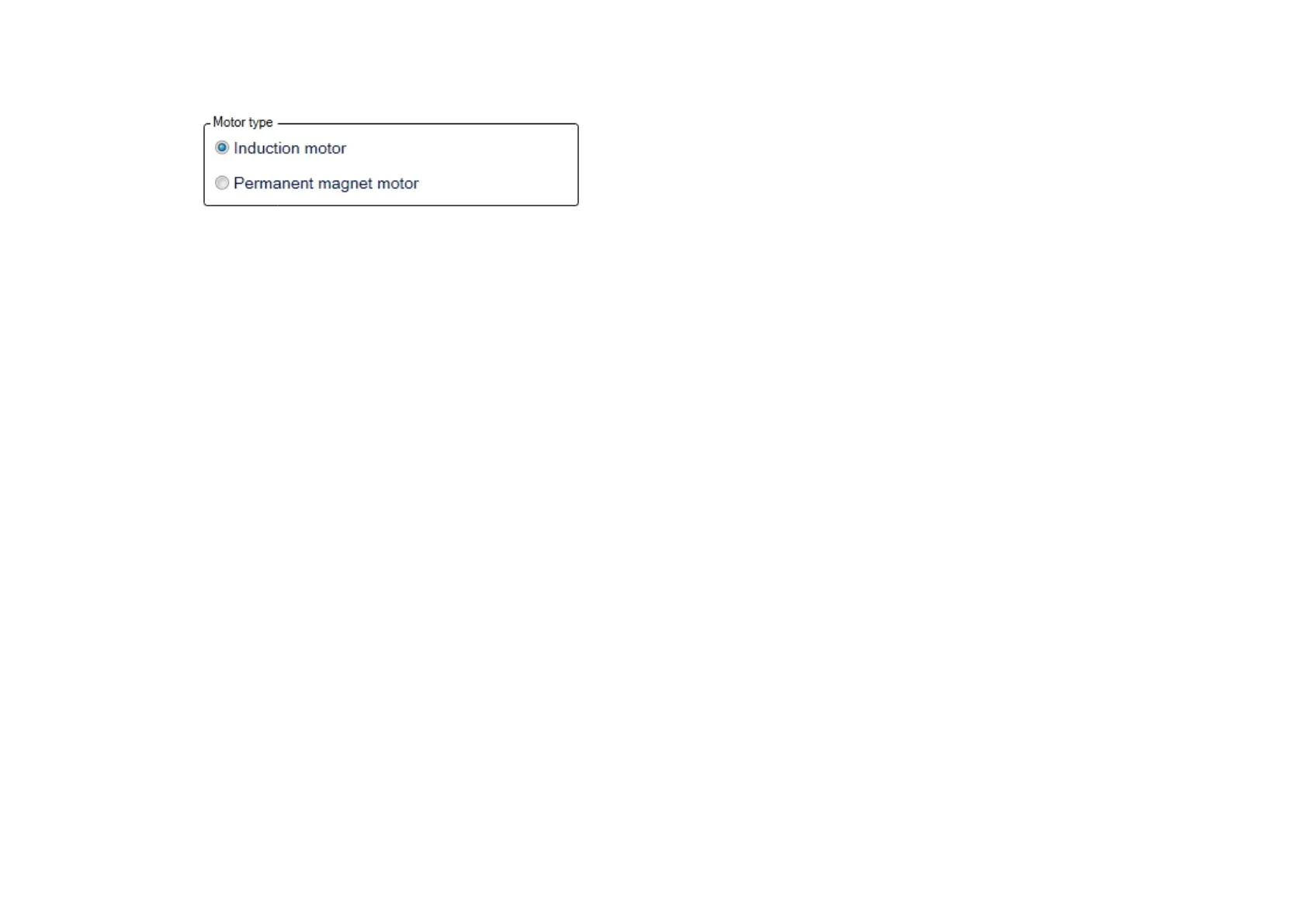

Figure 9-10 Motor type selection
“Induction Motor” is selected by default. This selection will filter the motor database to the selected type. It also displays only the appropriate
“User” settings if a custom motor is required.
Motor database
At the left hand side is a list of manufacturers whose motors are in the database. Select the appropriate manufacturer from the list. If your motor’s
manufacturer is not shown in the list then you will need to provide custom “User” data instead.
Once the manufacturer is selected, the list of motor models will be displayed. The model list is sorted by the manufacturers part number. Select
your motor from the list. The motors data and image will then be displayed so you can ensure you have the correct one selected.
