Parker AC30 series User Manual

12-4 Ethernet
AC30V series Variable Speed Drive
Typical Wiring Configurations

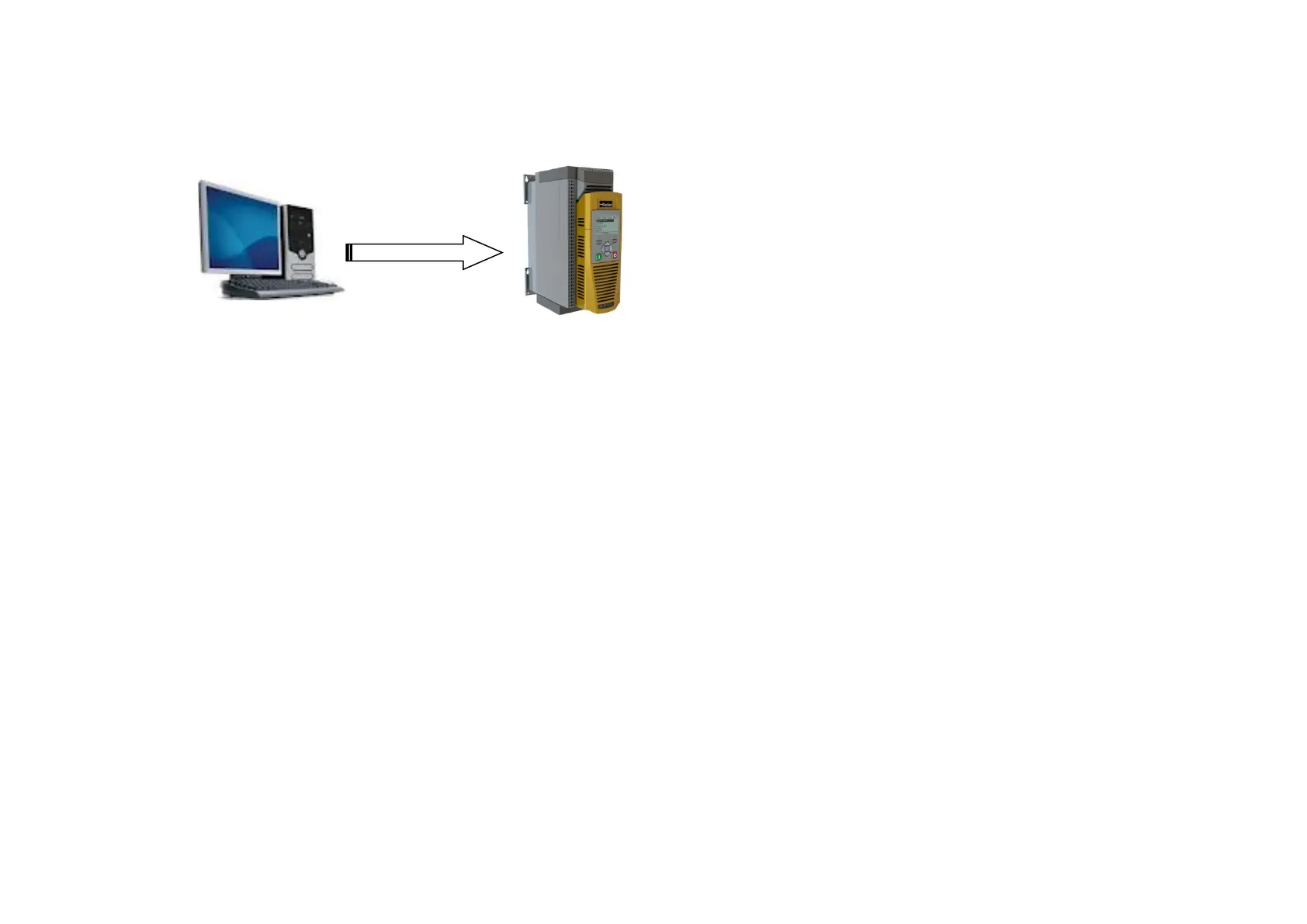

Point to Point Connection
When connecting a PC directly to an AC30 drive either:
• Both sides use local-link addresses 169.254.*.* (recommended) , or
• Both sides are set with a fixed IP address (each must be different and on the same subnet)
When using local-link addresses the parameter 0930 Auto IP must be set to TRUE (see the section Automatically Assigning an IP Address using
Auto-IP). Normally the PC is already configured to allow for an Automatic Private IP address. However if problems are encountered check the
PC’s network settings (see the section 12-11).
Note: It may take some PCs up to 2 minutes to obtain an Automatic private IP address when the Ethernet cable is plugged in.
