Parker AC30 series User Manual

Ethernet 12-11
AC30V series Variable Speed Drive
CHANGING THE PC ETHERNET SETTINGS
Normally the PC Ethernet adapter is set to obtain an IP address automatically either from a DHCP server or using an automatic private IP
address (Auto-IP). The adapter settings may be checked / modified as follows:
For Windows XP under Control Panel  Network Connections
For Windows 7 under Control Panel  Network And Sharing Center  Change adapter settings

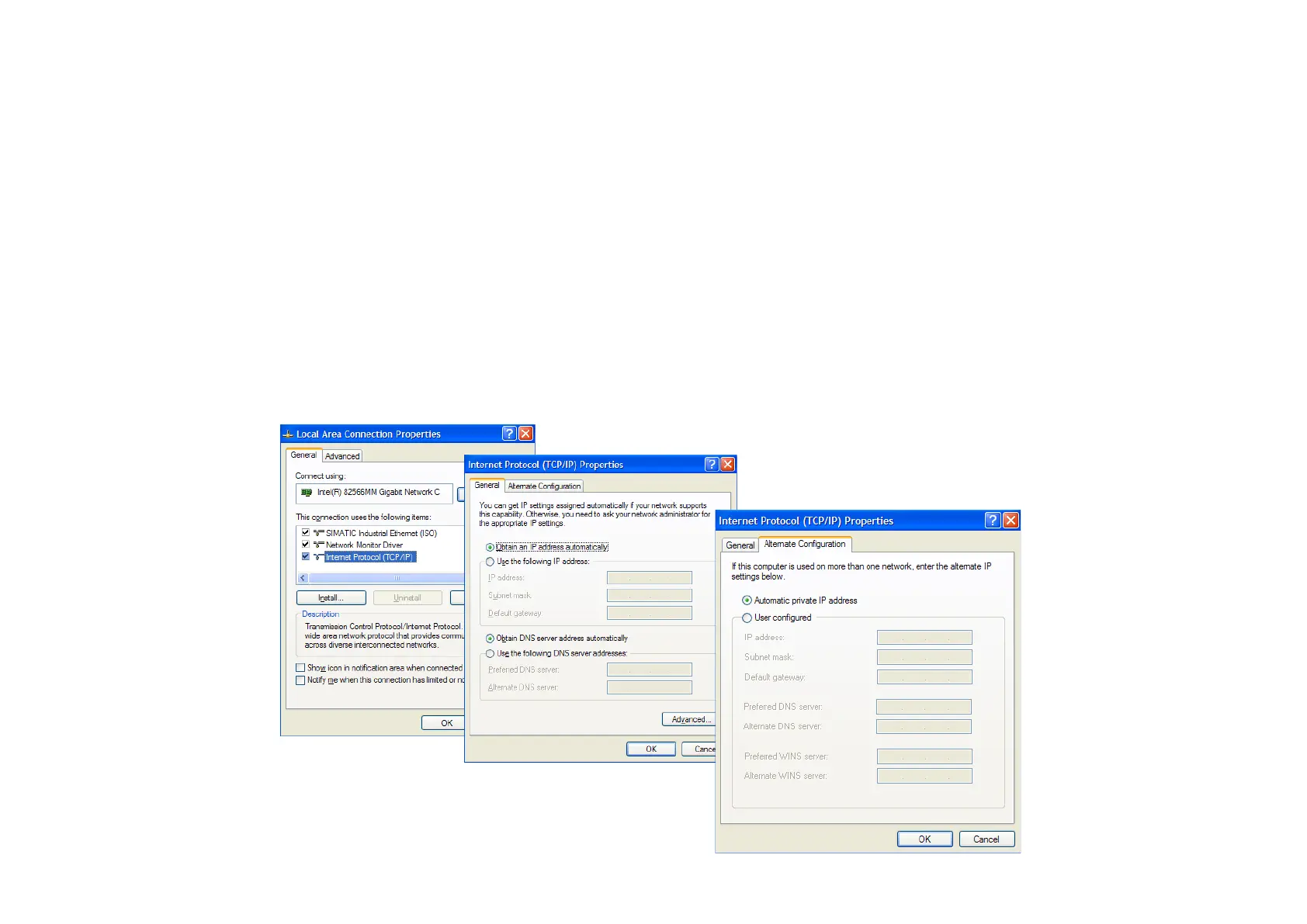

Right-click on the required network adapter and choose Properties, then double-click on Internet Protocol (TCP/IP) (Windows XP) or Internet
Protocol Version 4 (TCP/IPv4) (Windows 7).
To use a fixed IP address make sure Use the following Ip address under the General tab is chosen and enter the required IP address, subnet
mask and default gateway.
To use DHCP or Auto-IP make sure Obtain IP address automatically under the General tab is selected and under the Alternate
Configuration tab that Automatic private IP address is selected.
www.comoso.com

Parker AC30 series Specifications

General

Control Modes	Closed-loop vector
Feedback	Encoder
Operating Temperature	0 to 40°C (32 to 104°F) standard, -20 to 50°C (-4 to 122°F) with derating
Protection	Overcurrent, Overvoltage, Undervoltage
Communication	RS485
