Installation 4-18
AC30V Variable Speed Drive
Wiring Diagrams
THE DEFAULT APPLICATION
The drive is supplied with 5 Applications, Application 0 to Application 4. Each Application recalls a pre-programmed structure of internal links
when it is loaded.
• Application 0 is the factory default application, providing for basic speed control
• Application 1 supplies speed control using a manual or auto setpoint
• Application 2 is a set-up providing speed control with Raise/Lower Trim
• Application 3 supplies speed control using preset speeds
• Application 4 PID control
IMPORTANT:
Refer to Chapter 9: Setup Wizard – to reset the drive to factory default values which are suitable for most applications.
APPLICATION DESCRIPTION
Control Wiring for Applications
The large Application Diagrams on the following pages show the full wiring for push-button starting. The other diagrams show the full wiring for
single wire starting.
When you load an Application, the input and output parameters shown in these diagrams default to the settings shown. For alternative user-
settings refer to the Chapter 9 “Setup Wizard".
Local Control Wiring
This is the simplest installation. Every new drive will operate in Local Control when first powered-up. The
keypad is used to start and stop the drive.

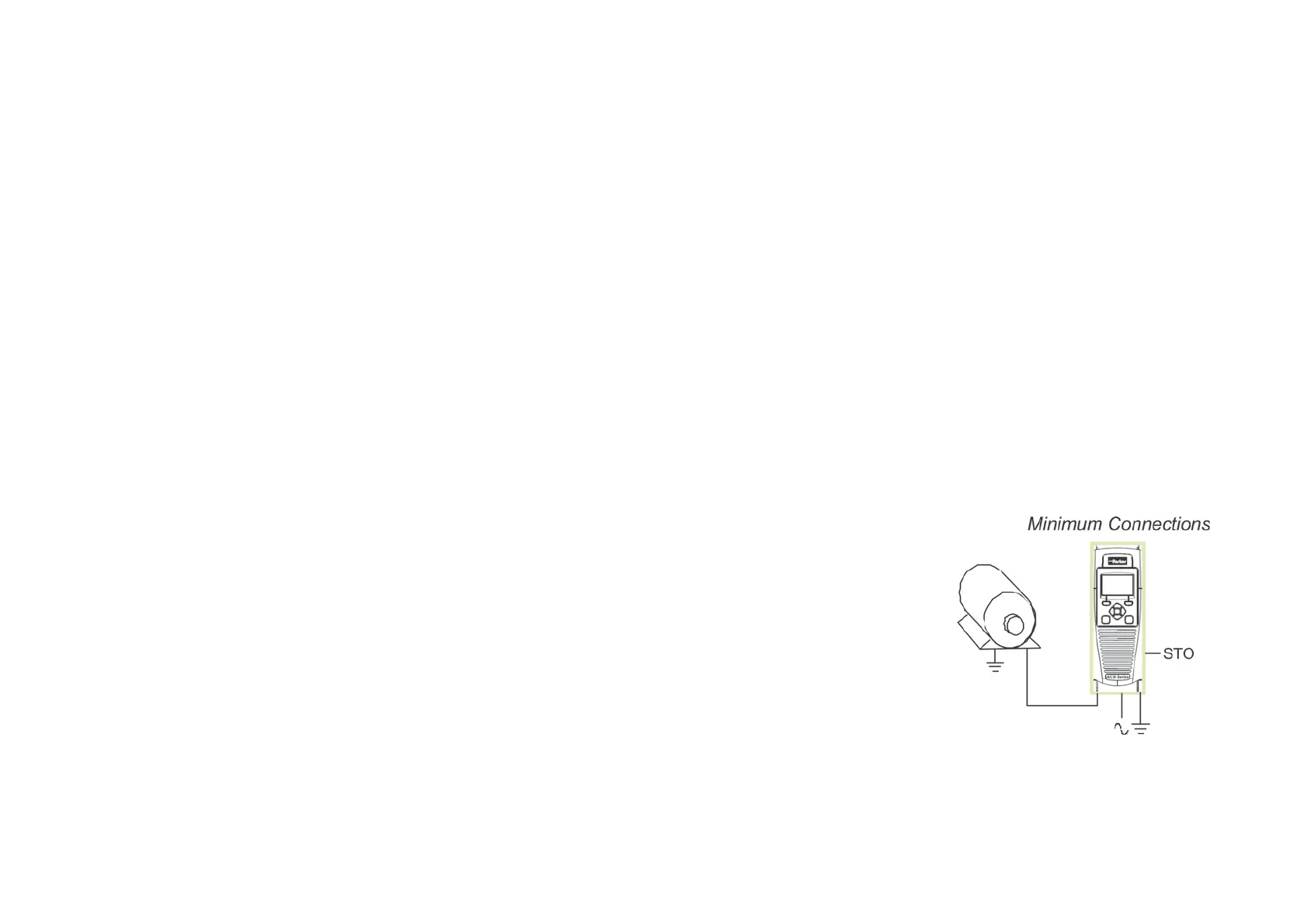

Refer to the Connection Diagram and install the:
• STO (factory fitted)
• Motor cable
• Supply cable
• Follow the earthing/grounding and screening advice
Refer to Chapter 9 "Setup Wizard.
Remote Control Wiring
If operating in Remote Control you will use your control panel to start and stop the drive, via a speed
potentiometer and switches or push-buttons.
Your wiring of the control terminals will be governed by the Application you use: refer to the various Applications you can select and the
appropriate control wiring. Application 0 is the default Application.
