Parker AC30 series User Manual

Installation 4-6
AC30V Variable Speed Drive
FRAME H
Through panel mounting a drive in a cubicle allows you to use a smaller cubicle because much of the heat generated by the drive is dissipated
outside the cubicle.

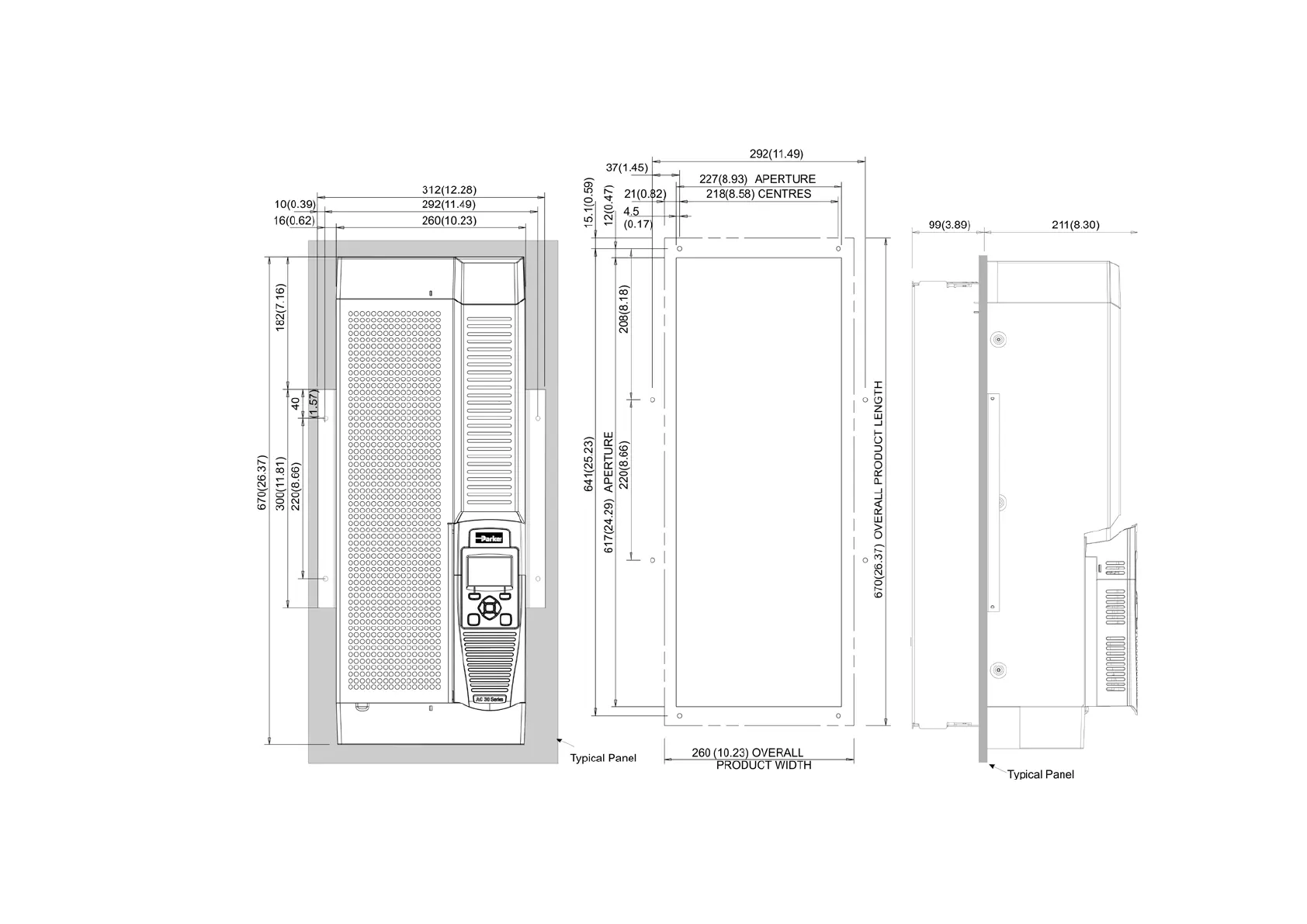

Figure 4-5 Mechanical Dimensions for Through Panel Frame H AC30V Drive
All dimensions are in millimetres (inches)
Fixings: 8 x 6.5mm holes M6 fixings, refer to panel mounting kit part number LA502472
www.comoso.com

Parker AC30 series Specifications

General

Control Modes	Closed-loop vector
Feedback	Encoder
Operating Temperature	0 to 40°C (32 to 104°F) standard, -20 to 50°C (-4 to 122°F) with derating
Protection	Overcurrent, Overvoltage, Undervoltage
Communication	RS485
